Remove/Install Circulation Pump In Left Wheel Arch For Low-Temperature Circuit - AR09.41-P-6933MNI
Engine 177 in model 290

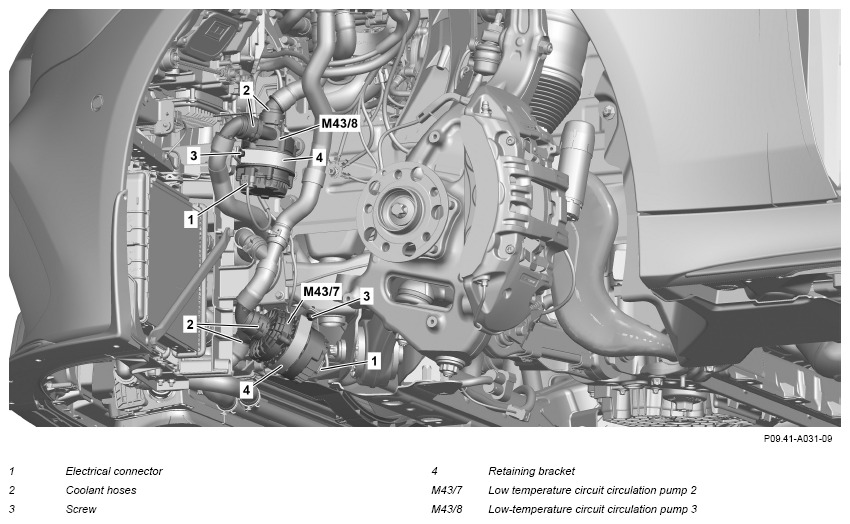

Fig 1: Low-Temperature Circuit Circulation Pumps In Left Wheel Arch Components Location - Engine 177 In Model 290
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain coolant from low-temperature circuit. | AR09.41-P-6834MNI | |
| 2 | Release front part of front left fender liner. | AR88.10-P-1301FR | |
| 3 | Remove coolant hoses (2) from circulation pump 2 (M43/7) or circulation pump 3 (M43/8) and seal openings with protective covers. | AR20.20-P-7441-01RQ | |
| Fig 2 | |||
| 4 | Release and disconnect electrical connector (1) at circulation pump 2 (M43/7) or circulation pump 3 (M43/8). | ||
| 5 | Unscrew screw (3) from retaining bracket (4) for circulation pump 2 (M43/7) or circulation pump 3 (M43/8). | *BA20.10-P-1007-01ZA | |
| 6 | Remove retaining bracket (4) from circulation pump 2 (M43/7) or circulation pump 3 (M43/8). | ||
| 7 | Remove circulation pump 2 (M43/7) or circulation pump 3 (M43/8) downwards. | ||
| 8 | Install in the reverse order. |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA20.10-P-1007-01ZA | Nut/screw, low-temperature circuit pump/switchover valve retaining bracket to holder | Nm | 8 |
