Remove/Install Right Heat Shield On Right Turbocharger - AR09.40-P-6027-00MNI

Engine 177 in model 290

TURBOCHARGER

Number Designation Engine 177
BA09.40-P-1007-01ZA Bolt, side heat shield to cylinder head cover Nm 9
TURBOCHARGER

Number Designation Engine 177
BA09.40-P-1008-01ZA Bolt, rear heat shield to bracket Nm 9

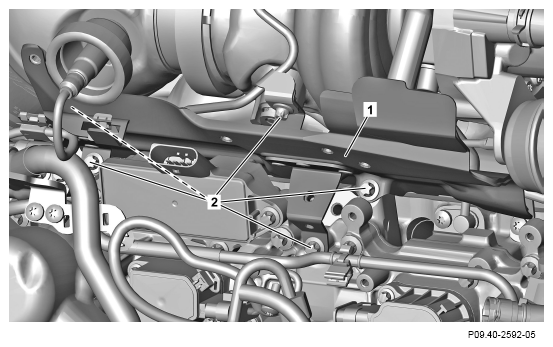

  1. Remove screw/bolts (2) TORQUE SPECIFICATIONTORQUE SPECIFICATION .
  2. Remove heat shield (1) upwards.
  3. Install in the reverse order.
    G16557359Courtesy of MERCEDES-BENZ USA
