Remove/Install Left Heat Shield On Left Turbocharger - AR09.40-P-6026-01MNI

Engine 177 in model 290

TURBOCHARGER

Number Designation Engine 177
BA09.40-P-1007-01ZA Bolt, side heat shield to cylinder head cover Nm 9
  1. Remove screw/bolts (2) TORQUE SPECIFICATION .
  2. Remove heat shield (1) upwards.
  3. Install in the reverse order.

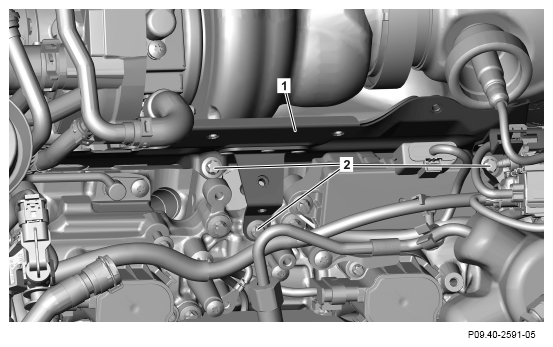

    G16557352Courtesy of MERCEDES-BENZ USA
