Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800FR
Model 257, 290

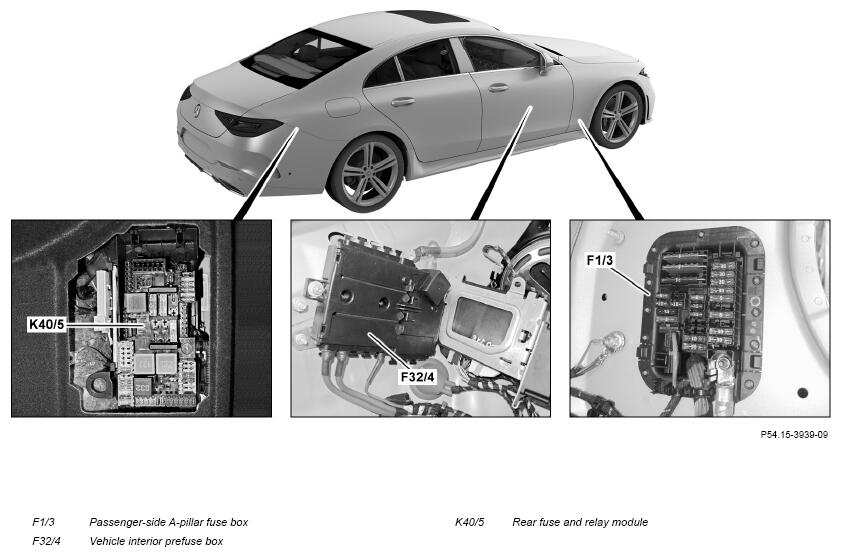

Shown on model 257.3

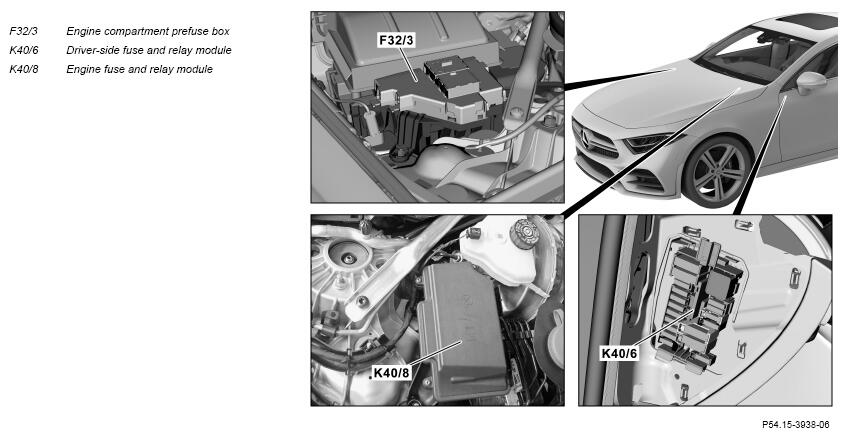

Shown on model 257

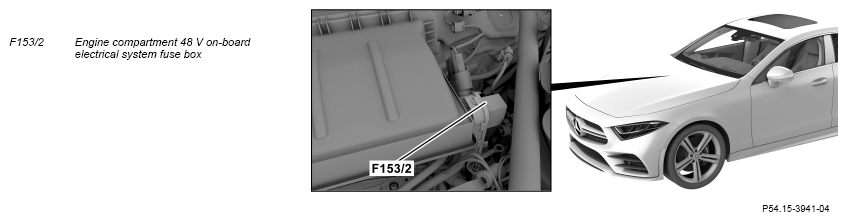

With code B01 (48V technology), shown on model 257
| Assignment of passenger-side A-pillar fuse box | F1/3 | GF54.15-P-1256-48FR | |
| Fuse assignment of pre-fuse box in engine compartment | F32/3 | GF54.15-P-1256-25FR | |
| Fuse assignment on interior pre-fuse box | F32/4 | GF54.15-P-1256-26FR | |
| Fuse assignment of fuse box for 48 V on-board electrical system in engine compartment | Model 257, 290 with code B01 (48V technology) F153/2 |
GF54.15-P-1256-46FR | |
| Assignment of rear fuse and relay module | K40/5 | GF54.15-P-1256-30FR | |
| Assignment of driver-side fuse and relay module | K40/6 | GF54.15-P-1256-49FR | |
| Assignment of engine fuse and relay module | K40/8 | GF54.15-P-1256-32FR |
