Multifunction Steering Wheel, Basic Function - GF82.90-P-2005A
Model All (4xWD)
Model All (CAR)

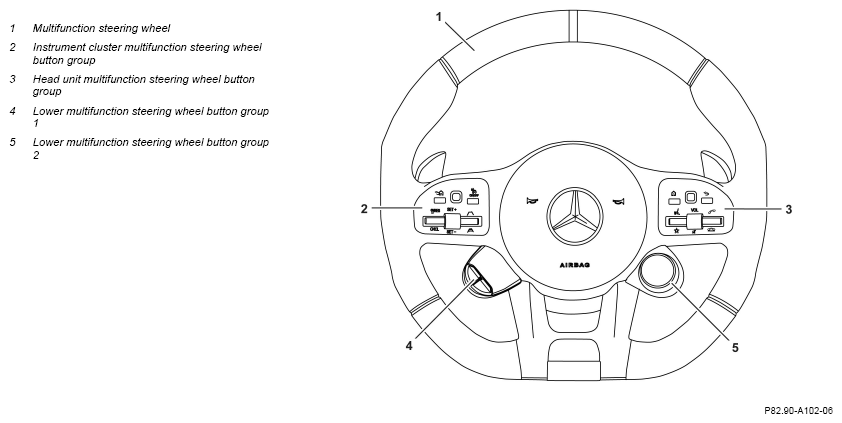

Example illustration of control elements on multifunction steering wheel
Overview
This document contains information on:
- General
- Function
General
The multifunction steering wheel (1) is a component of the vehicle's steering. It is used primarily to change the direction of the vehicle. In addition, a variety of functions can be operated using control elements (2 to 5) on the multifunction steering wheel.
Function
Control elements of various button groups and the steering wheel gearshift buttons are located on the multifunction steering wheel (1). A variety of functions can be operated using the control elements. The description of the individual control elements is given in the detailed information listed below.
The on-board computer is operated using the cockpit display and is controlled using the finger navigation pad in the instrument cluster multifunction steering wheel button group (2).
The multimedia system is operated using the central display and is controlled using the finger navigation pad in the head unit multifunction steering wheel button group (3).
Both finger navigation pads have acoustic operation feedback that can be adjusted in the multimedia system.
A steering wheel electronics system is integrated into the multifunction steering wheel. This is connected to the network architecture of the vehicle.
The steering wheel electronics digitalize the operation signals from the multifunction steering wheel (1) control elements (2 to 5) and provide them to other vehicle systems.
| Further basic functions | |||
| Steering column tube module control unit, basic function | GF54.21-P-9893A | ||
| Steering wheel electronics control unit, basic function | GF82.90-P-9890A | ||
| Detailed information | |||
| Multifunction steering wheel, detailed information | Model 118, 167 up to model year 2023 Model 177, 247 up to model year 2022 Model 243 up to model year 2024 Model 293 |
GF82.90-P-2010A | |
| Model 118, 167 as of model year 2023 Model 177, 247 as of model year 2022 Model 192, 206, 214, 223, 232, 236, 254, 294, 295, 296, 297 Model 213, 238, 257, 290 as of model year 2021 Model 243 as of model year 2024 |
GF82.90-P-2010B | ||
| Model all (4xWD) | GF82.90-P-2010C | ||
| Component descriptions | |||
| Hand detection sensor, component description | Model 223 | GF82.90-P-0007A | |
| Model 232 | GF82.90-P-0007F | ||
| Model 295 | GF82.90-P-0007E | ||
| Model 297 | GF82.90-P-0007D | ||
| Model 296 | GF82.90-P-0007G | ||
| Model 214 | GF82.90-P-0007K | ||
| Model 118, 177, 247 as of model year 2023 |
GF82.90-P-0007L | ||
| Model 167 as of model year 2023 |
GF82.90-P-0007M | ||
| Model 294 | GF82.90-P-0007N | ||
| Multifunction steering wheel button groups, component description | Model 223 | GF82.90-P-9894A | |
| Model 232 | GF82.90-P-9894F | ||
| Model 243 | GF82.90-P-9894B | ||
| Model 295 | GF82.90-P-9894E | ||
| Model 297 | GF82.90-P-9894D | ||
| Model 296 | GF82.90-P-9894G | ||
| Model 254 | GF82.90-P-9894H | ||
| Model 214 | GF82.90-P-9894K | ||
| Model 118, 177, 247 as of model year 2023 |
GF82.90-P-9894L | ||
| Model 167 as of model year 2023 |
GF82.90-P-9894M | ||
| Model 294 | GF82.90-P-9894N |
