Side Longitudinal Member Paneling Partial Installation - Ar63.30-P-1040-03FR

Model 257, 290

The following operation steps are shown on the most comprehensive repair on the left side of the vehicle on model 257. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Courtesy of MERCEDES-BENZ USA

1. Install longitudinal member paneling (1), fit and fix in place.
2. Drill rivet holes with a diameter of 6.7 mm in longitudinal member paneling (1) (areas A, B).
3. Countersink rivet holes (area B).
4. Remove longitudinal member paneling (1).
5. Drill rivet holes in crossmember (1) and deburr on body on both sides.
6. Remove drilling chips.
7. Coat insides of riveted joints with zinc dust paint.

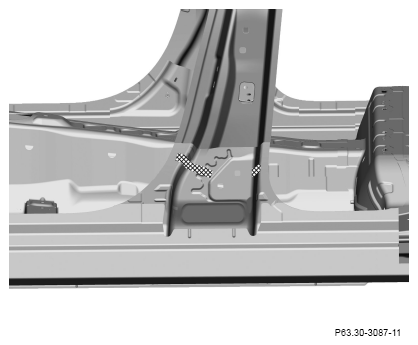

8. Apply sealant to foam parts in crosshatched areas.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

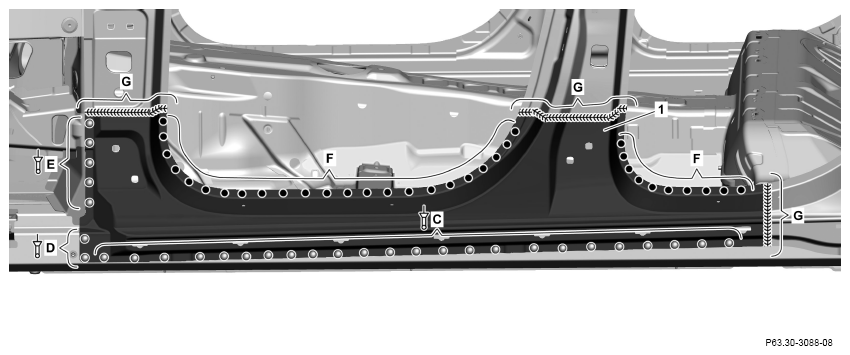

9. Install longitudinal member paneling (1) and fix in place.
10. Rivet longitudinal member paneling (1) with rivets with a diameter of 6.4x12 (area C).
11. Rivet longitudinal member paneling (1) with countersunk head blind rivet with a diameter of 6.4x14.0 (area D).
12. Rivet longitudinal member paneling (1) with countersunk head blind rivet with a diameter of 6.4x15.5 (area E).
13. Longitudinal member paneling (1) (areas F).
14. Longitudinal member paneling (1) (areas G).

    Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.

15. Grind inert gas weld joints down flat (areas G).
16. Solder surfaces on side longitudinal member panel (1) in area of inert gas welds with body solder and smooth.

    As an alternative to restoring the surfaces with a body solder, it is also possible to use a basic body filler.
