Rear Wheel Well Section Prepare For Installation - Ar63.10-P-0662-02FRX

Model 290

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

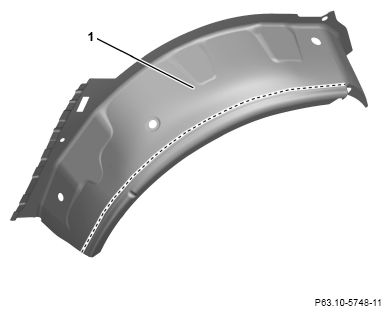

1. Mark separating point on outer rear wheel well (1) and cut.

   Transfer separation point from vehicle and add approx. 2 cm for overlap.

2. Remove section from outer rear wheel well (1).
