Rear Lower Section Of Side Wall Paneling Prepare For Installation - Ar63.10-P-5665-02FRX
Model 290
The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.
Additional information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.

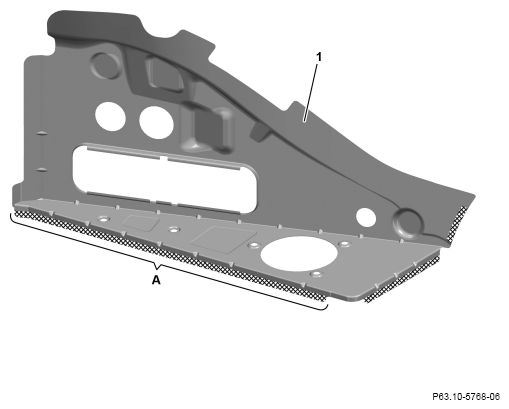

- Grind mating surfaces on rear side wall paneling lower section (1) down to bare metal in crosshatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Remove grinding dust and drill chips.
- Coat insides of spot weld flanges with zinc dust paint.
Do not coat bonding surface with zinc dust paint (area A).
Otherwise adhesion problems may occur.
