Rear Fender Complete Removal - Ar63.50-P-1401-01FRX

Model 290

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Courtesy of MERCEDES-BENZ USA

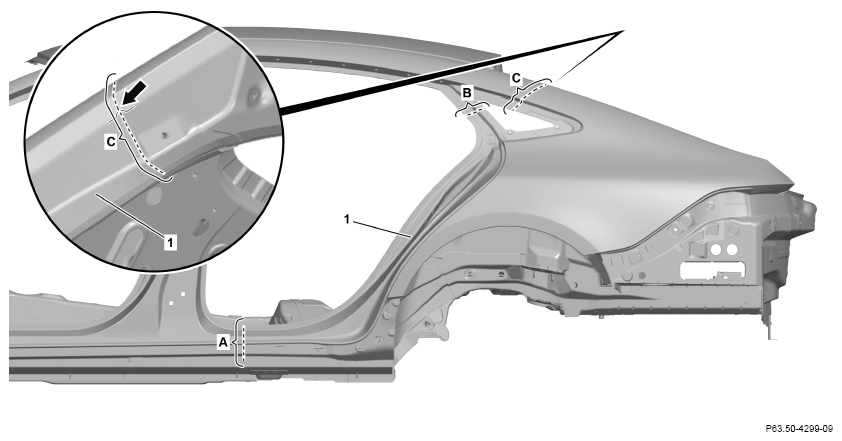

1. Mark separating points on rear fender (1) and cut (areas A, B, C).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Mark separating points along the Y markings (areas A, B).

   Mark separating point of the Y marking via the center of the notch (arrow) on the inside (area C).

   Courtesy of MERCEDES-BENZ USA

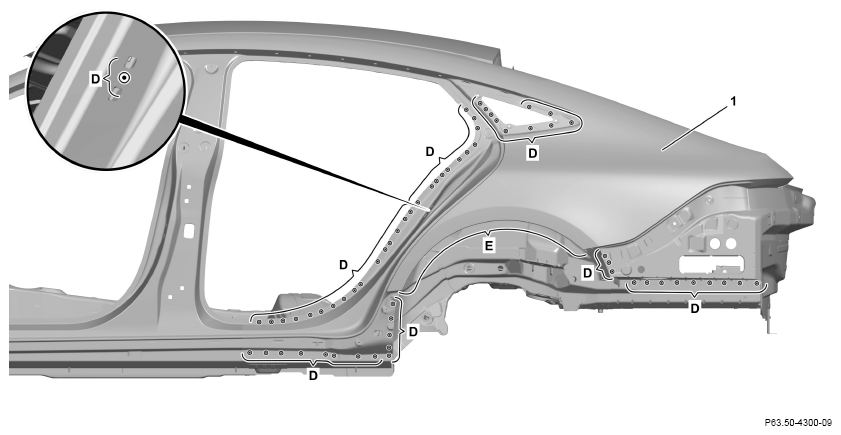

2. Separate adhesive bead between the rear outer wheel well and rear fender (1) (area E).

   The rear fender is bonded to the outer rear wheel well (1).

3. Expose spot welds on rear fender (1) and cut out (areas D).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

   Courtesy of MERCEDES-BENZ USA

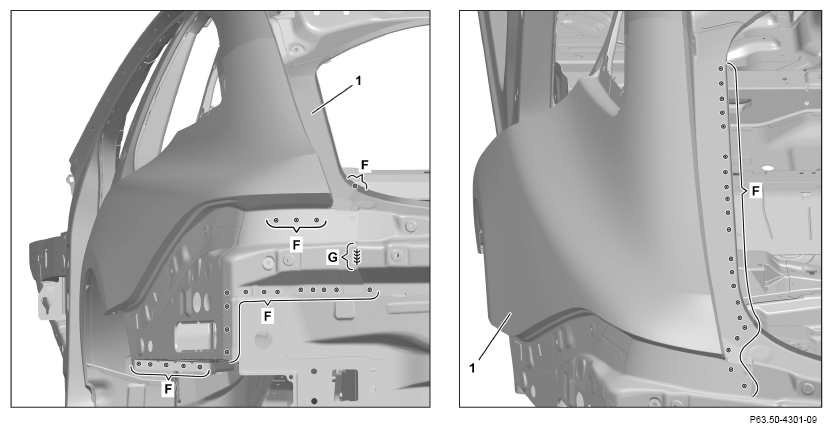

4. Expose spot welds on rear fender (1) and cut out (areas F).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

5. Expose laser seam on rear fender (1) and cut off (area G).

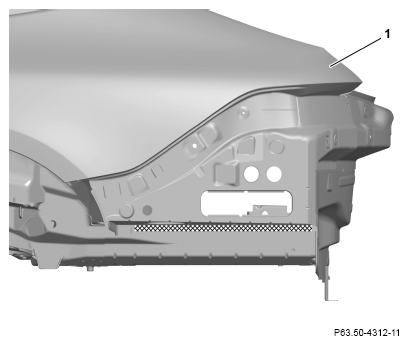

6. Heat rear fender (1) in crosshatched area.

   Cross-hatched area is bonded.

   Courtesy of MERCEDES-BENZ USA

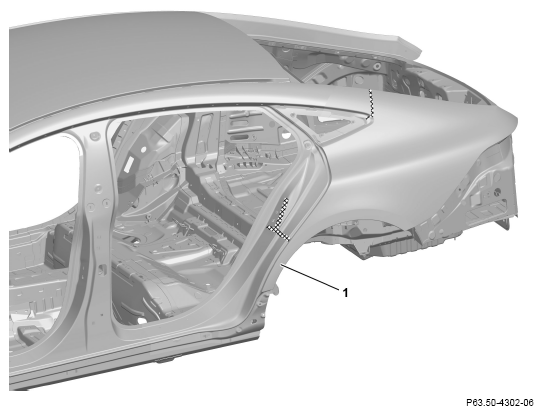

7. Heat rear fender (1) in crosshatched areas.

   Cross-hatched areas are bonded with adhesive.

8. Remove rear fender (1).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

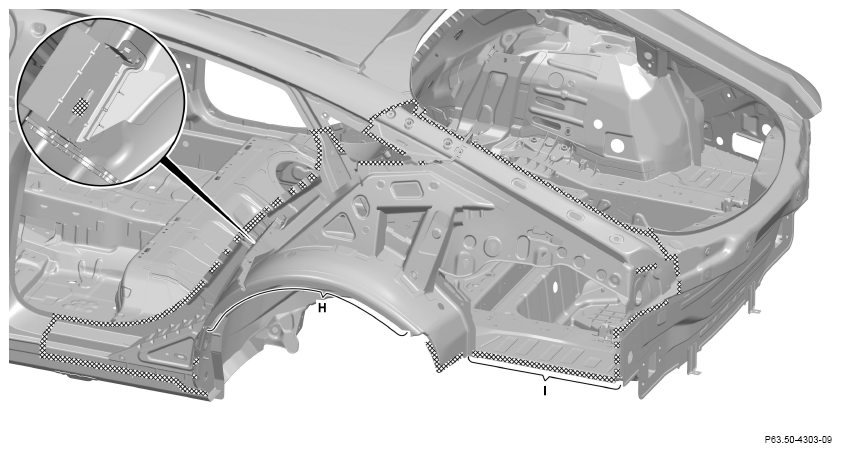

9. Remove remaining adhesive material in area of outer rear wheel well (area H).

   The height of the remaining adhesive should be max. 2 mm. Always remove loose adhesive.

10. Repair bare spots in area of outer rear wheel well with primer stick (area H).
11. Sand down mating surfaces to bare metal in cross-hatched areas.

    Sand down spot weld flanges to bare metal on both sides.

12. Remove grinding dust and drill chips.
13. Coat insides of spot weld flanges with zinc dust paint.

    The bonding surface may not be coated with zinc dust paint (area I).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.
