Main Floor Panel Partial Removal - Ar63.40-P-1180-24FR

Model 257, 290

The following operation steps are shown on the left side of the vehicle on model 257. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

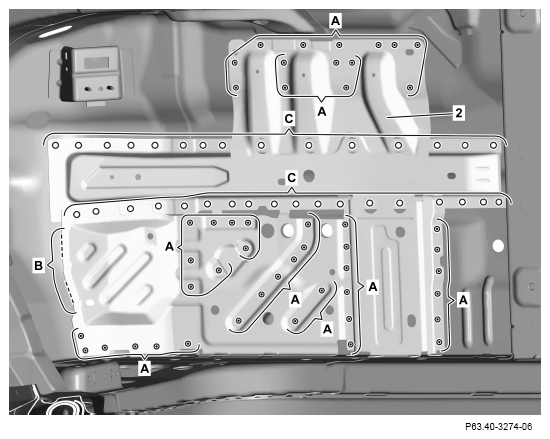

1. Expose spot welds on connecting carrier (2) and cut out (areas A).
2. Expose spot welds on connecting carrier (2) and drill with ø 6.5 mm (areas C).
3. Expose inert gas welds on connecting carrier (2) and cut (area B).

   Courtesy of MERCEDES-BENZ USA

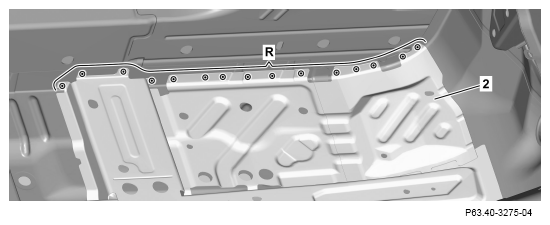

4. Expose spot welds on connecting carrier (2) and cut out (areas R).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

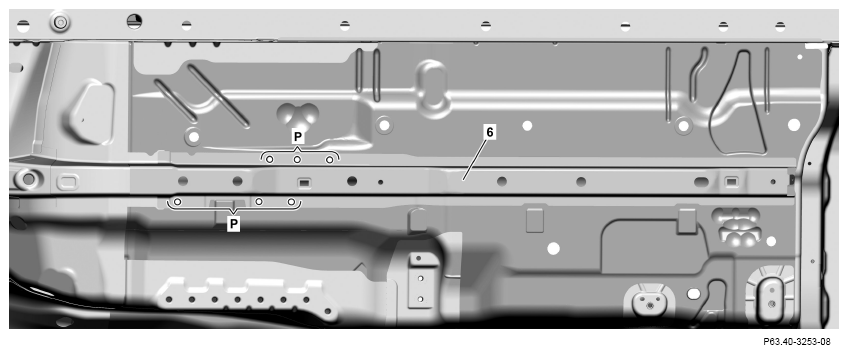

5. Expose spot welds on bottom longitudinal member (6) and drill with ø 6.5 mm bit (areas P).

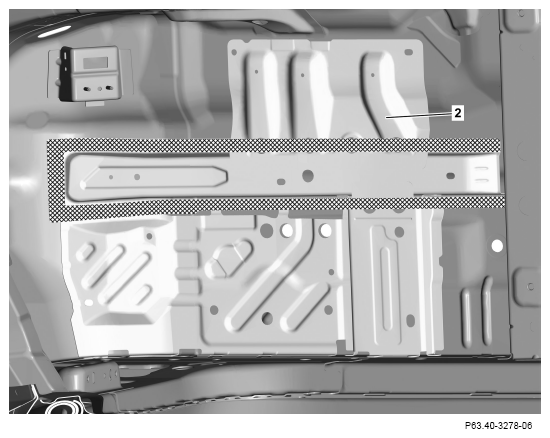

6. Heat connecting carrier (2) in crosshatched area.

   Cross-hatched area is bonded.

7. Remove connecting carrier (2).

   Courtesy of MERCEDES-BENZ USA

8. Expose spot welds on the reinforcement (7) of the rear front seat crossmember (4) and cut out (area T).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

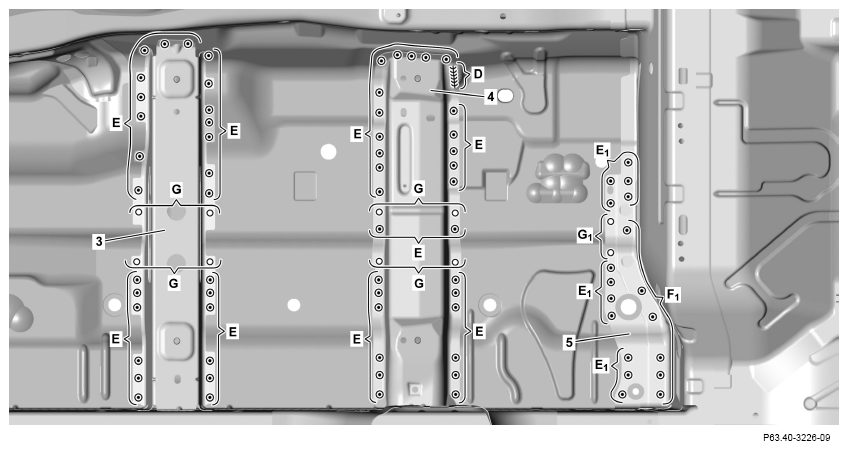

9. Expose inert gas weld seam on rear front seat crossmember (4) and separate (area D).
10. Expose spot welds on front seat crossmembers (3, 4) and on the reinforcement (5) and cut out (areas E, E₁ , F₁ ).

    Cut out spot welds from below (areas E₁ , F₁ ).

11. Expose spot welds on the front seat crossmembers (3, 4) and on the reinforcement (5) and drill through with 6.5 mm bit (areas G, G₁ ).

    Courtesy of MERCEDES-BENZ USA

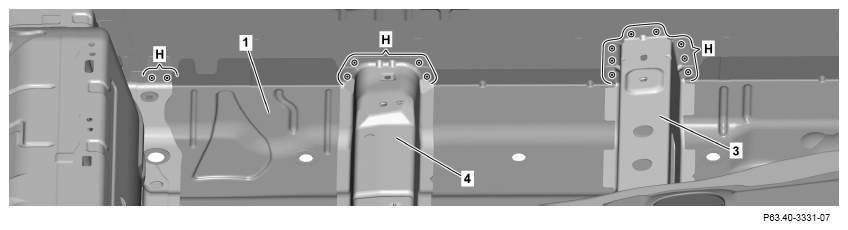

12. Expose spot welds front seat crossmembers (3, 4) and main floor (1) and cut out (areas H).

    Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

13. Remove front seat crossmembers (3, 4).

    Courtesy of MERCEDES-BENZ USA

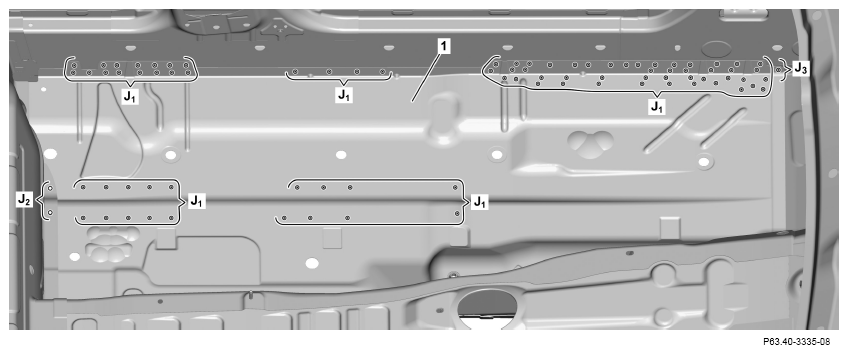

14. Expose spot welds on main floor (1) and cut out (areas J₁ , J₃ ).
15. Expose spot welds on main floor (1) and drill with ø 6.5 mm bit (area J₂ ).

    Courtesy of MERCEDES-BENZ USA

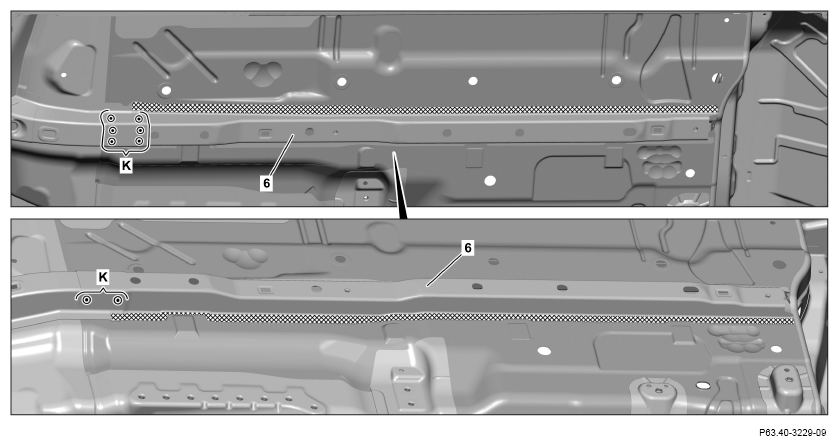

16. Expose spot welds on bottom longitudinal member (6) and cut out (areas K).
17. Heat bottom longitudinal member (6) in crosshatched areas.

    Cross-hatched areas are bonded with adhesive.

18. Remove bottom longitudinal member (6).

    Courtesy of MERCEDES-BENZ USA

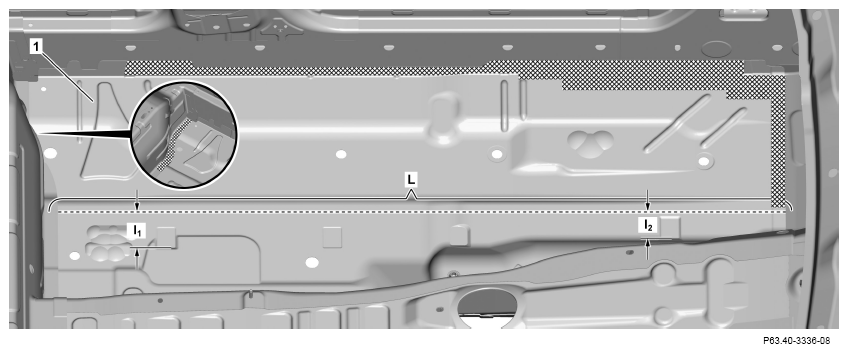

19. Mark separating on main floor (1) and cut (area L).

    Dimensions:

    l₁ = approx. 70 mm

    l₂ = approx. 55 mm

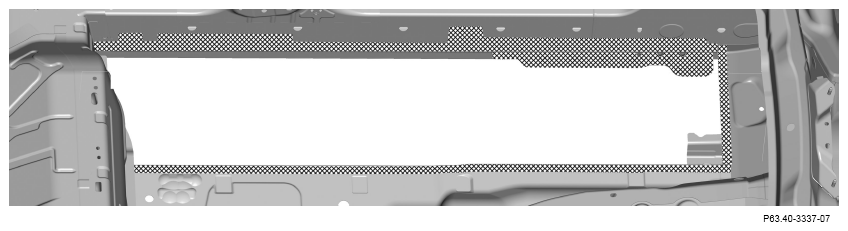

20. Heat main floor panel (1) in cross-hatched areas.

    Cross-hatched areas are bonded with adhesive.

21. Remove main floor panel (1)

    Courtesy of MERCEDES-BENZ USA

22. Grind mating surfaces down to bare metal in crosshatched area.
23. Remove grinding dust and drill chips.

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA

24. Sand down mating surfaces to bare metal in cross-hatched areas.
25. Remove grinding dust and drill chips.

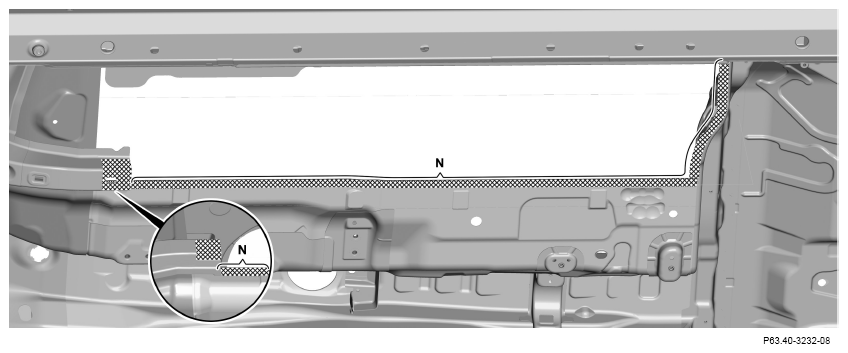

26. Apply zinc dust paint to crosshatched areas.

    Do not coat bonding surfaces with zinc dust paint (areas N).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.
