C-Pillar Installation - Ar63.20-P-0500-03FRX

Model 290

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

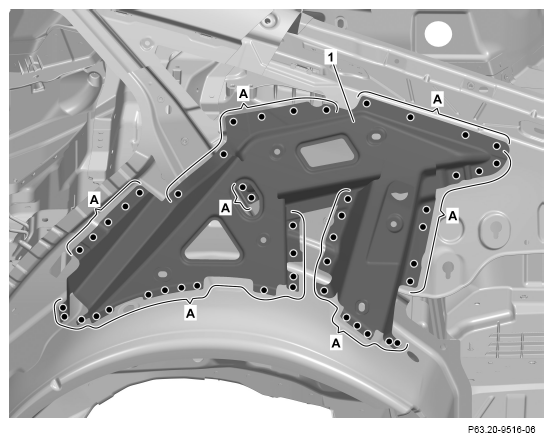

1. Install C-pillar (1), fit, and fix in place.
2. C-pillar (1) (areas A).
3. Clean weld joints that are no longer accessible after rear fender is installed, and coat with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
