A-Pillar Cut Off - Ar63.20-P-1100-01FR

Model 257, 290

The following operation steps are shown on the left side of the vehicle on model 257. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Courtesy of MERCEDES-BENZ USA

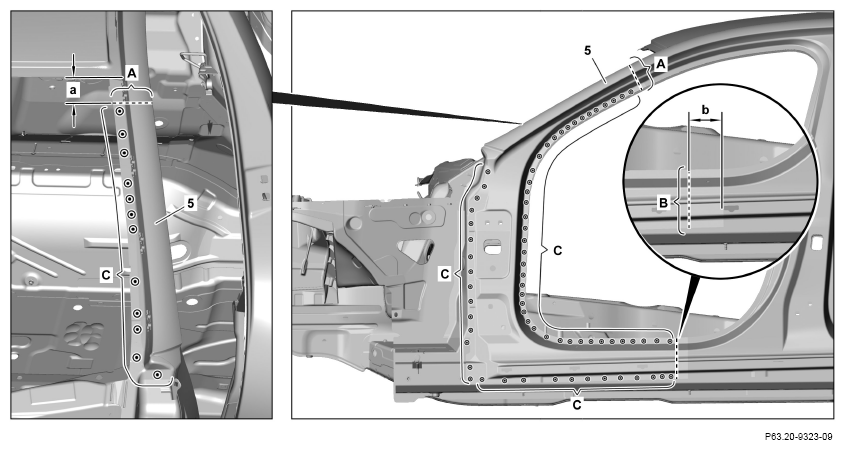

1. Mark separating points on A-pillar paneling (5) and cut (areas A, B).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   a = approx. 50 mm

   b = approx. 30 mm

2. Expose spot welds on A-pillar paneling (5) and cut out (areas C).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

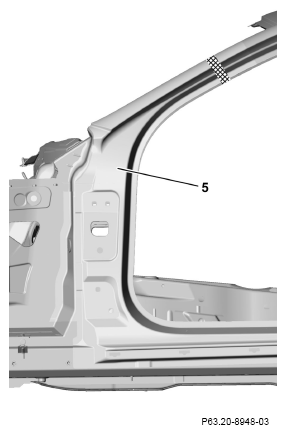

3. Heat A-pillar paneling (5) in cross-hatched area.

   Cross-hatched area is bonded.

4. Remove A-pillar paneling (5).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

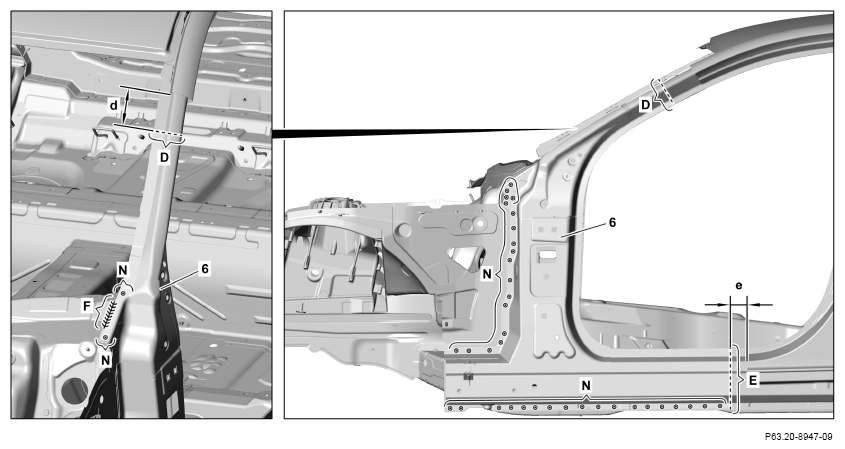

5. Mark separating points on A-pillar reinforcement (6) and cut (areas D, E).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   d = approx. 50 mm

   e = approx. 55 mm

6. Expose solder seam on A-pillar reinforcement (6) and cut (area F).
7. Expose spot welds on A-pillar reinforcement (6) and cut out (areas N).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

   Courtesy of MERCEDES-BENZ USA

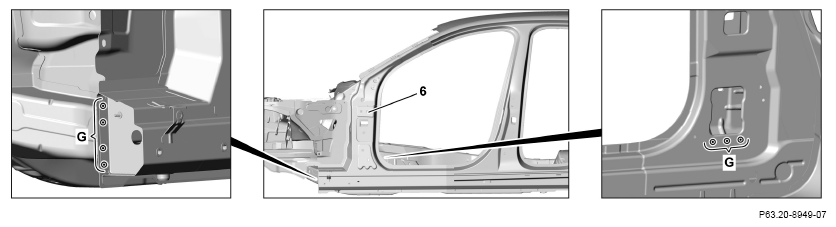

8. Expose spot welds on A-pillar reinforcement (6) and cut out (areas G).

   Courtesy of MERCEDES-BENZ USA

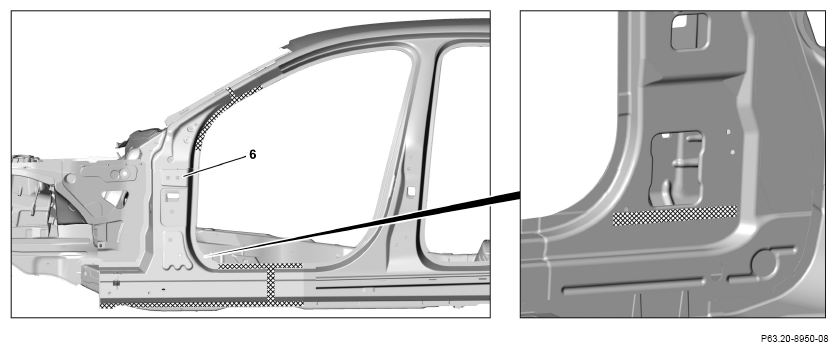

9. Heat A-pillar reinforcement (6) in cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

10. Remove A-pillar reinforcement (6).

    Courtesy of MERCEDES-BENZ USA

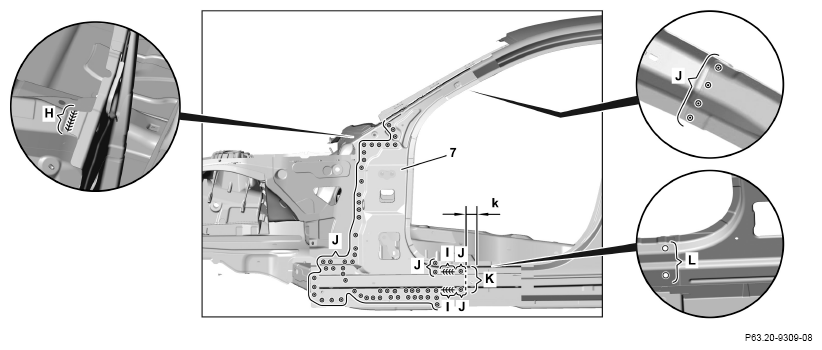

11. Mark separating point on A-pillar inner panel (7) and cut (area K).

    Do not cut too deeply.

    Otherwise the components below can be damaged and weakened.

    Dimensions:

    k = approx. 45 mm (measured from original connecting point)

12. Expose solder seam on A-pillar inner panel (7) and cut (area H).
13. Expose spot welds on A-pillar inner panel (7) and cut out (areas J).
14. Expose spot welds on A-pillar inner panel (7) and drill through with a drill bit with a diameter of 6.5 mm (area L).
15. Expose laser seams on A-pillar inner panel (7) and cut (areas I).

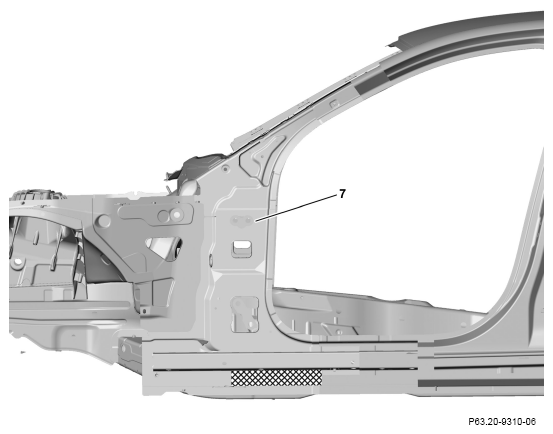

16. Heat A-pillar inner panel (7) in cross-hatched area.

    Cross-hatched area is bonded.

17. Remove A-pillar inner panel (7).

    Courtesy of MERCEDES-BENZ USA

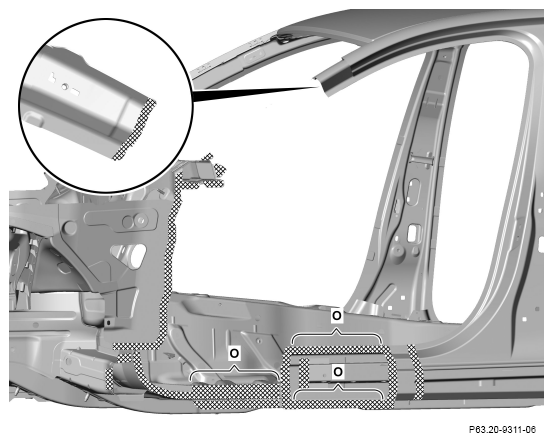

18. Sand down mating surfaces to bare metal in cross-hatched areas.

    Sand down spot weld flanges to bare metal on both sides.

19. Remove grinding dust and drill chips.
20. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (areas O).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.
