Separate Center Roof Paneling - Ar65.10-P-1000-02FRX

Model 290 except code 397 (Carbon roof) except code 416 (Panoramic sunroof)

Fig 1: Set Of Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

The following operation steps are shown on model 290 except code 414 (Sliding sunroof).

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

1. Insert set of spacer blocks at undamaged side between center roof paneling (1) and side roof paneling and adjust dimension.

   So that the center roof paneling (1) can be adapted with the adjusted set of spacer blocks when installing.

2. Mark position of the set of spacer blocks on the vehicle and dimensions.
3. Determine dimensions from outer edge of center roof paneling (1) to outer edge of front and rear roof rack.
4. Mark positions of measuring points on vehicle and note dimensions.

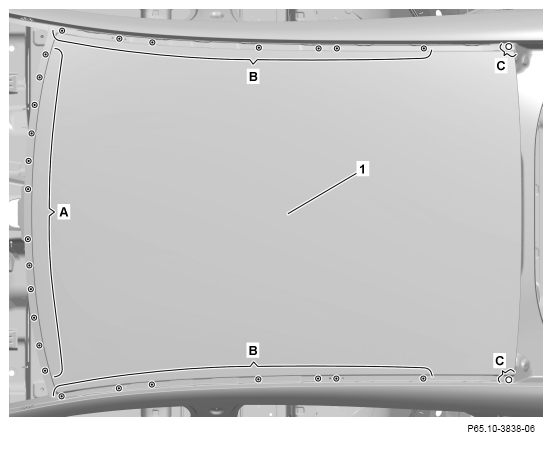

5. Expose spot welds on center roof paneling (1) and cut off (areas A, B).
6. Expose spot welds on center roof paneling (1) and drill out with ø 6.5 mm (areas C).

   Courtesy of MERCEDES-BENZ USA

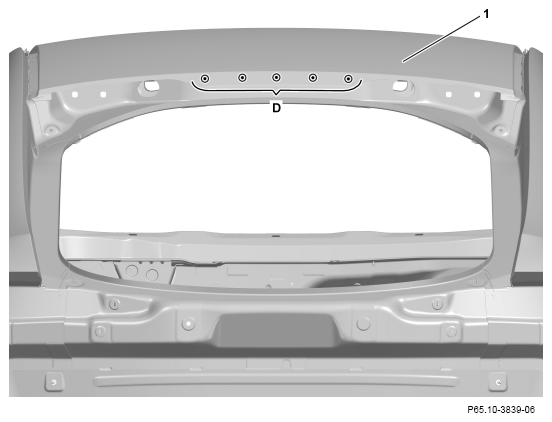

7. Expose spot welds on center roof paneling (1) and cut off (area D).

   Courtesy of MERCEDES-BENZ USA

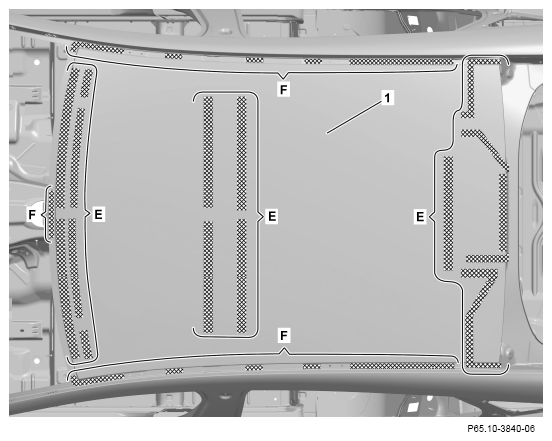

8. Cut adhesive bondings of center roof paneling (1) in cross-hatched areas (areas E, F).

   Cross-hatched areas are bonded with adhesive.

9. Heat center roof paneling (1) in cross-hatched areas (areas E, F).

   Do not exceed a temperature of 120°C.

   Otherwise the structure of the adhesive areas below can change.

   Cross-hatched areas are bonded with adhesive.

   Courtesy of MERCEDES-BENZ USA

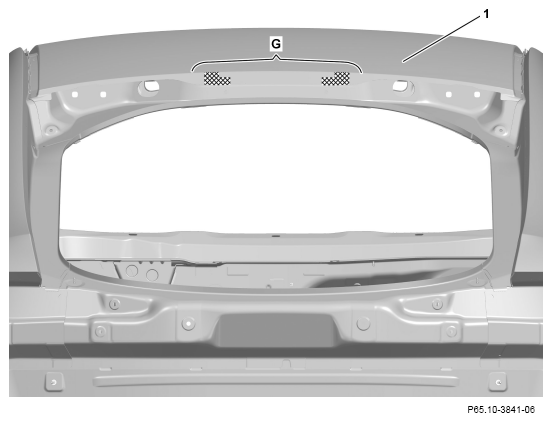

10. Cut adhesive bondings of center roof paneling (1) in cross-hatched areas (area G).

    Cross-hatched areas are bonded with adhesive.

11. Remove center roof paneling (1).

    Courtesy of MERCEDES-BENZ USA

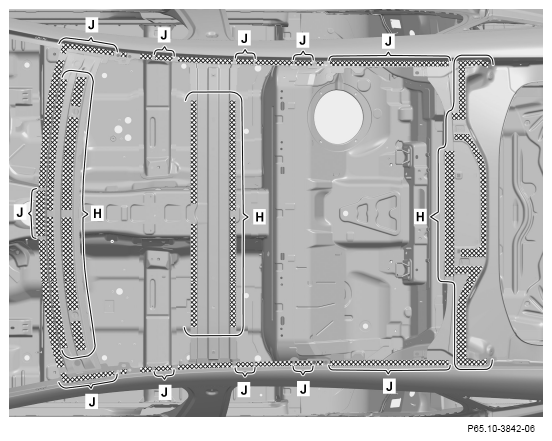

12. Remove residual adhesive material from roof frame (areas H).

    Observe pretreatment of bonding surfaces.

13. Coat damaged points with primer.
14. Grind mating surfaces down to bare metal in remaining crosshatched areas.

    Sand down spot weld flanges to bare metal on both sides.

15. Remove grinding dust and drill chips.
16. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (areas J).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA

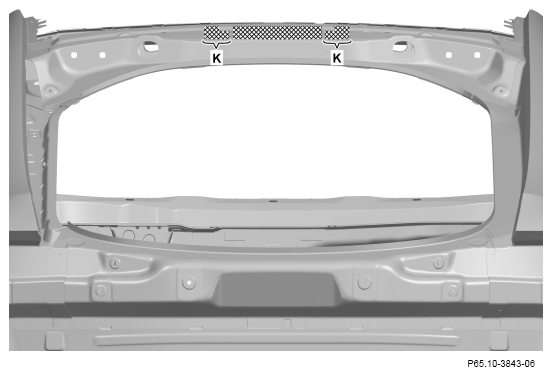

17. Remove residual adhesive material from roof frame (areas K).

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA
