Cross Member Above Rear Axle Preparing For Installation - Ar64.20-P-1300-08FR

Model 257, 290

The following operation steps are shown on model 257.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

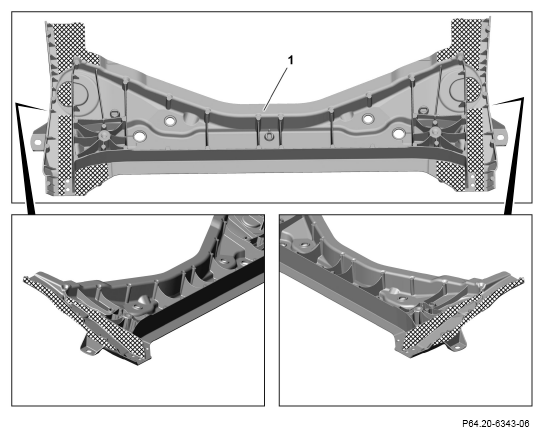

1. Grind mating surfaces on rear axle crossmember (1) down to bare metal in crosshatched areas.
2. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

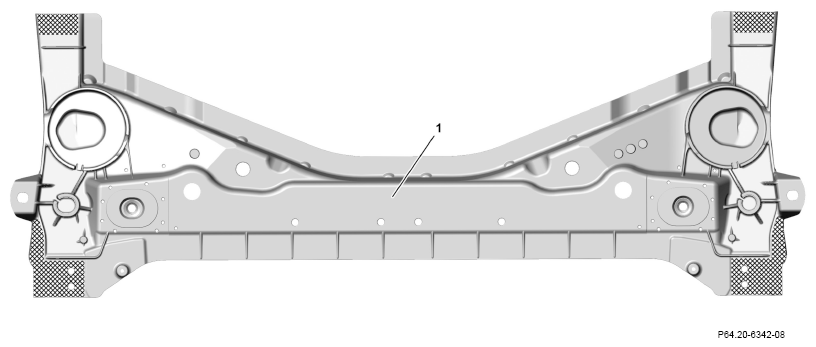

3. Grind mating surfaces on rear axle crossmember (1) down to bare metal in crosshatched areas.
4. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

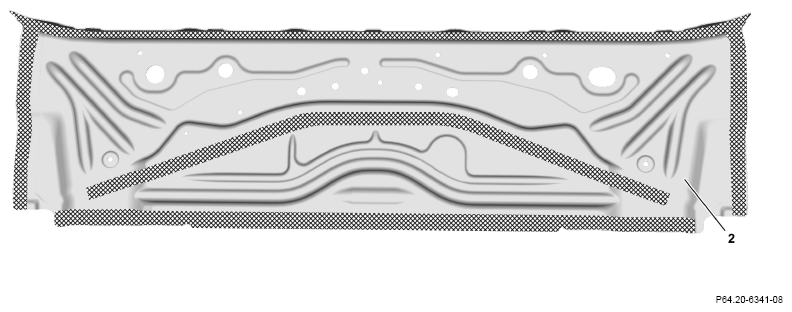

5. Grind mating surfaces on rear axle crossmember upper section (2) down to bare metal in crosshatched areas.
6. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

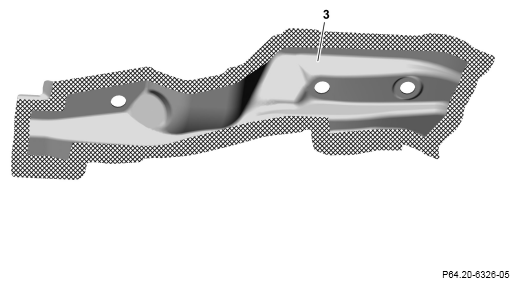

7. Grind mating surface on the striker plates (3) down to bare metal in cross-hatched area.
8. Remove grinding dust.

   Observe preliminary treatment of bonding surface.

   Shown on the inside left of the striker plate (3)

   Courtesy of MERCEDES-BENZ USA
