Wheel Well Install And Weld In - Ar62.20-P-1200-17FR

Model 257, 290

The following operation steps are shown on the left side of the vehicle on model 257. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Courtesy of MERCEDES-BENZ USA

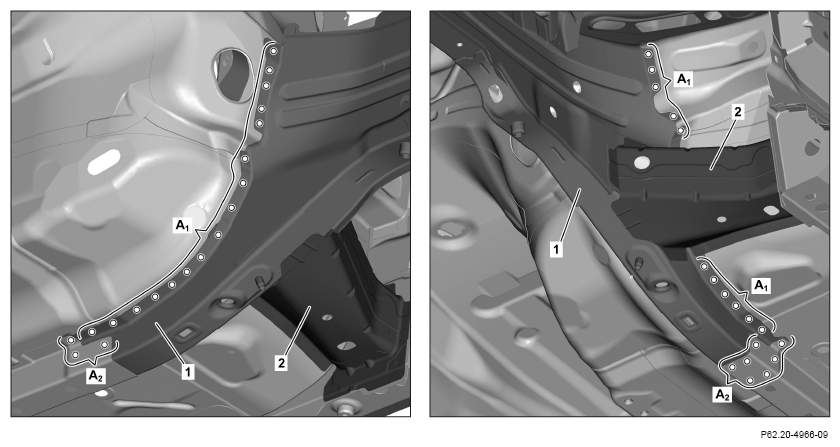

1. Install wheel well (1), fit with straightening tool and fix in place.
2. Install, fit and fix in place crossmember (2).
3. Drill rivet holes with a diameter of 6.7 mm in wheel well (1) (areas A₁ , A₂ ).

   Drill rivet holes through present holes in body (areas A₂ ).

   Courtesy of MERCEDES-BENZ USA

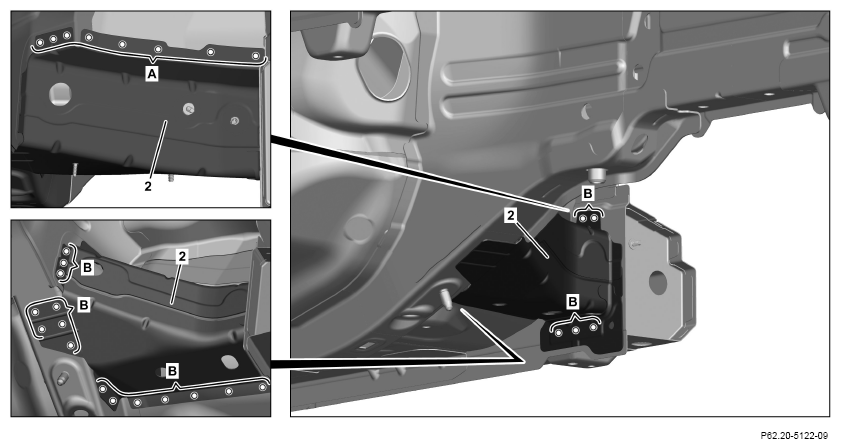

4. Drill rivet holes with a diameter of 6.7 mm in crossmember (2) (areas A, B).
5. Remove crossmember (2).

   Courtesy of MERCEDES-BENZ USA

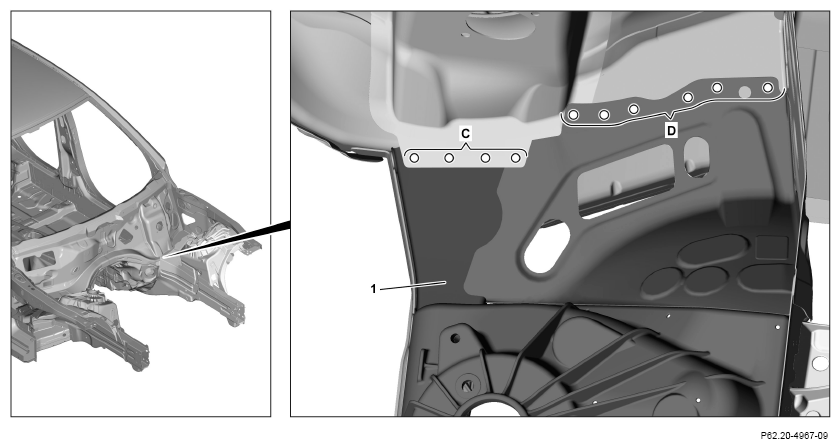

6. Drill rivet holes with a diameter of 6.7 mm in wheel well (1) (areas C, D).
7. Remove wheel well (1) and straightening tool.
8. Deburr rivet holes on wheel well (1), crossmember and body on both sides.
9. Remove drilling chips.
10. Coat insides of riveted joints in areas not bonded with zinc dust paint.

    Do not apply zinc dust paint to bonding surfaces. Otherwise adhesion problems may occur.

    Courtesy of MERCEDES-BENZ USA

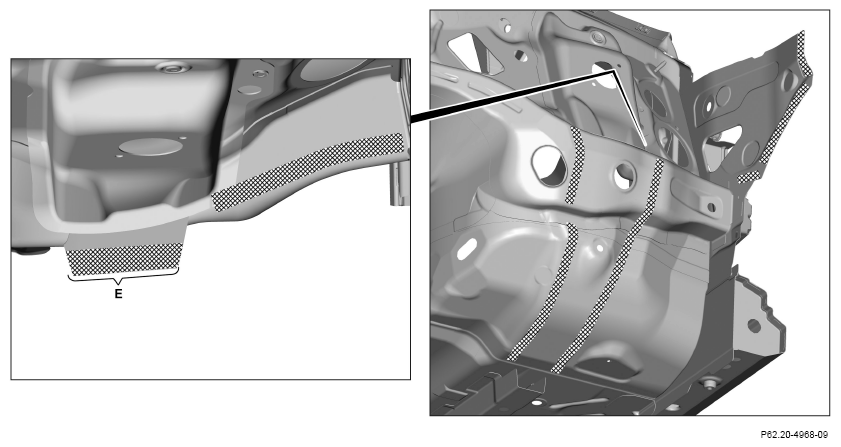

11. Apply 2-component adhesive to body in crosshatched areas.

    Apply 2-component adhesive at bottom (area E).

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

12. Install wheel well (1) with straightening tool and fix in place.

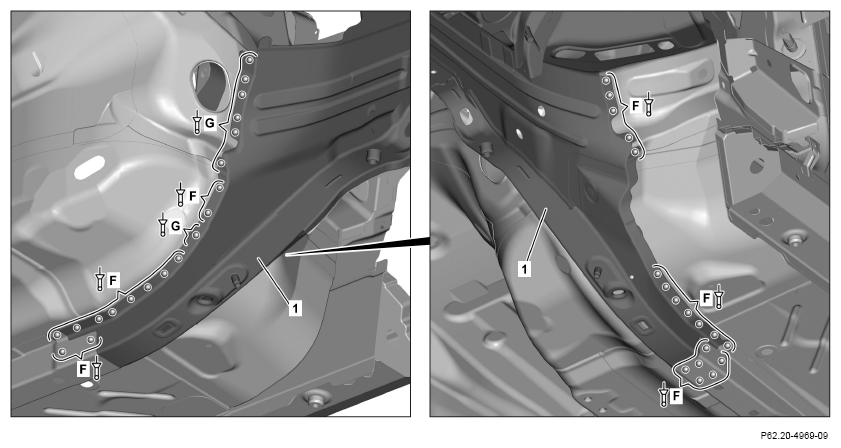

13. Rivet wheel well (1) with rivets with a diameter of 6.5x12.5 (areas F).
14. Rivet wheel well (1) with rivets with a diameter of 6.5x14.5 (areas G).

    Courtesy of MERCEDES-BENZ USA

15. Rivet wheel well (1) with rivets with a diameter of 6.4x12 (area J).
16. Rivet wheel well (1) with rivets with a diameter of 6.5x12.5 (area H).
17. Rivet wheel well (1) with rivets with a diameter of 6.5x14.5 (areas I).

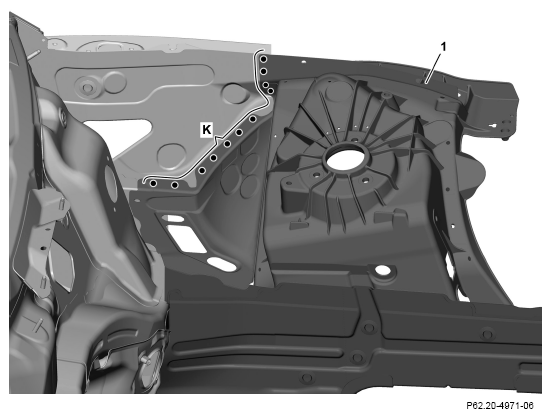

18. Wheel well (1) (area K).

    Courtesy of MERCEDES-BENZ USA

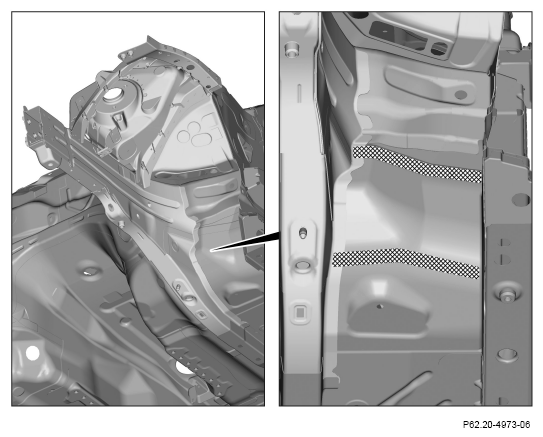

19. Apply 2-component adhesive to body in crosshatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

20. Install crossmember (2) and fix in place.

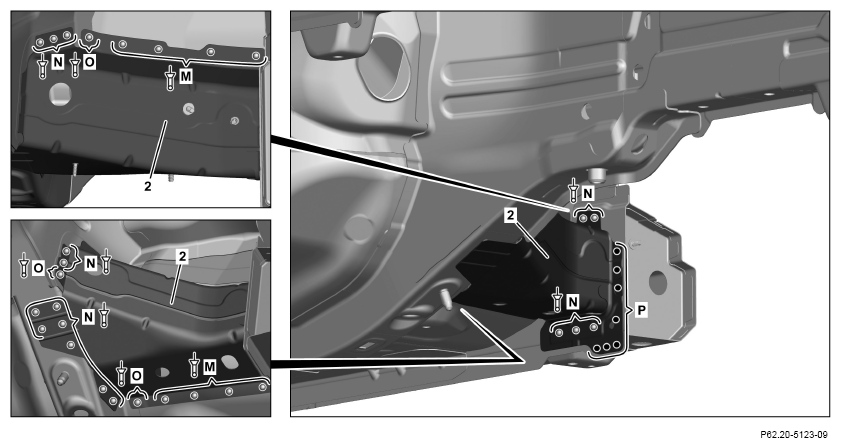

21. Rivet crossmember (2) with rivets with a diameter of 6.4x12 (areas M).
22. Rivet crossmember (2) with rivets with a diameter of 6.5x12.5 (areas N).
23. Rivet crossmember (2) with rivets with a diameter of 6.5x14.5 (areas O).
24. Crossmember (2) (area P).

    Courtesy of MERCEDES-BENZ USA

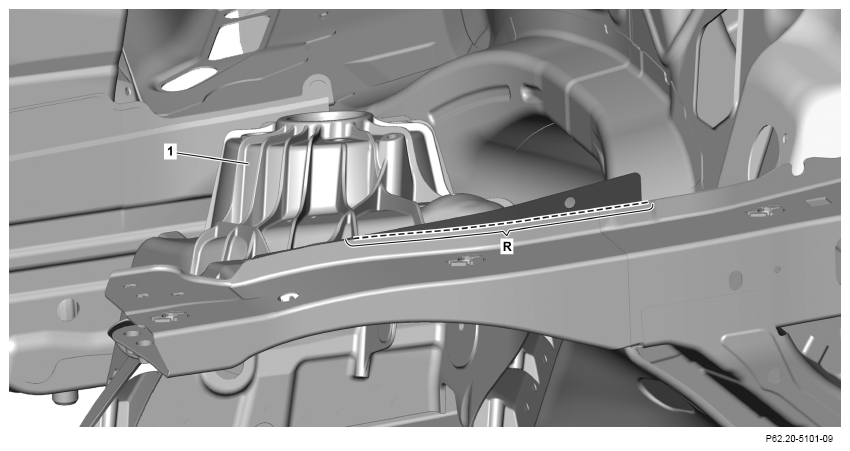

25. Separate protrusion of wheel well (1) (area R).

    After installing upper front longitudinal member.
