Upper Front Longitudinal Member Separation - Ar62.20-P-1286-01FR

Model 257, 290

The following operation steps are shown on the left side of the vehicle on model 257. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Courtesy of MERCEDES-BENZ USA

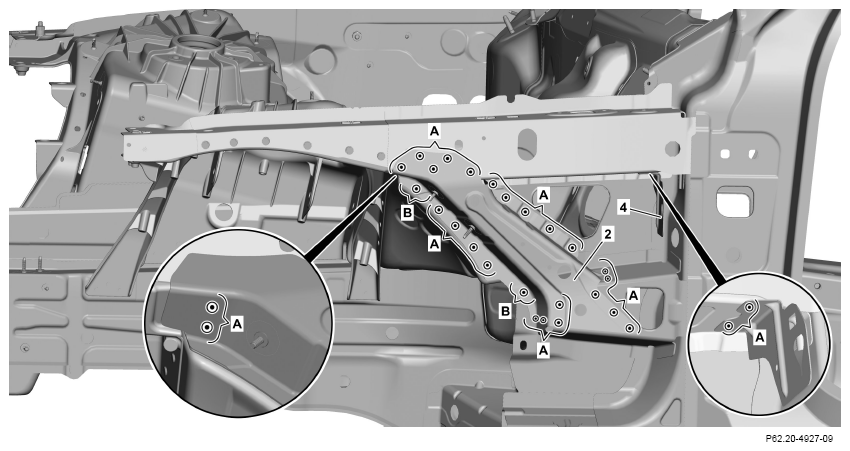

1. Expose and cut off spot welds at strut (2) and bracket (4) (areas A, B).

   Cut out spot welds through two panel thicknesses (areas B).

2. Remove bracket (4).

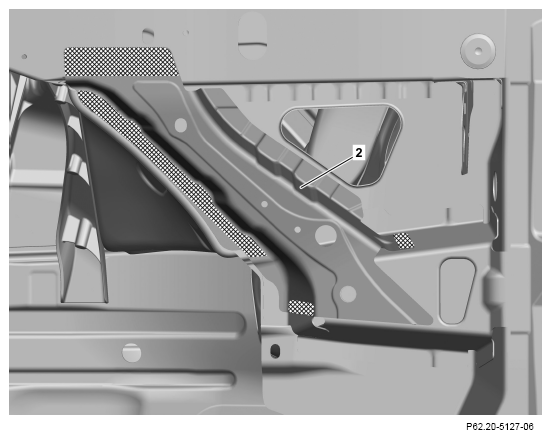

3. Heat strut (2) in crosshatched areas.

   Cross-hatched areas are bonded with adhesive.

4. Remove strut (2).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

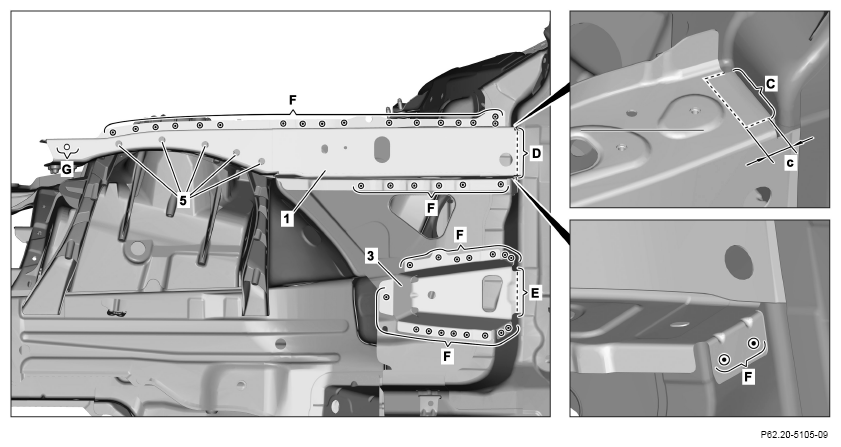

5. Mark separating point on upper front longitudinal member (1) and cut (area C).

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   c = approx. 20 mm

6. Mark separating points on upper front longitudinal member (1) and reinforcement (3) and cut (areas D, E).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

7. Unscrew bolts (5) from upper front longitudinal member (1).
8. Expose spot welds on upper front longitudinal member (1) and reinforcement (3) and cut out (areas F).
9. Expose self-piercing riveting on upper front longitudinal member (1) and drill with ø 6 mm bit (area G).

   Courtesy of MERCEDES-BENZ USA

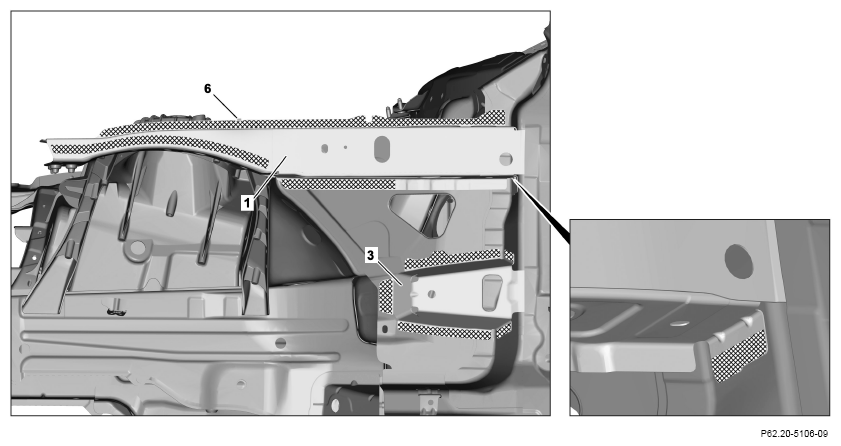

10. Heat upper front longitudinal member (1) and reinforcement (3) in crosshatched areas.

    Cross-hatched areas are bonded with adhesive.

11. Remove upper front longitudinal member (1).
12. Remove reinforcement (3).

    Courtesy of MERCEDES-BENZ USA

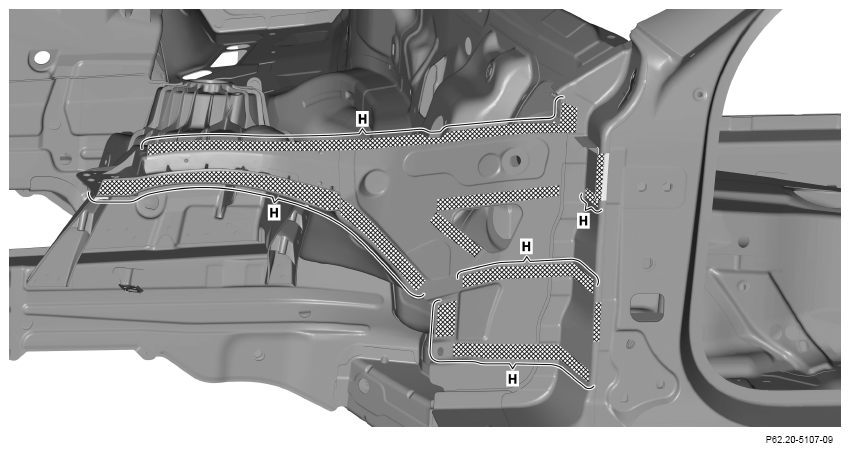

13. Sand down mating surfaces to bare metal in cross-hatched areas.

    Sand down spot weld flanges to bare metal on both sides.

14. Remove grinding dust and drill chips.
15. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (areas H).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.
