Remove/Install Front RPM Sensor - AR42.30-P-0713FRX
Model 290

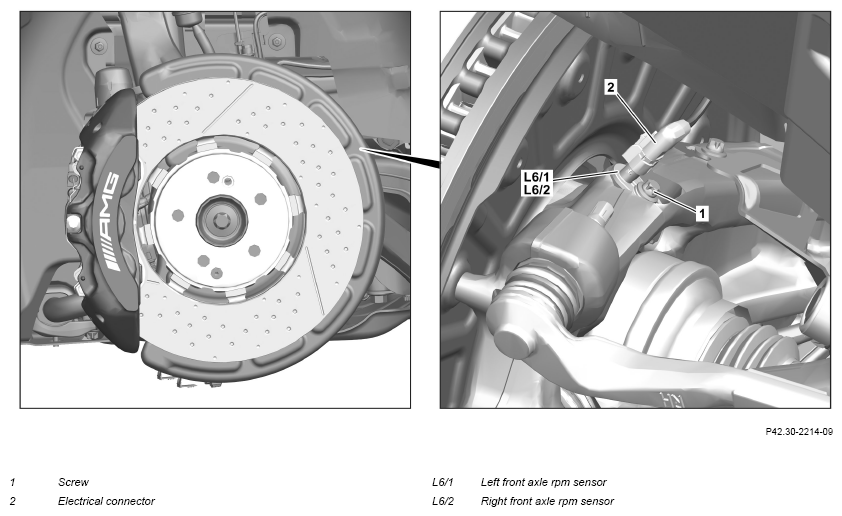

Shown on right side of vehicle
| Notice | Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | |
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove front wheel. | AR40.10-P-1102A | |
| 2 | Release electrical connector (2) and disconnect from front axle RPM sensor (L6/1, L6/2). | ||
| 3 | Unscrew bolt (1). | *BA42.30-P-1001-01K | |
| 4 | Remove front axle RPM sensor (L6/1, L6/2) from steering knuckle. | ||
| 5 | Install in the reverse order. | ||
| 6 | Connect vehicle diagnosis system and read out fault memory. | ||
| AD00.00-P-2000-06FR |
FRONT AXLE RPM SENSOR
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BA42.30-P-1001-01K | Bolt, RPM sensor to steering knuckle | M6 | Nm | 8 |
