Remove/Install Brake Hose At Rear Axle - AR42.10-P-0023FRX
Model 290
MODIFICATION NOTES
| 12.10.2023 | Brake hose to brake caliper | Model 290.658/659/661 except code B07/U69 | BA42.10-P-1002-04P |

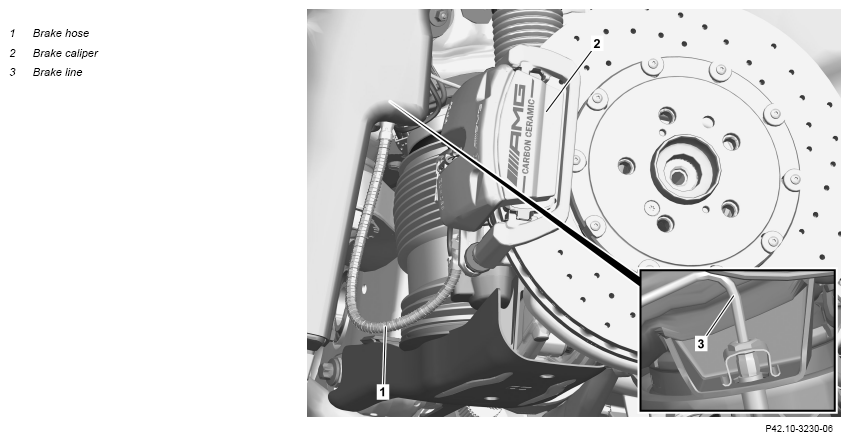

Shown with code B07 (Ceramic brake system)
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notice | Notes on installing brake hoses | AH42.10-P-9406-01LWO | |
| Notice | Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | |
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notice | Brake fluid notes | AH42.50-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove rear wheel. | AR40.10-P-1102A | |
| 2 | Detach brake line (3) from brake hose (1) and seal connections with suitable stop plugs. | Seal connections immediately. Otherwise damage can be caused by escaping brake fluid. |
|
| *BA42.10-P-1001-04P | |||
| Fig 2 | |||
| Fig 1 | |||
| 3 | Remove brake hose (1) from brake caliper (2) and seal connections using suitable stop plugs. | Seal connections immediately. Otherwise damage can be caused by escaping brake fluid. |
|
| *BA42.10-P-1002-04P | |||
| Fig 1 | |||
| 4 | Install in the reverse order. | ||
| 5 | Bleed brake system. | AR42.10-P-0010FR |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 290.658/659/661 except code B07/U69 | Model 290.658/659/661 with code B07/U69, Model 290.679/688/689 | |
|---|---|---|---|---|
| BA42.10-P-1001-04P | Retaining screw, brake line to brake hose | Nm | 14 | 14 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 290.658/659/661 except code B07/U69 | Model 290.658/659/661 with code B07/U69, Model 290.679/688/689 | ||
|---|---|---|---|---|---|
| BA42.10-P-1002-04P | Brake hose to brake caliper | Front axle | Nm | 24 | 24 |
| Rear axle | Nm | 50 | 16 | ||
