Remove/Install Front Axle Brake Disk - AR42.10-P-0230FRX

Model 290

with code B06 (Silver brake calipers)

except code B07 (AMG - ceramic brake system)

Model 290

with code U69 (Brake calipers painted yellow) except code B07 (AMG - ceramic brake system)

Model 290

with code U70 (red-painted brake callipers) except code B07 (AMG - ceramic brake system)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Remove brake caliper with brake pads and secure at vehicle free of tension with connected lines.		AR42.10-P-0070FRX

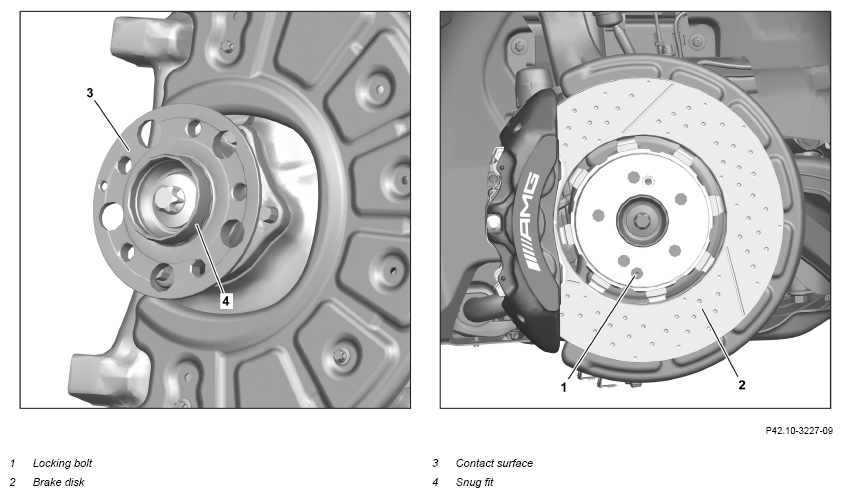

2	Unscrew safety screw (1) and remove brake disk (2).
	Check
3	Check brake disk (2) for condition and wear.	If there is a problem, ↓ Replace brake disks (2).	AR42.10-P-0120FRX
	Install
4	Clean contact surface (3) and interference fit (4).	Do not use sharp-edged or pointed objects. Otherwise, the contact surface (3) and interference fit (4) will be damaged. Assembly cleaner	*BR00.45-Z-1028-04A
5	Lightly grease interference fit (4) of brake disk (2).	Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
6	Position brake disk (2) and tighten safety screw (1).	Replace safety screw (1). Locking bolt, brake disk of front axle to wheel hub	*BA42.10-P-1002-06J
7	Install brake caliper.		AR42.10-P-0070FRX
