Carrying Out Bleeding Operation - AR42.10-P-0010-02FR

Model 192

Model 206

Model 214

Model 223

Model 232

Model 236

Model 245

Model 254

Model 257

Model 290

Model 294

Model 295

Model 296

Model 297

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Brake fluid notes		AH42.50-P-0001-01A
	000 588 16 82 00 Filling unit		WS25.00-P-0038B

Number	Designation		Model 223.182	Model 223 (except 223.182) with code Z07
BA42.10-P-1002-10CA	Bleed screw on brake caliper	Nm	18	18

Number	Designation		Model 223 (except 223.182) except code Z07
BA42.10-P-1002-10CA	Bleed screw on brake caliper	Nm	18

Number	Designation		Model 294	Model 295
BA42.10-P-1002-10EA	Bleed screw at brake caliper	Nm	18	18

Number	Designation		Model 296	Model 297
BA42.10-P-1002-10EA	Bleed screw at brake caliper	Nm	18	18

Number	Designation		Model 192	Model 232
BA42.10-P-1002-10FA	Bleed screw to brake caliper	Nm	14	14

Number	Designation		Model 206	Model 214
BA42.10-P-1002-12V	Bleed screw to brake caliper	Nm	11	11

Number	Designation		Model 236 with engine 254, 256, 654	Model 254
BA42.10-P-1002-12V	Bleed screw to brake caliper	Nm	11	11

Number	Designation		Model 257	Model 290
BA42.10-P-1002-12W	Bleed screw to brake caliper	Nm	14	14

Number	Designation			Model 223 except code Z07	Model 223 with code Z07
BA42.10-P-1002-12Y	Bleed screw to brake caliper	M10	Nm	11	11

Number	Designation			Model 294	Model 295
BA42.10-P-1002-12Y	Bleed screw to brake caliper	M10	Nm	11	11

Number	Designation			Model 296	Model 297
BA42.10-P-1002-12Y	Bleed screw to brake caliper	M10	Nm	11	11

Number	Designation		Model 290
BA42.10-P-1003-10BA	Bleed screw at brake caliper	Nm	14

Number	Designation		Model 206 with engine 139 with code M005 (Vehicles with 4MATIC/all-wheel drive)	Model 206 with engine 139 except code M005 (Vehicles with 4MATIC/all-wheel drive)
BA42.10-P-1003-10DA	Bleed screw	Nm	18	18

Number	Designation		Model 206 with engine 254, 654	Model 214 (except 214.063/263)
BA42.10-P-1003-10DA	Bleed screw	Nm	18	18

Number	Designation		Model 214.063/263 except code U70	Model 214.063/263 with code U70
BA42.10-P-1003-10DA	Bleed screw	Nm	18	18

Number	Designation		Model 236 with engine 254, 256, 654	Model 254 with engine 139 with code ME10 (Hybrid vehicle (plug-in, PHEV))
BA42.10-P-1003-10DA	Bleed screw	Nm	18	18

Number	Designation		Model 254 with engine 139 except code ME10 (Hybrid vehicle (plug-in, PHEV)) Model 254 with engine 254, 654, 656
BA42.10-P-1003-10DA	Bleed screw	Nm	18

Number	Designation		Model 257 (except 257.361)	Model 257.361
BA42.10-P-1003-10X	Bleed screw at brake caliper	Nm	14	14

Number	Designation		Model 192	Model 232
BA42.10-P-1006-12Z	Bleed screw to brake caliper	Nm	14	14

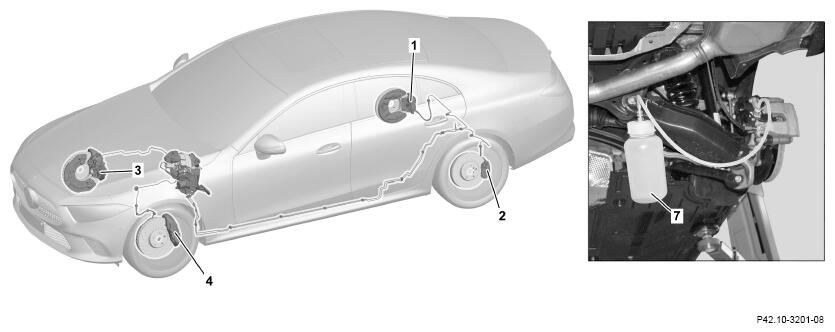

Shown on Model 257

Courtesy of MERCEDES-BENZ USA

1. Adjust bleed pressure at filling unit to 2.0 bar.
2. Remove cover caps for bleed screws on brake calipers (1, 2, 3, 4).



   Model 192, 232

   Model 206, 236, 254

   with code B06 (Silver brake calipers)

   with code ME10 (Hybrid vehicle (plug-in, PHEV))

   Model 206, 236, 254

   with code B07 (AMG - ceramic brake system)

   Model 206, 236, 254

   with code ME10 (Hybrid vehicle (plug-in, PHEV))

   with code U70 (red-painted brake callipers)

   Model 214

   with code U70 (red-painted brake callipers)

   Model 290

   with code B07 (AMG - ceramic brake system)

   Model 294

   Two bleed screws are located on the front brake calipers (3, 4).

3. Connect vent hose of bleed bottle (7) to bleed screw of brake caliper (1).
4. Open bleed screw.
5. 1. When bleeding the brake system hydraulic components after the hydraulic system has been opened for repair purposes.

      Fully depress brake pedal several times until new brake fluid exits free of bubbles at the bleed screw.

      To bleed the brake system properly, it is essential to pump with the brake pedal during the entire bleeding procedure.

      Otherwise, brake system malfunctions and a failure of the brake system may occur due to remaining residual air.

      Do not pump with the brake pedal in a jerking manner, but instead release it slowly.

      Otherwise air will be drawn in.

      The bleed screw can remain open throughout the entire pumping procedure. Total quantity of brake fluid required: approx. 1.5 l.

   2. When replacing brake fluid if the hydraulic system of the brake system was not opened beforehand for repair purposes.

      Keep bleed screw open until brake fluid escapes.

      It is not necessary to pump with the brake pedal. Required total quantity of brake fluid: Approx. 0.75 l.

6. Close bleed screw. Model 192, 232

   Model 192, 232

   Model 294, 295, 295, 297

   Model 223 Model 223, 294, 295, 296, 297 Model 257

   (except 257.361)

   Model 257.361

   Model 290

   Model 257, 290 Model 206, 214, 236, 254 Model 206, 214, 236, 254

7. Release vent hose of bleed bottle (7) from bleed screw (1) of brake caliper.
8. Repeat operation steps  3 to  7 successively on the brake calipers (2, 3, 4).



   Model 192, 232

   Model 206, 236, 254

   with code B06 (Silver brake calipers)

   with code ME10 (Hybrid vehicle (plug-in, PHEV))

   Model 206, 236, 254

   with code B07 (AMG - ceramic brake system)

   Model 206, 236, 254

   with code ME10 (Hybrid vehicle (plug-in, PHEV))

   with code U70 (red-painted brake callipers)

   Model 214

   with code U70 (red-painted brake callipers)

   Model 290

   with code B07 (AMG - ceramic brake system)

   Model 294

   On the brake calipers (3, 4), firstly open the bleed screw that is located directly next to the brake hose. Then open the outer bleed screw.

9. Cover caps for bleed screws on brake calipers (1, 2, 3, 4).
