Remove/Install Outer Rear Door Handle - AR72.12-P-2410FR

Model 257, 290

Courtesy of MERCEDES-BENZ USA

	Remove/install

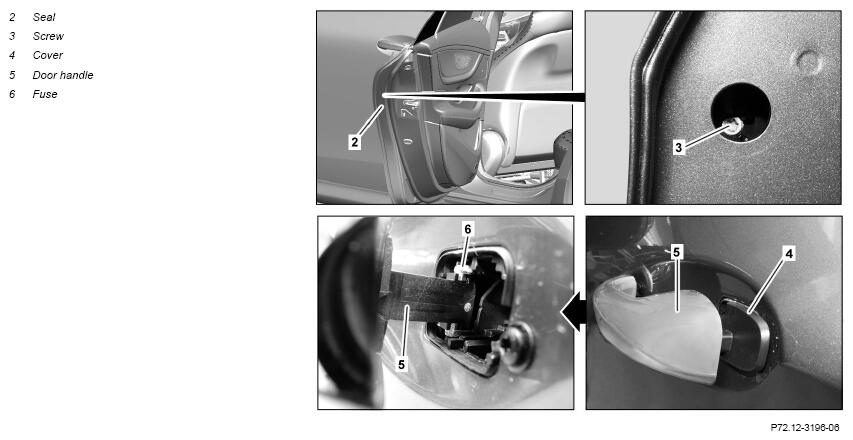

1	Detach seal (2) in area of screw (3).
2	Loosen screw/bolt (3).	The bolt (3) cannot be removed completely.
3	Pull door handle (5) to end stop and remove cover (4).	When removing cover (4), the door handle (5) must engage in the pulled position.
		If door handle (5) does not arrest, ↓ insert cover (4) with pulled door handle (5) and release door handle (5). Then repeat operation step.
4	Guide door handle (5) out of retainer (6).	Ensure correct seating of door handle (5) in retainer (6).
5	Disconnect electrical connector at door handle (5).	Model 257, 290 with code 889 (KEYLESS-GO)
6	Remove door handle (5).
7	Install in the reverse order.
