Prepare Panoramic Roof Frame For Installation - AR77.21-P-0800-02FRX

Model 290 with code 416 (Panoramic sunroof)

	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
Topical note	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	Notes on safety-relevant components		AH00.00-Z-0019-01A

Courtesy of MERCEDES-BENZ USA

Prepare panoramic roof for installation

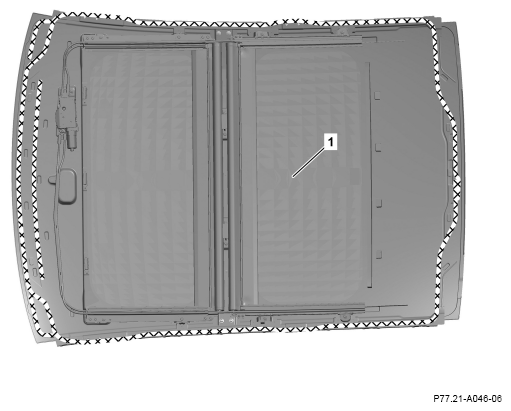

Do not touch hatched area with bare fingers. Keep free from dust, oil, grease, wax, dirt residues, and other adhesive components.

The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.

Only use materials from repair kit approved and always observe processing notes included.

The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.

1. Check panoramic roof (1) with all associated detachable parts for damage.
2. Install cup suction tools on outside of panoramic roof (1).

   Commercially available devices/tools

   Cup suction tool

3. Place panoramic roof (1) on suitable subsurface with inside pointing upward.

   Helper required.

4. Clean hatched areas on panoramic roof (1).

   Use cleaner only in hatched areas and let it dry completely.

5. Apply primer in hatched areas.

   Observe processing information for primer and flash-off time of at least 10 min.

   Otherwise the adhesive material will have difficulty adhering when installing the window.
