Prepare Panoramic Roof Frame Body Flange For Installation - AR77.21-P-0800-05FRX
Model 290 with code 416 (Panoramic sunroof)
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A |

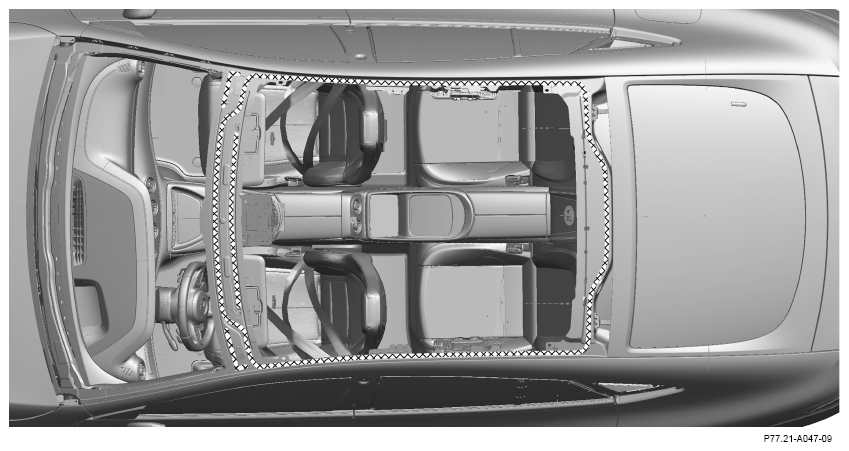

Do not touch hatched areas with bare fingers. Keep free from dust, oil, grease, wax, dirt residues, and other adhesive component parts.
Otherwise, the strength of the adhesively bonded connection is impaired and the required adhesion of the adhesive material is not ensured.
Only use materials from window repair kit approved and always observe processing notes included.
Otherwise, the strength of the adhesively bonded connection is impaired and the required adhesion of the adhesive material is not ensured.
If new parts were installed during a body repair in the area of the panorama roof frame, mask off bonding surfaces before painting.
Otherwise, the strength of the adhesively bonded connection is impaired and the required adhesion of the adhesive material is not ensured.
Ensure that adhesive material is applied only to present adhesive beads, which have been cut down, or to the original factory primer or repair primer approved by Daimler.
Otherwise, the strength of the adhesively bonded connection is impaired and the required adhesion of the adhesive material is not ensured.
Prepare body flange for panoramic roof
- Cut back residual adhesive material on the body flange to a height of max. 1 mm using a suitable scraper.
- Remove cut off adhesive material residues from the body flange.
- Repair paint damage on body flange.
Use only primers and paints approved by Daimler AG: https://portal.aftersales.i.daimler.com
- Apply primer in gluing area if glue residues are not present.
Observe processing notes for primer. Comply with flash-off time of at least 10 min.
Otherwise, there will be adhesion problems with the adhesive material when gluing in the panoramic roof.
Otherwise, the strength of the adhesively bonded connection is impaired and the required adhesion of the adhesive material is not ensured.
