Remove/Install Load Compartment Floor Front Section - AR68.80-P-0010FRX

Model 290

Shown without code MEW (Hybrid vehicle (plug-in, PHEV))

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown with code ME10 (Hybrid vehicle (plug-in, PHEV))

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1.1	Fold back seat backrests in the rear passenger compartment.	Model 290 with code 287 (Through-loading feature)
1.2	Remove partition in rear.	Model 290 except code 287 (Through-loading feature)	AR68.74-P-0651FRX

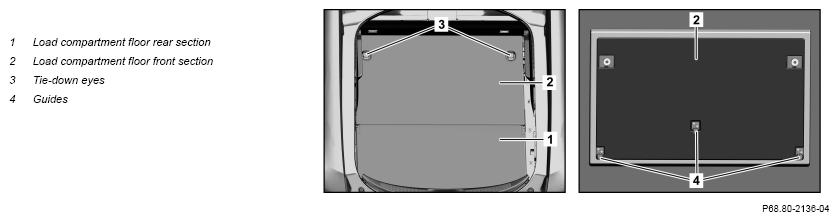

2	Remove load compartment floor rear section (1).
3	Unclip covers above tie-down eyes (3).
4	Remove tie-down eyes (3).	Bolt, cargo retainers/tie-down eye to body	*BA68.50-P-1001-03J

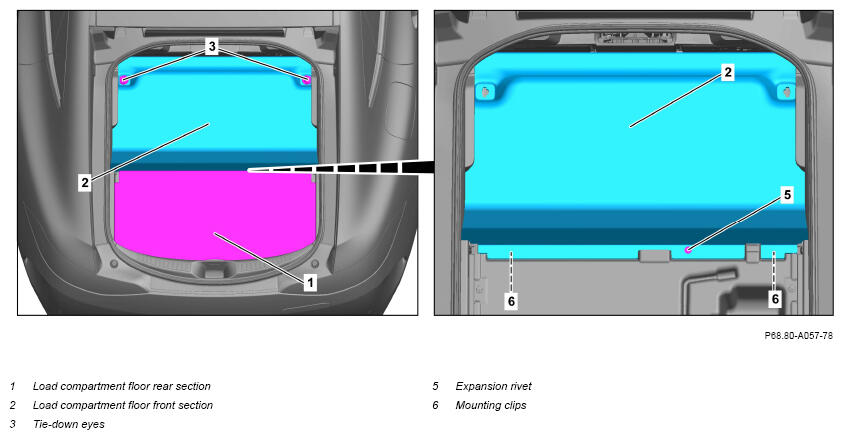

5	Remove expansion rivet (5).	Model 290 with code ME10 (Hybrid vehicle (plug-in, PHEV)) Dismantling tool	Fig 1
6.1	Lift load compartment floor front section (2) at front and remove toward rear.	Model 290 except code ME10 (Hybrid vehicle (plug-in, PHEV)) Ensure that guides (4) are seated correctly.
6.2	Unclip load compartment floor front section (2) at fastening clips (6) and remove.	Model 290 with code ME10 (Hybrid vehicle (plug-in, PHEV)) Dismantling tool	Fig 1
7	Install in the reverse order.
