Overview Of System Components For Electric Mirror - GF88.79-P-9996FR
Model 257, 290 up to model year 2021
Electrical mirror, shown on model 257.3

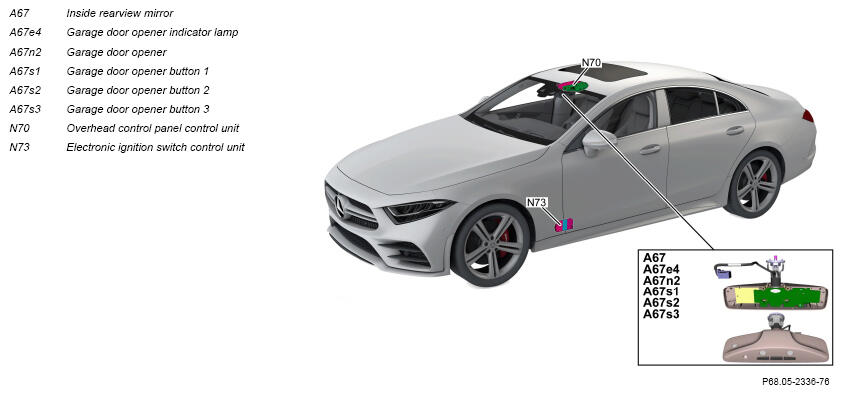

Garage door opener (with code 231 (Garage door opener) or code 232 (Garage door opener)), shown on model 257.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Head unit, component description | Model 257, 290 up to Model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRA | |
| Model 257, 290 up to Model year 2021 with code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRB | ||
| Component description for CDI control unit | Model 257 with engine 654.9 up to Model year 2021 N3/9 |
GF07.16-P-6000ORD | |
| Model 257 with engine 656.9 up to Model year 2021 N3/9 |
GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 290 with engine 177.9 up to Model year 2021 N3/10 |
GF07.61-P-6000MNL | |
| Model 257, 290 with engine 256.9 up to Model year 2021 N3/10 |
GF07.61-P-6000MRT | ||
| Model 257 with engine 264.9 up to Model year 2021 N3/10 |
GF07.61-P-6000MRG | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FR | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FR | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250FR | |
| Component description for driver seat control unit | Model 257, 290 up to Model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror)) Model 257, 290 up to Model year 2021 with code 278 (Fully electric front seats) N32/1 |
GF91.29-P-5231FR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FR | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Drivetrain control unit, component description | Model 257 with engine 654.9 up to Model year 2021 N127 |
GF54.21-P-2141ORD | |
| Model 257 with engine 656.9 up to Model year 2021 N127 |
GF54.21-P-2141OIA | ||
| Model 257, 290 with engine 256.9 up to Model year 2021 Model 290 with engine 177.9 up to Model year 2021 N127 |
GF54.21-P-2141LF | ||
| Model 257 with engine 264.9 up to Model year 2021 N127 |
GF54.21-P-2141MRP | ||
| Fully integrated transmission control electric controller unit control unit, component description | Model 257 with transmission 725.0 up to Model year 2021 Model 290 with transmission 725.0 (except 725.096) up to Model year 2021 Y38n4 |
GF27.60-P-5120ANR | |
| Model 290 with transmission 725.096 up to Model year 2021 Y38n4 |
GF27.60-P-5120ANS | ||
| Table of contents for function description of electric mirrors | GF88.79-P-0996FR |
