Separate Center Roof Paneling - Ar65.10-P-1000-02FRC

Model 290 with code 397 (Carbon roof)

Fig 1: Set Of Shields (222 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Further information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

1. Remove screws (3).
2. Remove nuts (2) and remove roof frame mounting supports.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

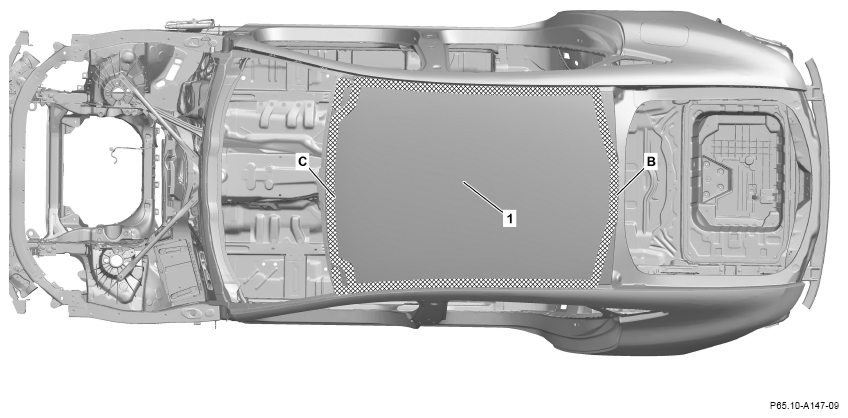

3. Insert cutting wire at point (B) through adhesively bonded connection (hatched area).
4. Cut adhesively bonded connection (hatched area) starting at the starting point (B), in both directions up to the end point (C).

   Carefully cut adhesively bonded connection (hatched area).

   The body may otherwise be damaged.

   Helper required.

   Protect adjacent surfaces with shield plates during cutting procedure.

5. Lift carbon roof (1) with suction lifters and remove.

   Helper required.
