Rear Roof Frame Installation - Ar65.20-P-1008-03FRX

Model 290

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

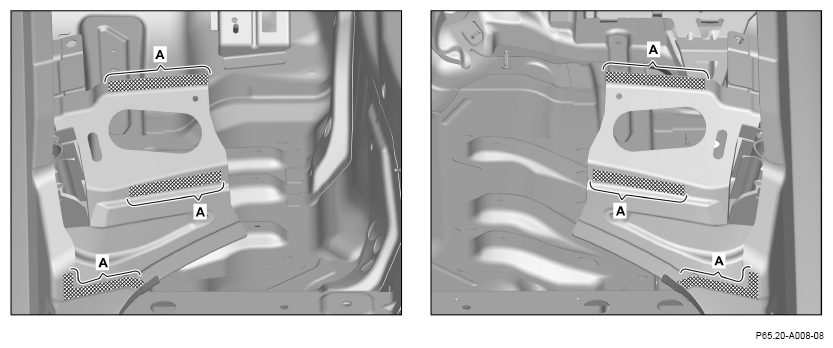

1. Apply 2-component adhesive on body in cross-hatched areas (area A).

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

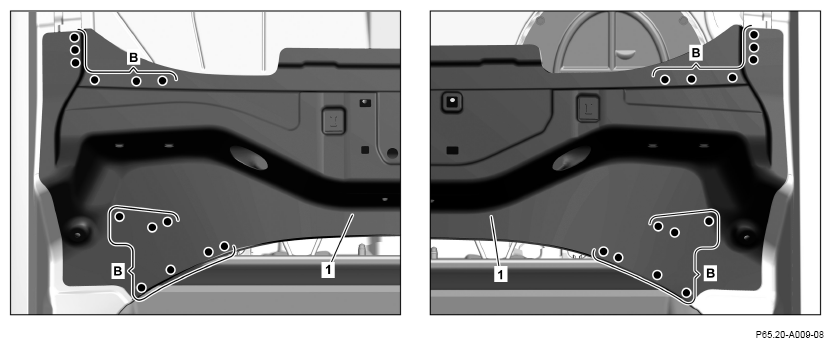

2. Rear roof frame (1) (areas B).

   Courtesy of MERCEDES-BENZ USA

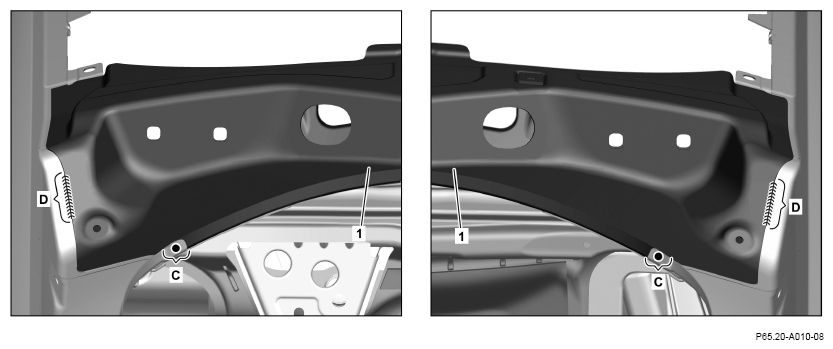

3. Rear roof frame (1) (areas C).
4. Rear roof frame (1) (areas D).

   Courtesy of MERCEDES-BENZ USA

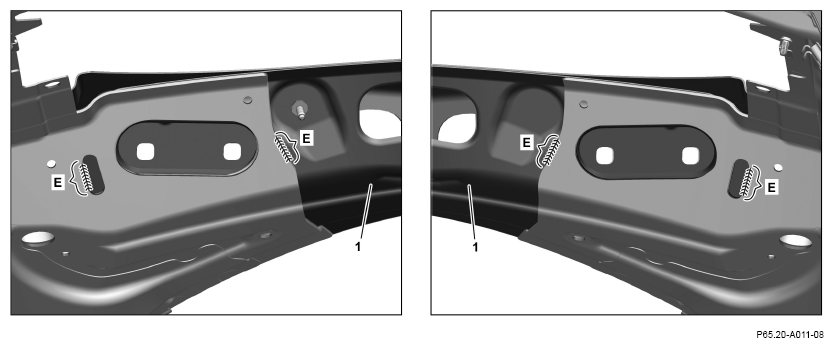

5. Rear roof frame (1) (areas E).
