Windshield CROSSMEMBER Prepare For Installation - Ar62.25-P-1120-03FR

Model 257, 290

The following operation steps are shown on model 257.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Courtesy of MERCEDES-BENZ USA

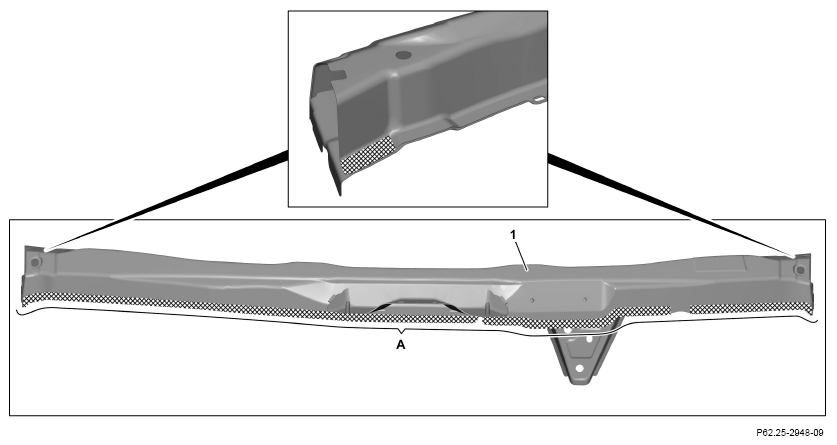

1. Grind mating surfaces on crossmember (1) down to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove grinding dust.
3. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust paint (area A).

   Otherwise adhesion problems may occur.

   Observe pretreatment of bonding surfaces.

   The following operation steps 4, 5, 6 are shown on the left side of the vehicle and must be similarly performed on the right side of the vehicle.

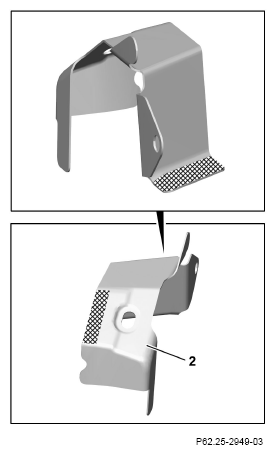

4. Grind mating surfaces on mounting console (2) down to bare metal in the crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

5. Remove grinding dust.
6. Coat insides of spot weld flanges with zinc dust paint.
