Carry Out Visual Inspection Of Structural Components - Ar62.10-P-1101-01FR
Model 257, 290
The following operation steps are shown on the right side of the vehicle and must be similarly performed on the left side of the vehicle.
The superordinate service document as well as the safety information in the service document must be observed.
 Courtesy of MERCEDES-BENZ USA
|

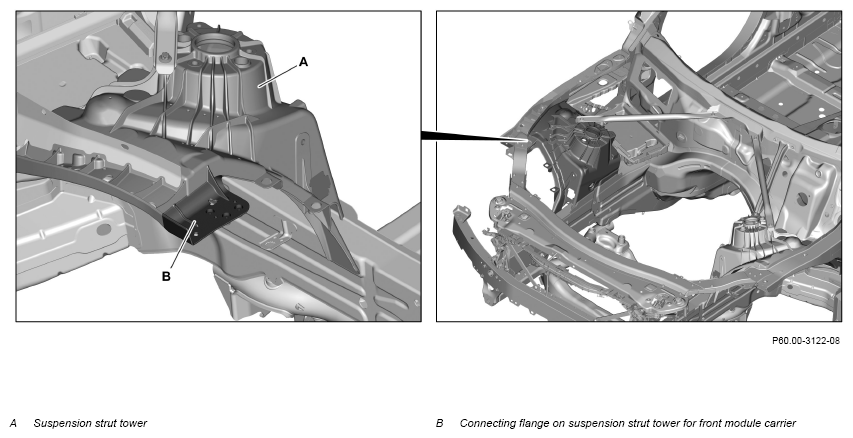

Overview of front end structural components

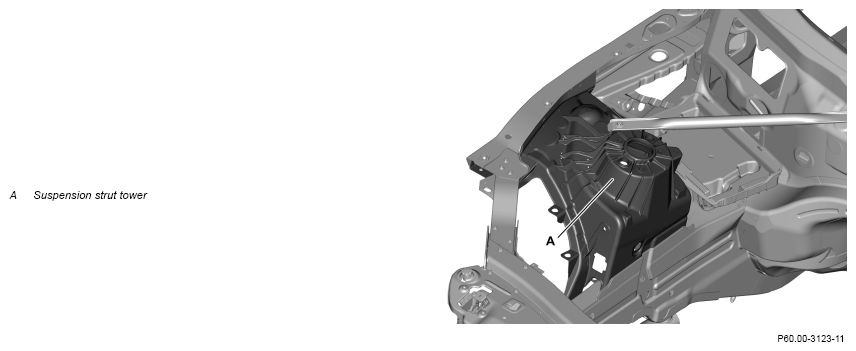

- Check status of suspension strut tower (A) and bolt holes on cross strut connection for.
Always
replace spring strut dome (A) in event of cracks, folds or deformation.
The required min. strength of the structural components can otherwise not be guaranteed.
Reshaping or repairing not
permissible.
 Courtesy of MERCEDES-BENZ USA
|

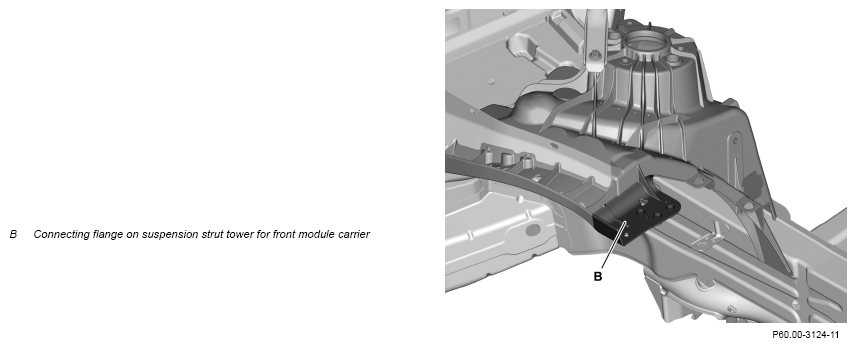

- Check status of connecting flange on suspension strut tower for front module carrier (B).
The suspension strut tower must basically
be replaced in the case of cracks, wrinkles or deformation of the connecting flange at the suspension strut tower for the front module carrier (B).
The required min. strength of the structural components can otherwise not be guaranteed.
Reshaping or repair are only permissible to a limited extent
.
 Courtesy of MERCEDES-BENZ USA
|

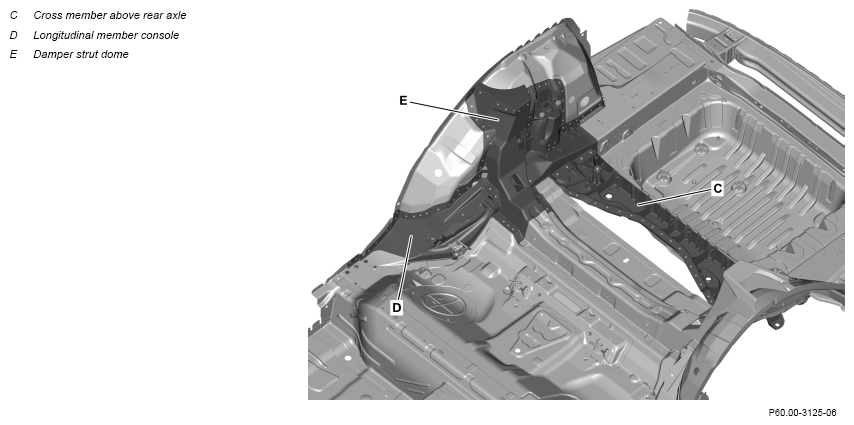

Overview for structural components for rear end
 Courtesy of MERCEDES-BENZ USA
|

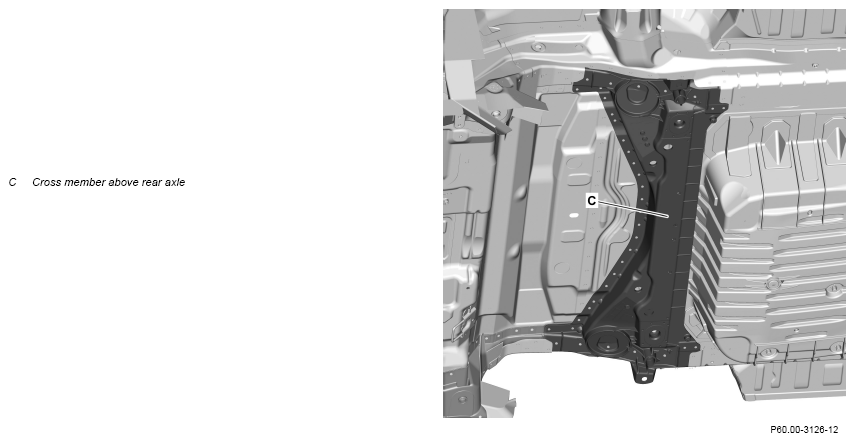

- Check status of crossmember above rear axle (C).
Always
replace crossmember above rear axle (C) in event of cracks, folds or deformation.
The required min. strength of the structural components can otherwise not be guaranteed.
Reshaping or repairing not
permissible.
 Courtesy of MERCEDES-BENZ USA
|

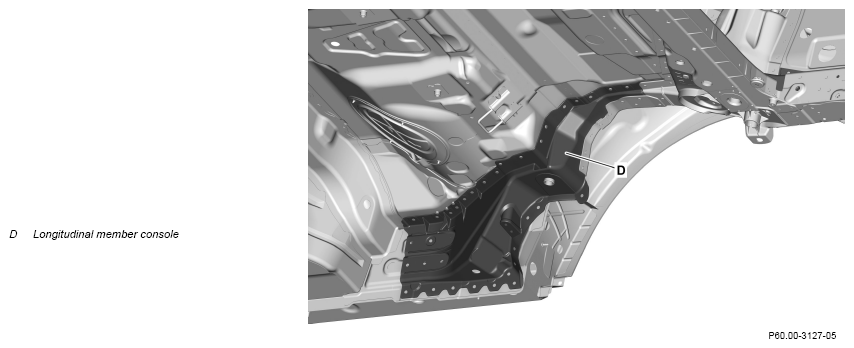

- Check status of longitudinal member console (D).
Always
longitudinal member console (D) in event of cracks, folds or deformation.
The required min. strength of the structural components can otherwise not be guaranteed.
Reshaping or repairing not
permissible.
 Courtesy of MERCEDES-BENZ USA
|

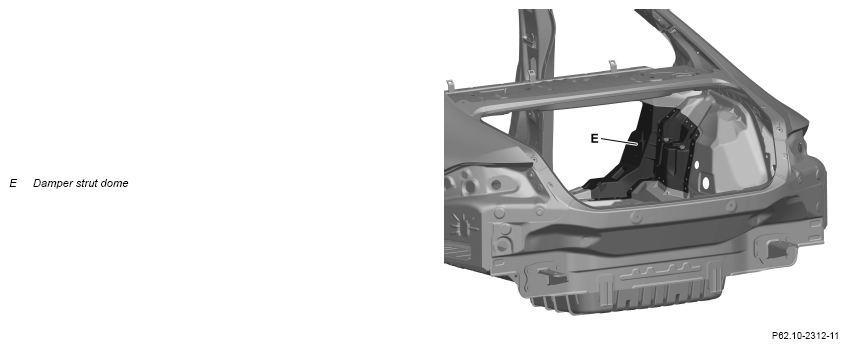

- Check status of damper strut dome (E).
Always
replace damper strut dome (E) in event of cracks, folds or deformation.
The required min. strength of the structural components can otherwise not be guaranteed.
Reshaping or repairing not
permissible.
 Courtesy of MERCEDES-BENZ USA
|
