Function Schematic, Actuate Rear Fog Light - PE82.10-P-2514-97D
Model 213, 238, 257, 290 as of model year 2021
| code: | Designation: | position: |
|---|---|---|
| 1 | button Fog tail light, status | 9A |
| 2 | terminal 15, status | 9E |
| 3 | pendant detection, status | 9H |
| 4 | rear fog light, request | 20J |
| 4 | rear fog light, request | 20F |
| 5 | rear fog light, control | 26J |
| 5 | rear fog light, control | 26F |
| 6 | indicator light, request | 20C |
| 6 | indicator light, request | 26D |
| 7 | image data, signal | 32D |

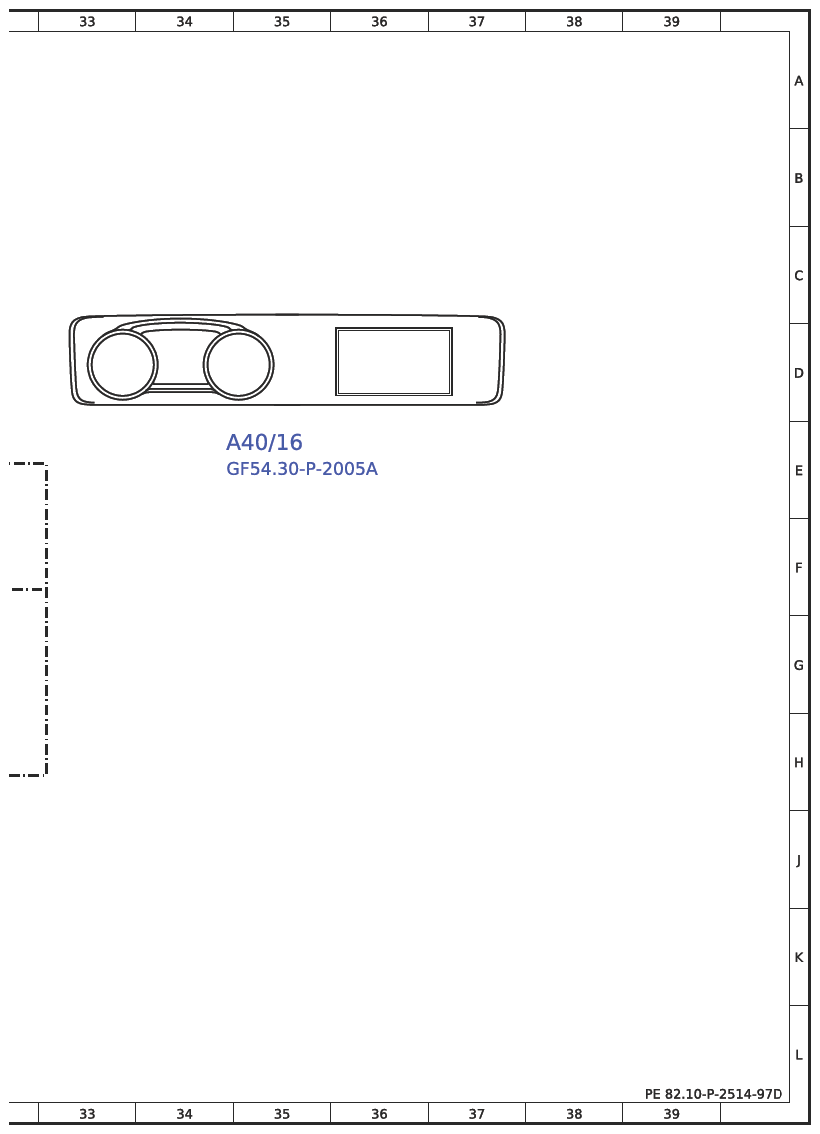

| A40/16 | Display Group Head Unit/Instrument Cluster | 35E |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 15K |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 15F |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 8E |
| CAN B | Interior CAN | 15D |
| CAN B | Interior CAN | 18D |
| CAN HMI2 | user interface-CAN 2 | 24D |
| code 550 | hitch | 4G |
| code 550 | hitch | 21J |
| code F213 | Class 213 | 30G |
| code F238 | Class 238 | 30G |
| code F257 | SERIES 257 | 30G |
| code F290 | Series 290 | 30E |
| E3/1 | Rear Left Inner Light Unit | 31H |
| E3/23 | Rear fog light left | 31F |
| E4/1 | light unit rear right inside | 31H |
| E4/23 | Rear fog light right | 31F |
| HSVL | High-Speed-Video-Link | 31D |

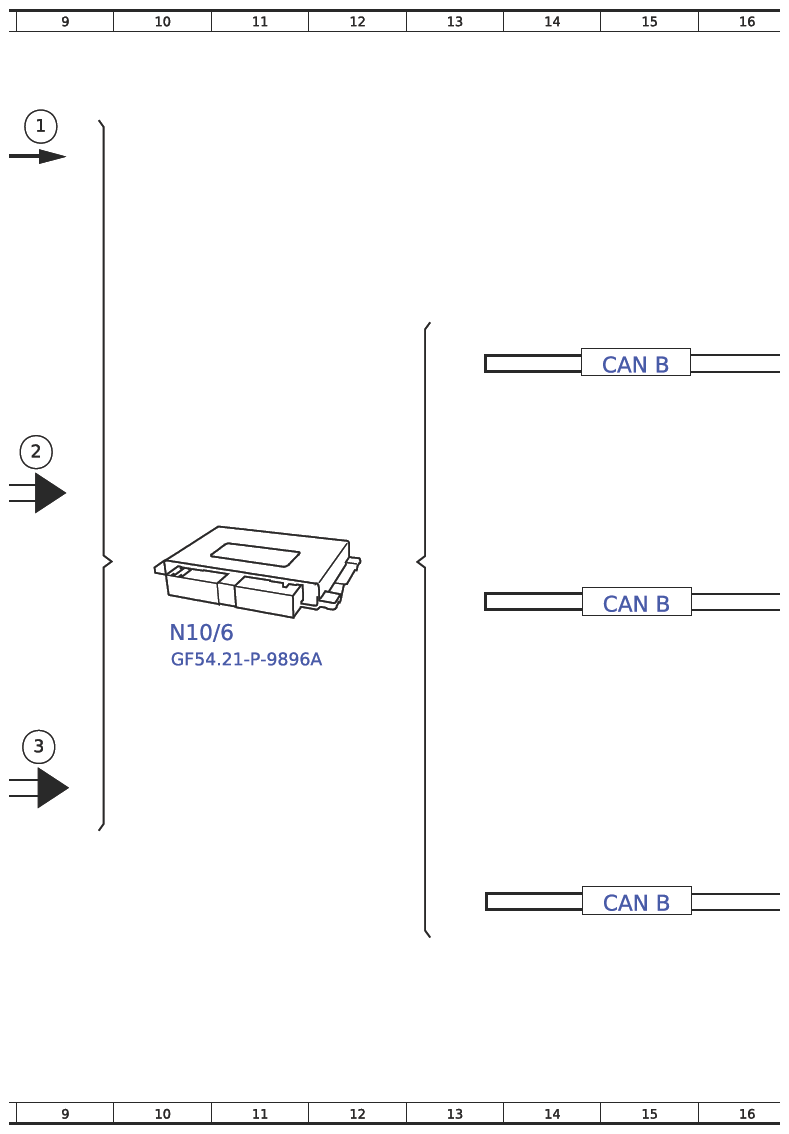

| N10/6 | control unit SAM front | 10G |

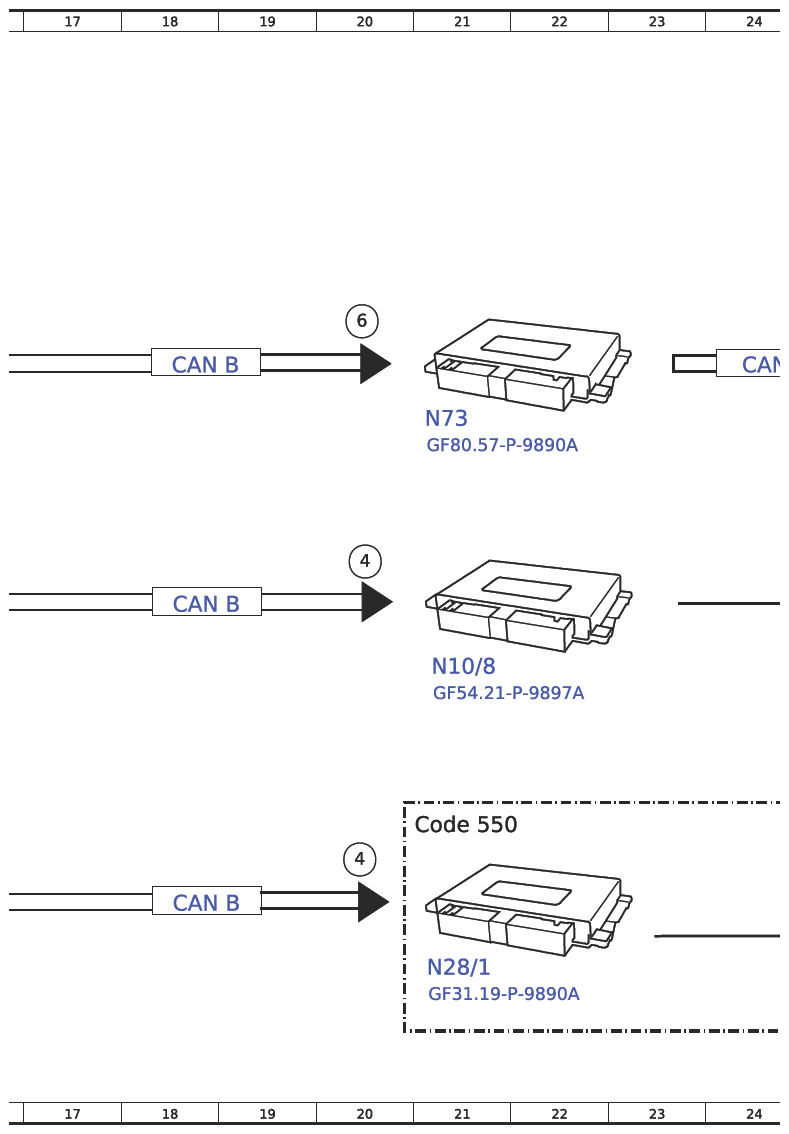

| N10/8 | control unit SAM rear | 21G |

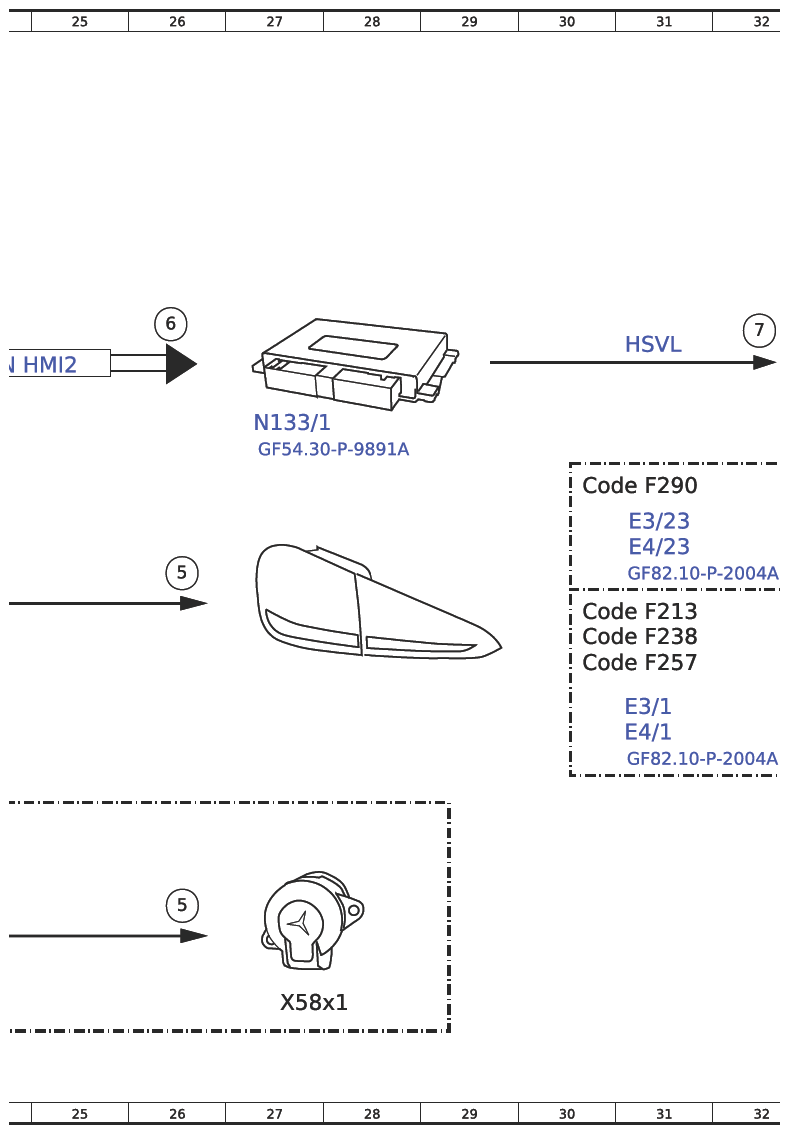

| N133/1 | Instrument Cluster Control Unit | 27E |
| N28/1 | Trailer Detection Control Unit | 4J |
| N28/1 | Trailer Detection Control Unit | 21K |
| N73 | electronic ignition switch control unit | 4F |
| N73 | electronic ignition switch control unit | 21E |

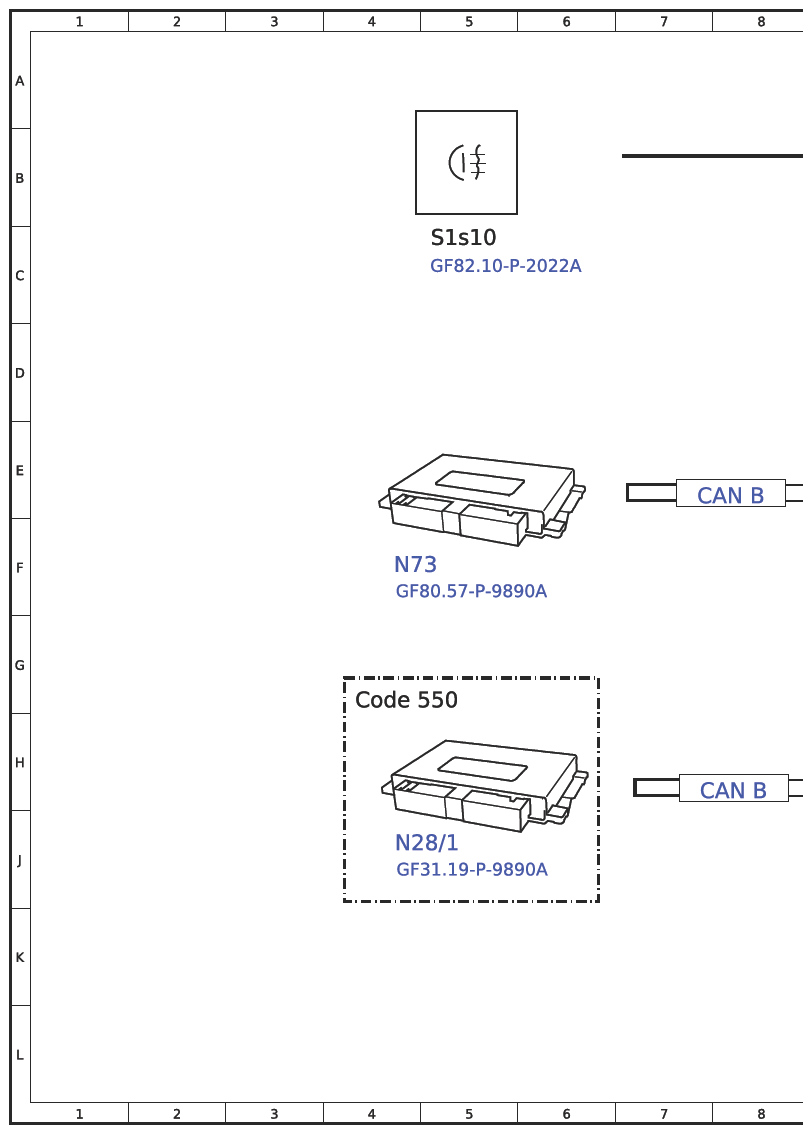

| S1s10 | button Fog tail light | 5C |
| X58x1 | trailer socket | 27L |
