Function Schematic, Actuate Low Beams - PE82.10-P-2504-97A
Model 118, 167, 177, 243, 247, 293
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 17B |
| 2 | Low beams, request | 17C |
| 2 | Low beams, request | 25F |
| 2 | Low beams, request | 23H |
| 2 | Low beams, request | 17D |
| 3 | Circuit 15, status | 17F |
| 4 | Engine running, signal | 16F |
| 4 | Engine running, signal | 12F |
| 4 | Engine running, signal | 8F |
| 5 | Drivetrain operational, signal | 16F |
| 5 | Drivetrain operational, signal | 11F |
| 6 | Vehicle speed, signal | 15F |
| 6 | Vehicle speed, signal | 12J |
| 7 | Low beams, actuation | 25C |
| 7 | Low beams, actuation | 22B |
| 8 | Indicator lamp, request | 22H |
| 8 | Indicator lamp, request | 29G |
| 8 | Indicator lamp, request | 29J |
| 9 | Image data, signal | 34H |

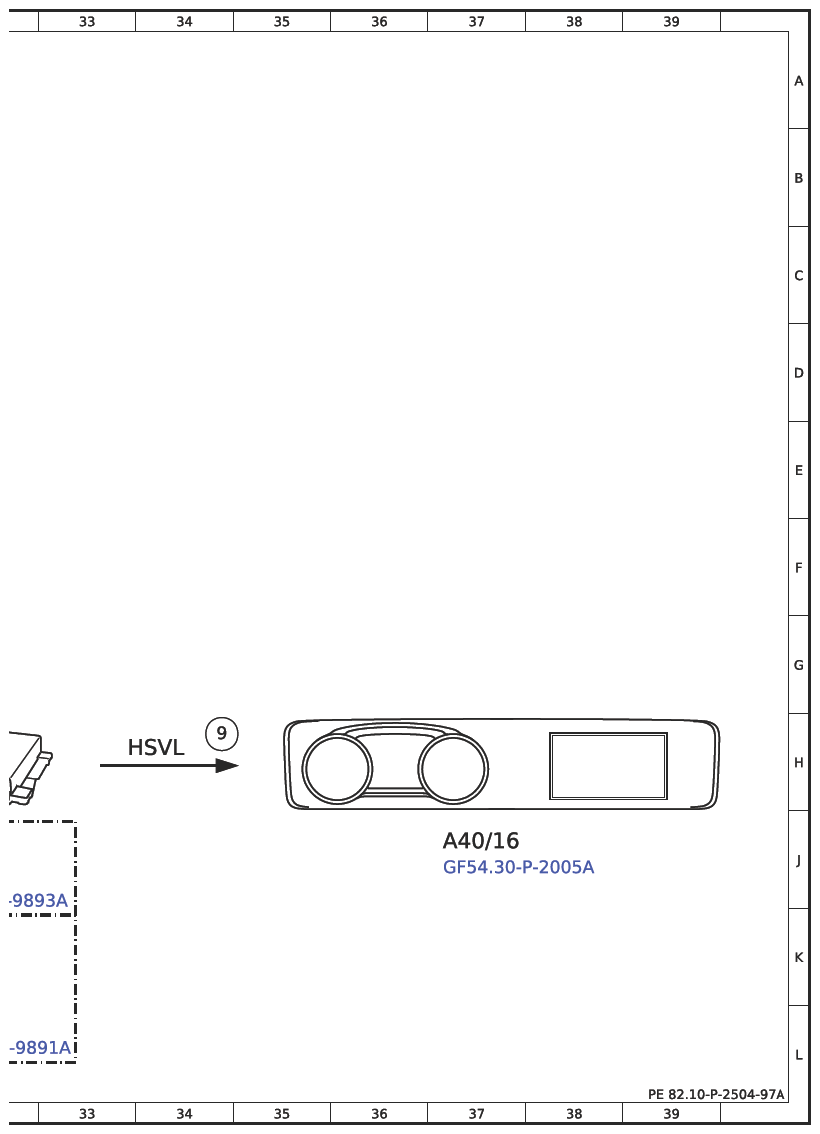

| A40/16 | Head unit/instrument cluster display cluster | 37J |
| B38/2 | Rain/light sensor | 6E |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 22H |
| CAN C | CAN for engine | 7G |
| CAN HMI | User interface CAN | 27H |
| CAN HMI2 | CAN 2 for user interface | 27J |
| CAN PER | CAN for peripherals | 24G |
| Code 545 | Connect 5 (NTG6) | 30J |
| Code 547 | Connect 20 Entry (NTG6) | 30K |
| Code 548 | Connect 20 MID (NTG6) | 30K |
| Code 549 | Connect 20 HIGH (NTG6) | 30K |
| Code 631 | Static LED headlamp, left-hand traffic | 23D |
| Code 632 | Static LED headlamp, right-hand traffic | 23D |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 23E |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 23E |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 23E |
| Code F167 | Model series 167 | 1B |
| Code F167 | Model series 167 | 1A |
| Code F167 | Model series 167 | 18J |
| Code F243 | Model series 243 | 1C |
| Code F243 | Model series 243 | 1A |
| Code F243 | Model series 243 | 18G |
| Code F293 | Model series 293 | 1J |
| Code F293 | Model series 293 | 1H |
| Code F293 | Model series 293 | 18J |
| Code F293 | Model series 293 | 8D |
| Code F293 | Model series 293 | 8C |
| Code F293 | Model series 293 | 26G |
| Code F293 | Model series 293 | 27H |

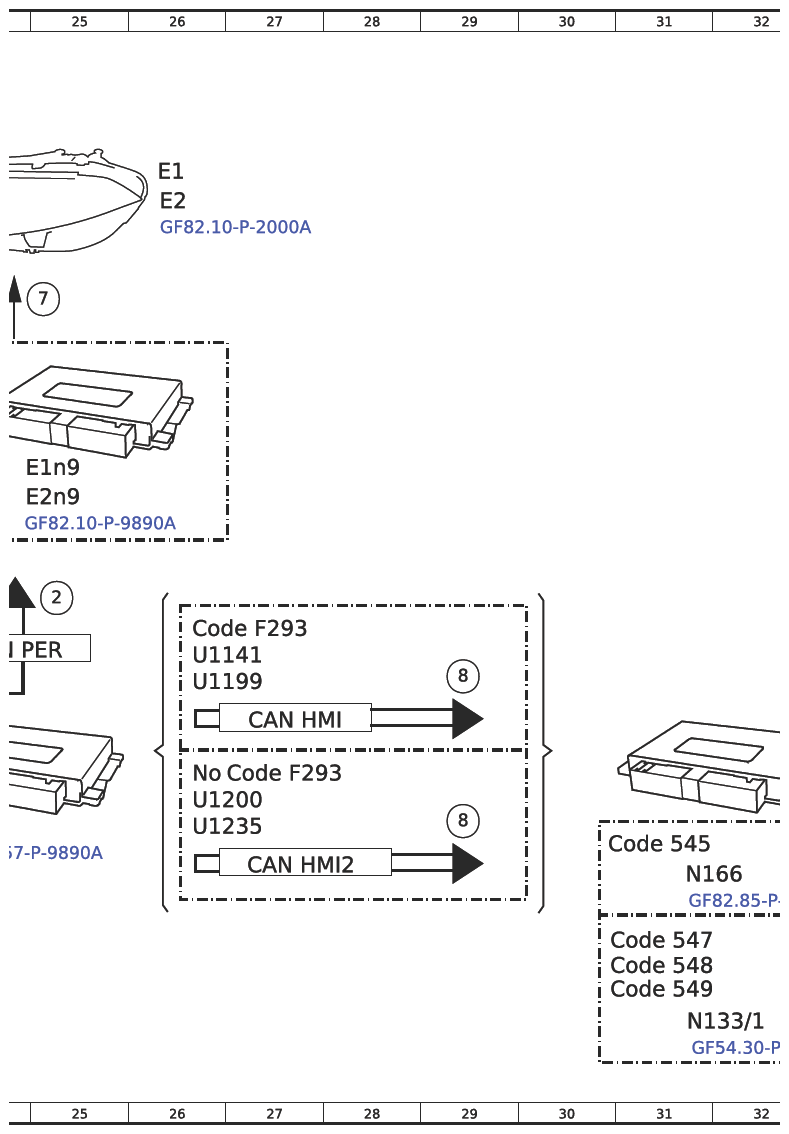

| E1 | Left front lamp unit | 26B |
| E1n9 | Left headlamp control unit | 24E |
| E2 | Right front lamp unit | 26B |
| E2n9 | Right headlamp control unit | 24E |
| Flex E | Chassis FlexRay | 9J |
| Flex E | Chassis FlexRay | 11G |
| HSVL | High-speed video link | 34H |
| LIN | Local Interconnect Network | 9E |
| LIN | Local Interconnect Network | 14E |
| LIN B16 | Rain and light sensor LIN | 9C |
| LINB16 | Rain and light sensor LIN | 14C |

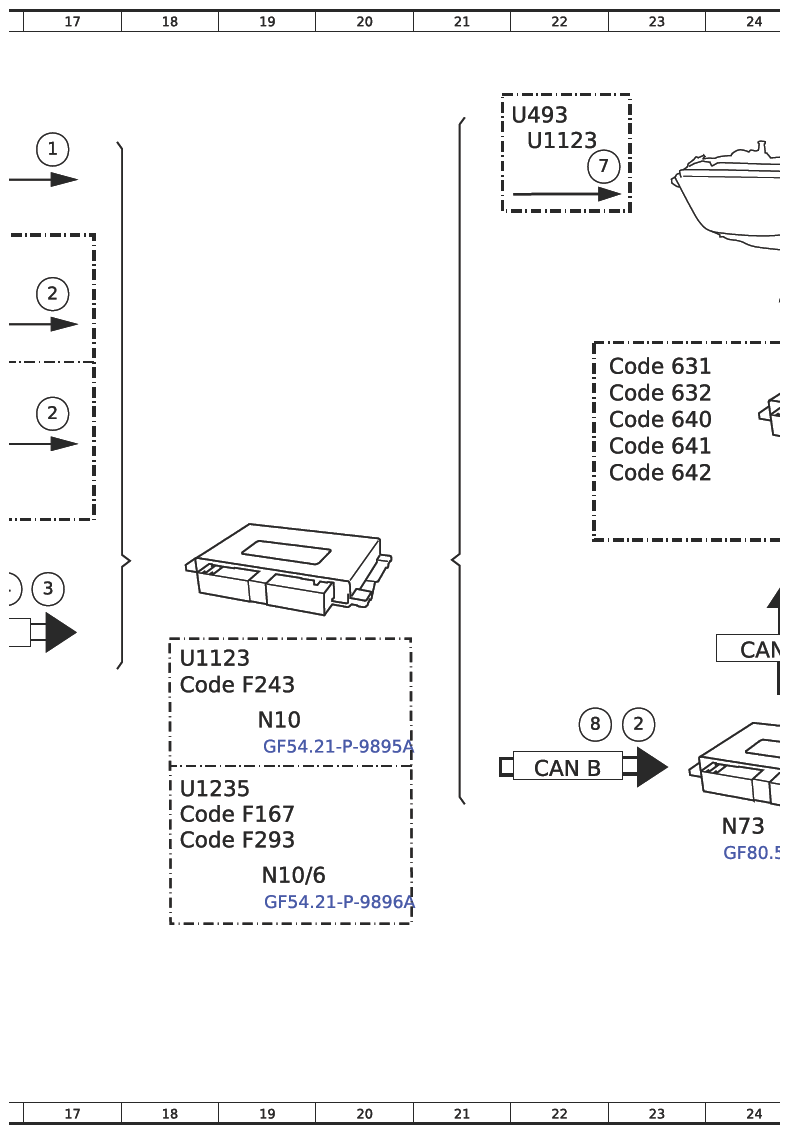

| N10 | Central control module | 19H |
| N10/6 | Front SAM control unit | 19J |

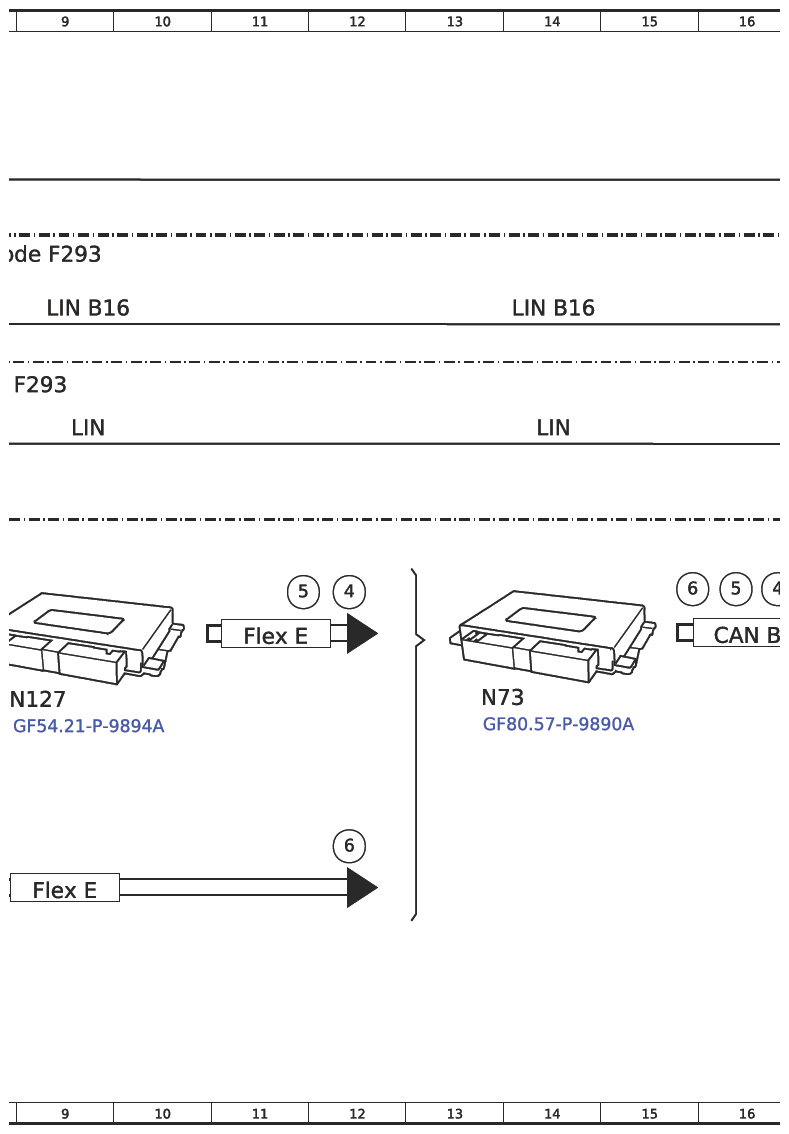

| N127 | Drivetrain control unit | 9G |
| N133/1 | Instrument cluster control unit | 31L |
| N166 | Head unit/instrument cluster control unit | 31J |
| N3/10 | Engine management control unit | 2G |
| N3/9 | CDI control unit | 2G |
| N30/4 | Electronic Stability Program (ESP®) control unit | 2J |
| N30/8 | Regenerative braking system control unit | 2K |
| N73 | EIS [EZS] control unit | 13G |
| N73 | EIS [EZS] control unit | 24J |

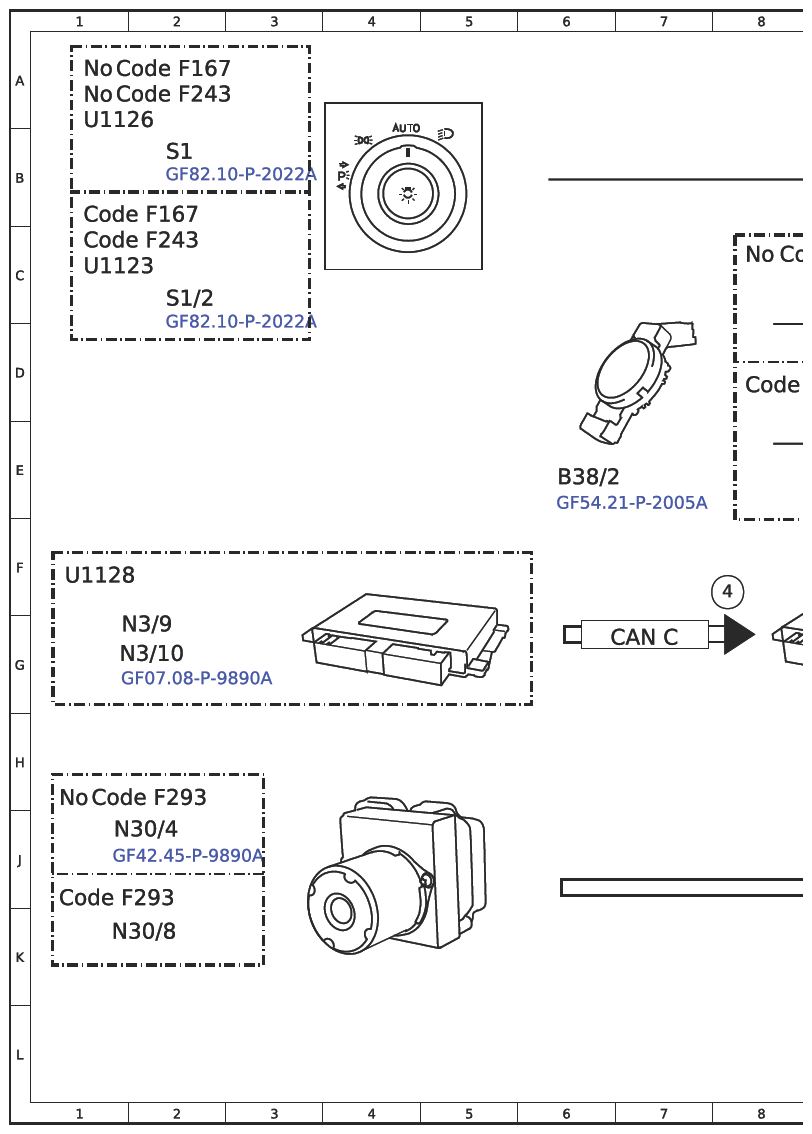

| S1 | Exterior lights switch | 2B |
| S1/2 | Exterior lights and electric parking brake switch group | 2C |
| U1123 | Valid for model 118, 177, 247 | 22B |
| U1123 | Valid for model 118, 177, 247 | 1C |
| U1123 | Valid for model 118, 177, 247 | 18G |
| U1126 | Valid except model 118, 177, 247 | 1A |
| U1128 | Valid for combustion engine | 1F |
| U1141 | Valid except model 213, 238, 257, 290 | 26G |
| U1199 | Valid for vehicles up to facelift | 26G |
| U1200 | Valid for vehicles as of facelift | 26H |
| U1235 | Valid for model 213, 238, 257, 290 | 18H |
| U1235 | Valid for model 213, 238, 257, 290 | 26J |
| U493 | Valid for halogen lamp unit | 22A |
