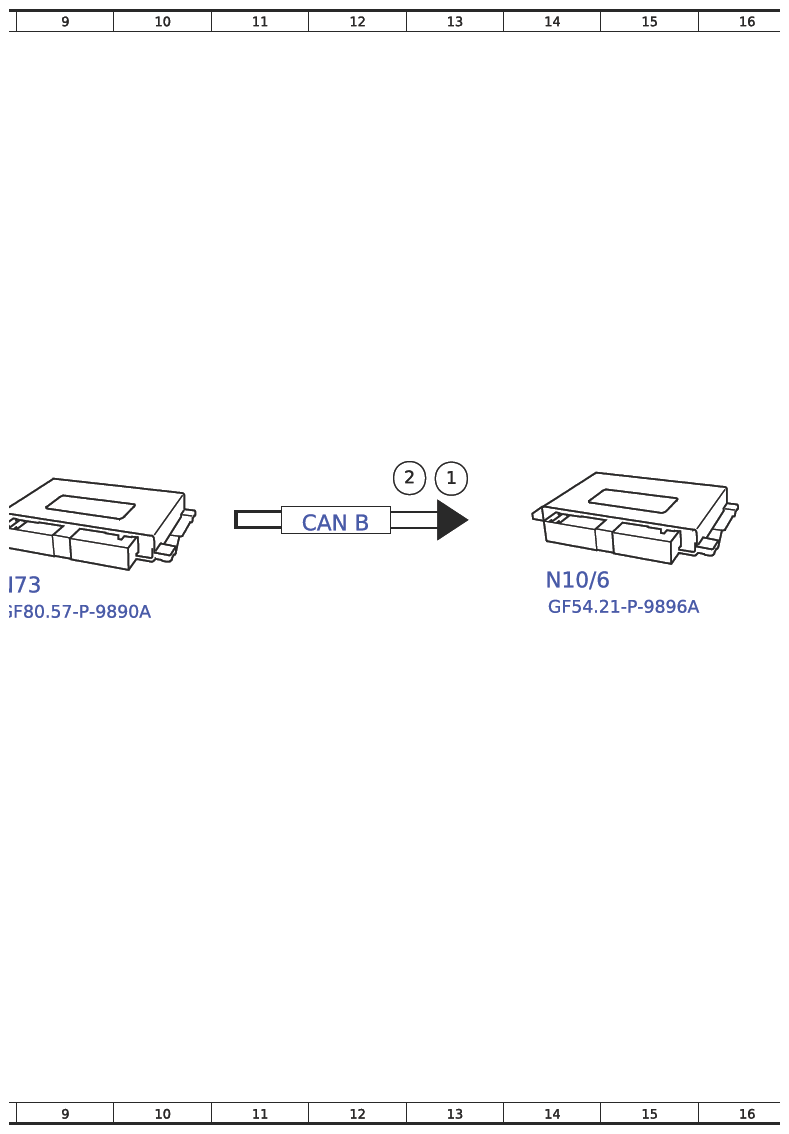

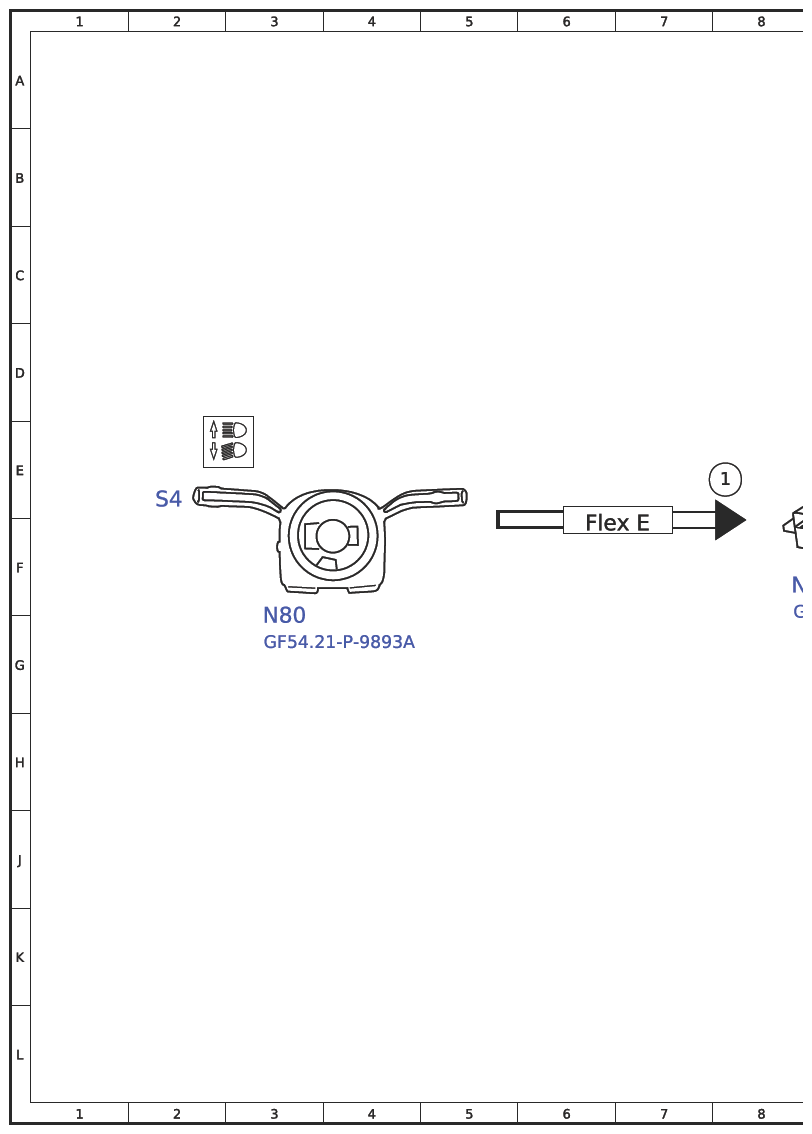

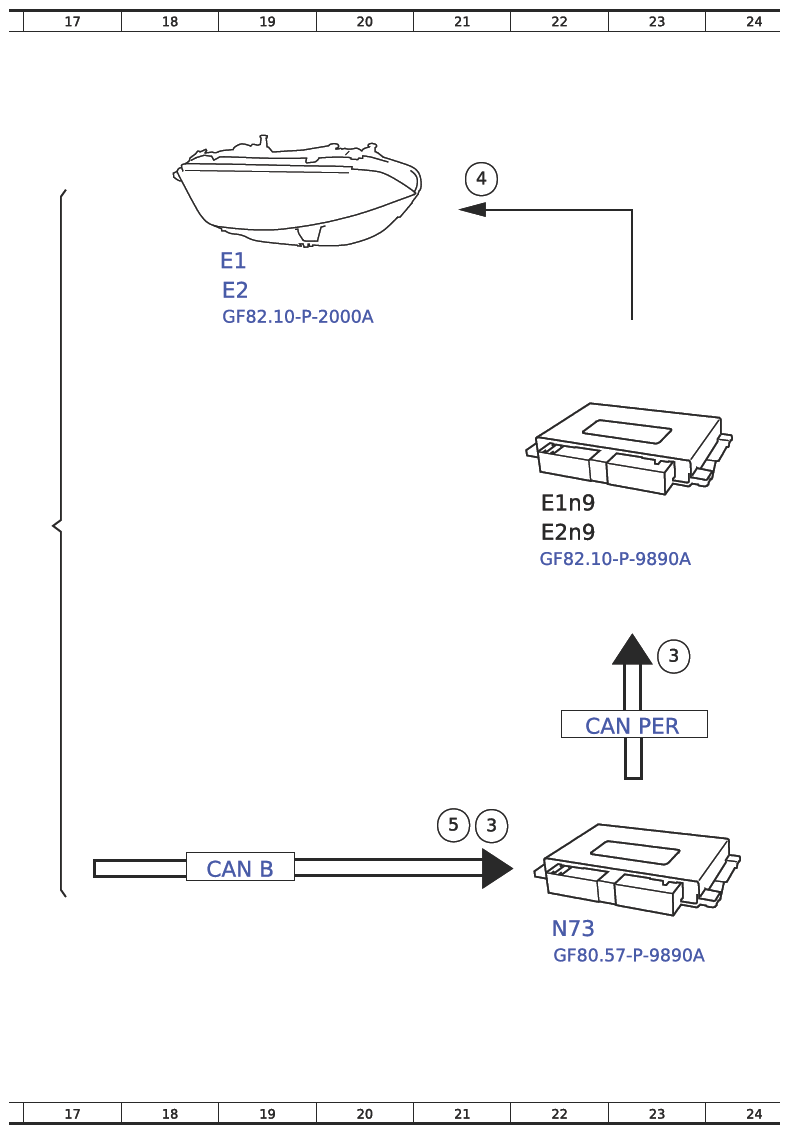

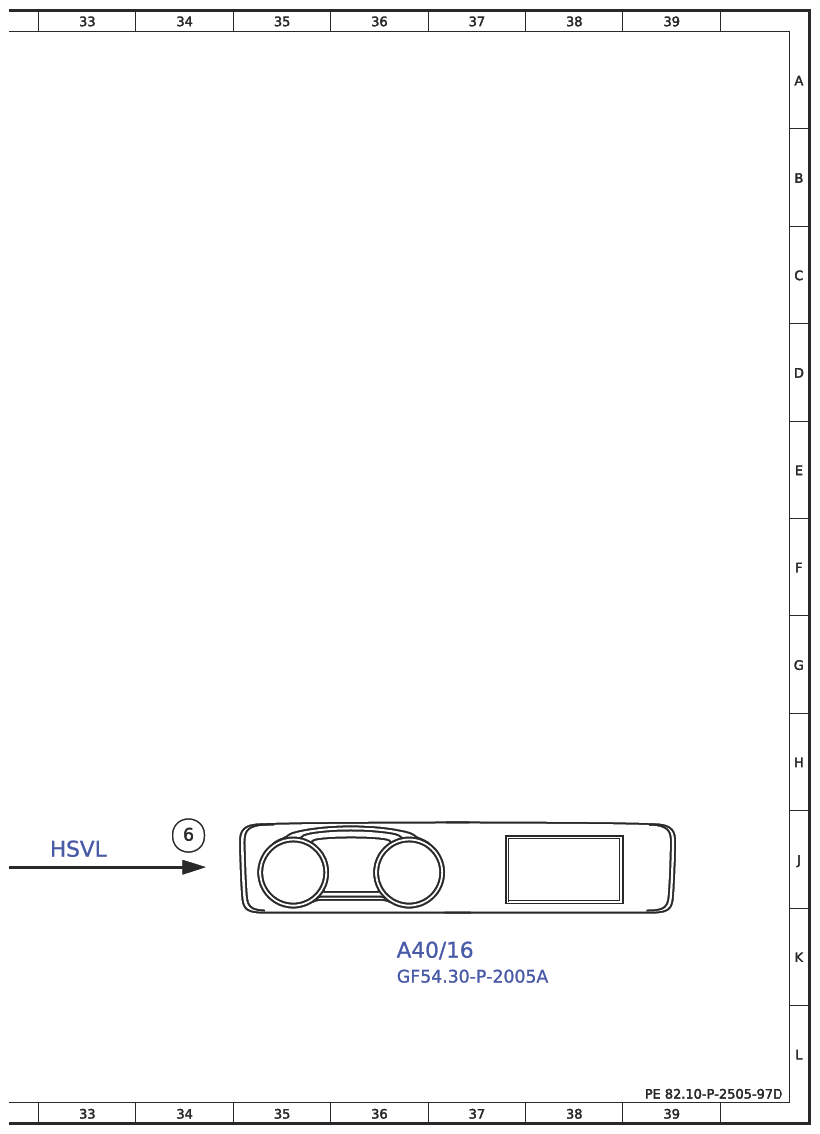

Function Schematic, Actuate High Beams - PE82.10-P-2505-97D
Model 213, 238, 257, 290 as of model year 2021
| code: | Designation: | position: |
|---|---|---|
| 1 | combo switch, status | 13E |
| 1 | combo switch, status | 8E |
| 2 | terminal 15, status | 13E |
| 3 | high beam, request | 23G |
| 3 | high beam, request | 21J |
| 4 | high beam, control | 21B |
| 5 | indicator light, request | 28J |
| 5 | indicator light, request | 21J |
| 6 | image data, signal | 34J |
| A40/16 | Display Group Head Unit/Instrument Cluster | 36K |
| CAN B | Interior CAN | 19J |
| CAN B | Interior CAN | 12F |
| CAN HMI2 | user interface-CAN 2 | 26J |
| CAN PER | peripheral CAN | 23H |
| E1 | front left light unit | 19C |
| E1n9 | Headlight control unit left | 22E |
| E2 | front right light unit | 19C |
| E2n9 | right headlight control unit | 22F |
| Flex E | Chassis-FlexRay | 6F |
| HSVL | High-Speed-Video-Link | 33J |
| N10/6 | control unit SAM front | 14F |
| N133/1 | Instrument Cluster Control Unit | 29K |
| N73 | electronic ignition switch control unit | 8F |
| N73 | electronic ignition switch control unit | 22K |
| N80 | casing pipe module control unit | 3G |
| S4 | combo switch | 2E |
