Function Schematic, Actuate Brake Lights - PE82.10-P-2512-97A
Model 118, 167, 177, 243, 247, 293
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|

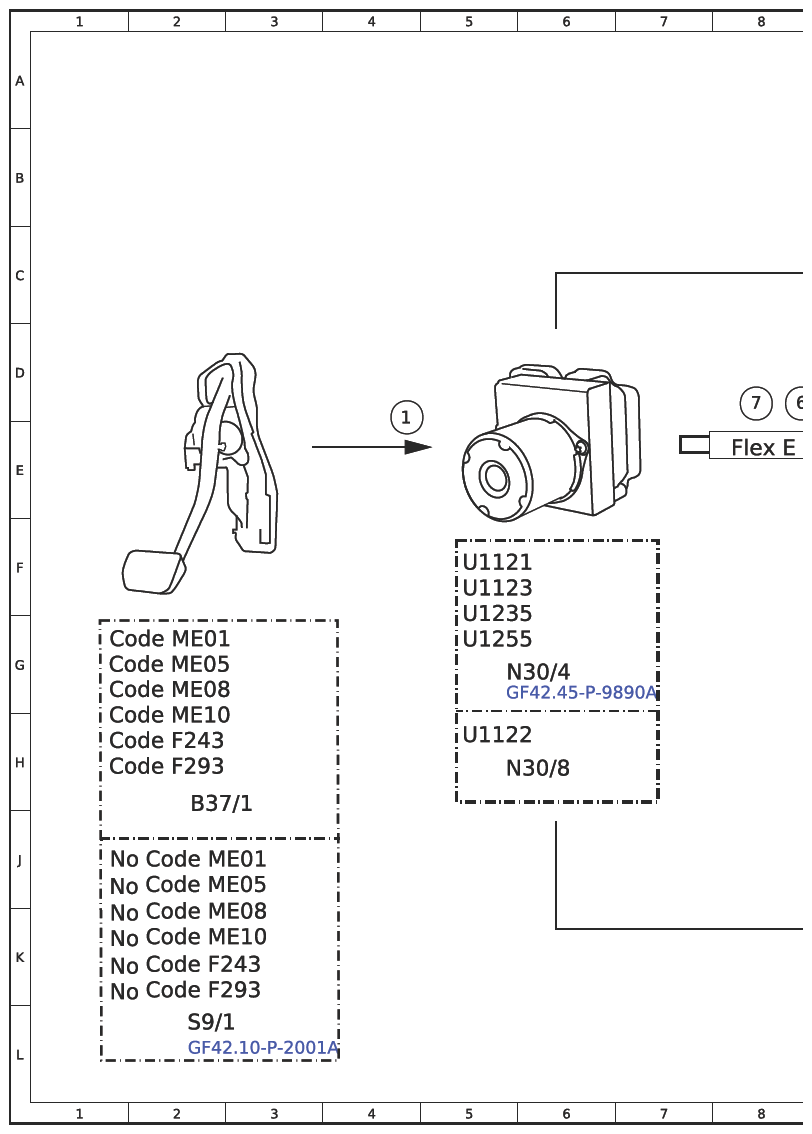

| 1 | Brake light switch, status | 4E |
| 2 | Circuit 15, status | 14D |
| 3 | Service brake, status | 9D |
| 3 | Service brake, status | 14D |
| 3 | Service brake, status | 22H |
| 4 | Circuit 54, status | 14C |
| 4 | Circuit 54, status | 22J |
| 5 | Brake lights, actuation | 27H |
| 5 | Brake lights, actuation | 22C |
| 6 | Vehicle speed, signal | 8D |
| 6 | Vehicle speed, signal | 22H |
| 6 | Vehicle speed, signal | 13D |
| 7 | Emergency stop, signal | 8D |
| 7 | Emergency stop, signal | 13D |
| 7 | Emergency stop, signal | 21H |
| 8 | Brake light dark phase, signal | 22F |
| B37/1 | SBC pedal value sensor | 2J |

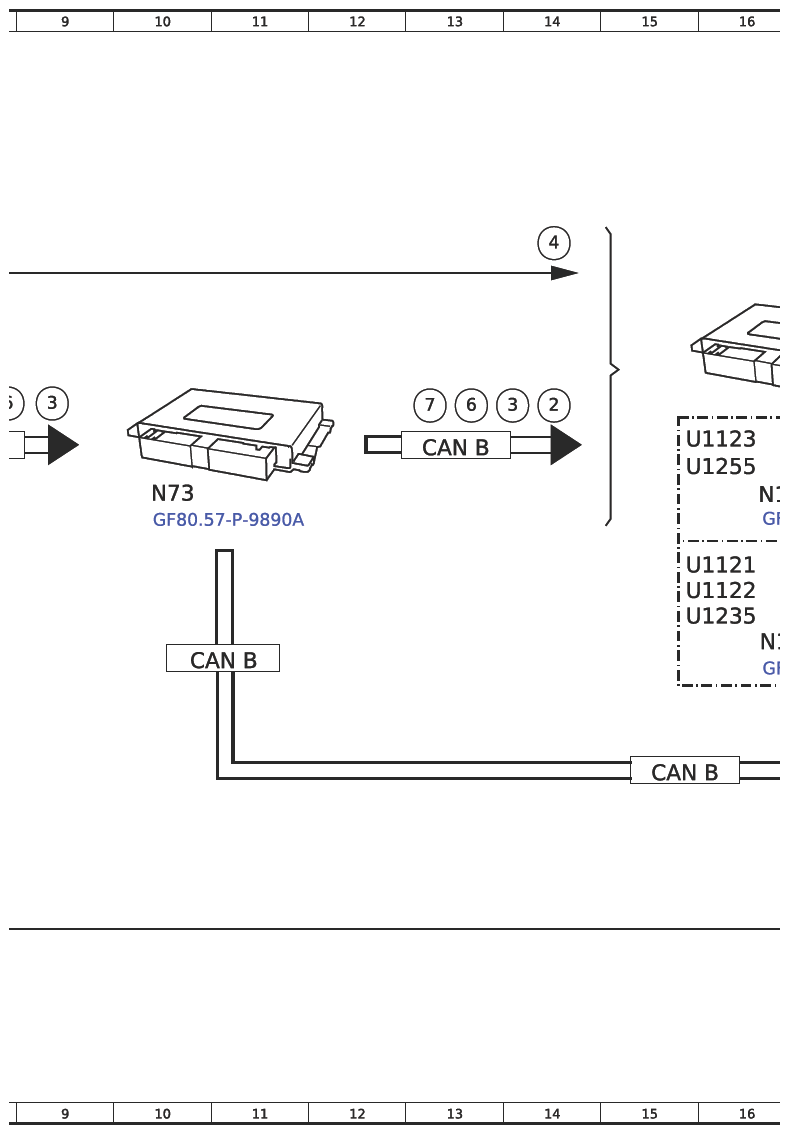

| CAN B | Interior CAN | 10G |
| CAN B | Interior CAN | 13E |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 15H |
| Code 550 | Trailer hitch | 23G |
| Code F177 | Model series 177 | 28H |
| Code F177 | Model series 177 | 28H |
| Code F243 | Model series 243 | 1H |
| Code F243 | Model series 243 | 2K |
| Code F293 | Model series 293 | 1H |
| Code F293 | Model series 293 | 2K |
| Code ME01 | Electric motor | 2J |
| Code ME01 | Electric motor | 1G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 2J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 1G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 2K |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 1G |
| Code ME10 | Hybrid vehicle | 1H |
| Code ME10 | Hybrid vehicle | 2K |

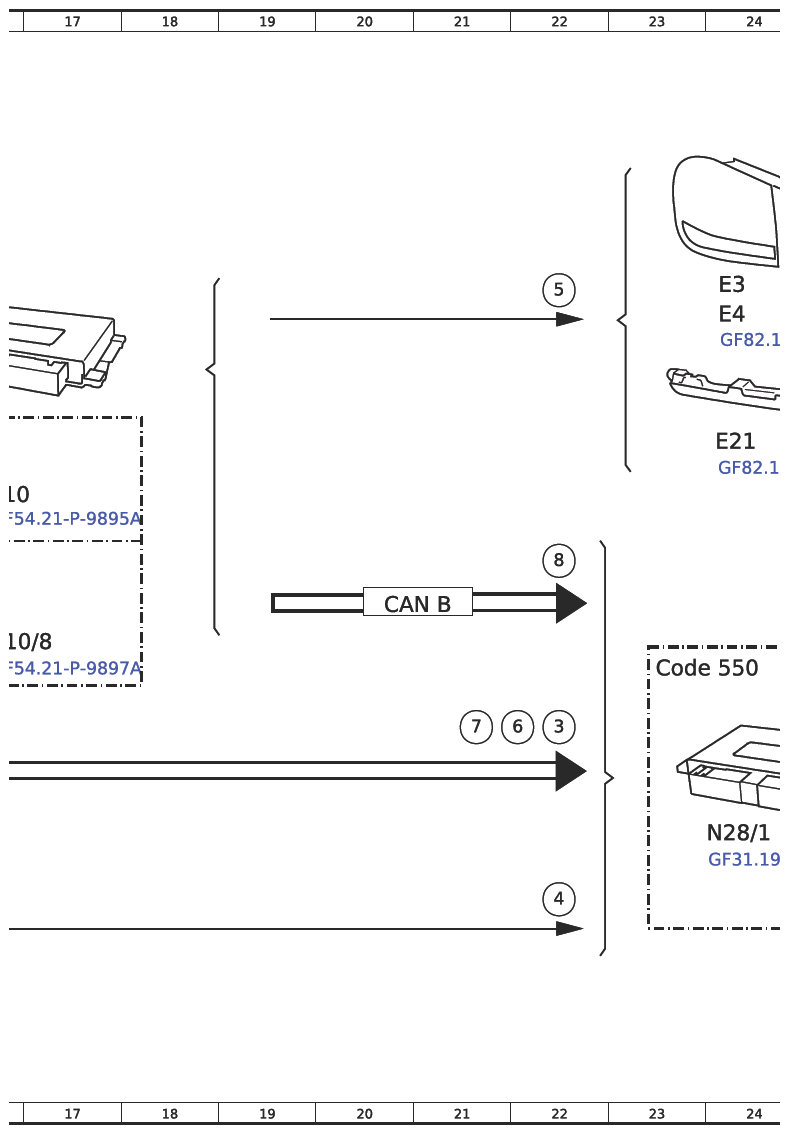

| E21 | Center high-mounted stop lamp | 24E |
| E3 | Left tail lamp | 24C |
| E4 | Right rear lamp unit | 24C |
| Flex E | Chassis FlexRay | 8E |
| N10 | Central control module | 16E |
| N10/8 | Rear SAM control unit | 16G |
| N28/1 | Trailer recognition control unit | 24J |
| N30/4 | Electronic Stability Program (ESP®) control unit | 6G |
| N30/8 | Regenerative braking system control unit | 6H |
| N73 | EIS [EZS] control unit | 10E |
| S9/1 | Stop lamp switch | 2L |
| U1121 | Valid for model 167 | 5F |
| U1121 | Valid for model 167 | 15F |
| U1122 | Valid for model 293 | 5H |
| U1122 | Valid for model 293 | 15F |
| U1123 | Valid for model 118, 177, 247 | 5F |
| U1123 | Valid for model 118, 177, 247 | 15E |
| U1235 | Valid for model 213, 238, 257, 290 | 5G |
| U1235 | Valid for model 213, 238, 257, 290 | 15G |
| U1255 | Valid for model 243 | 5G |
| U1255 | Valid for model 243 | 15E |

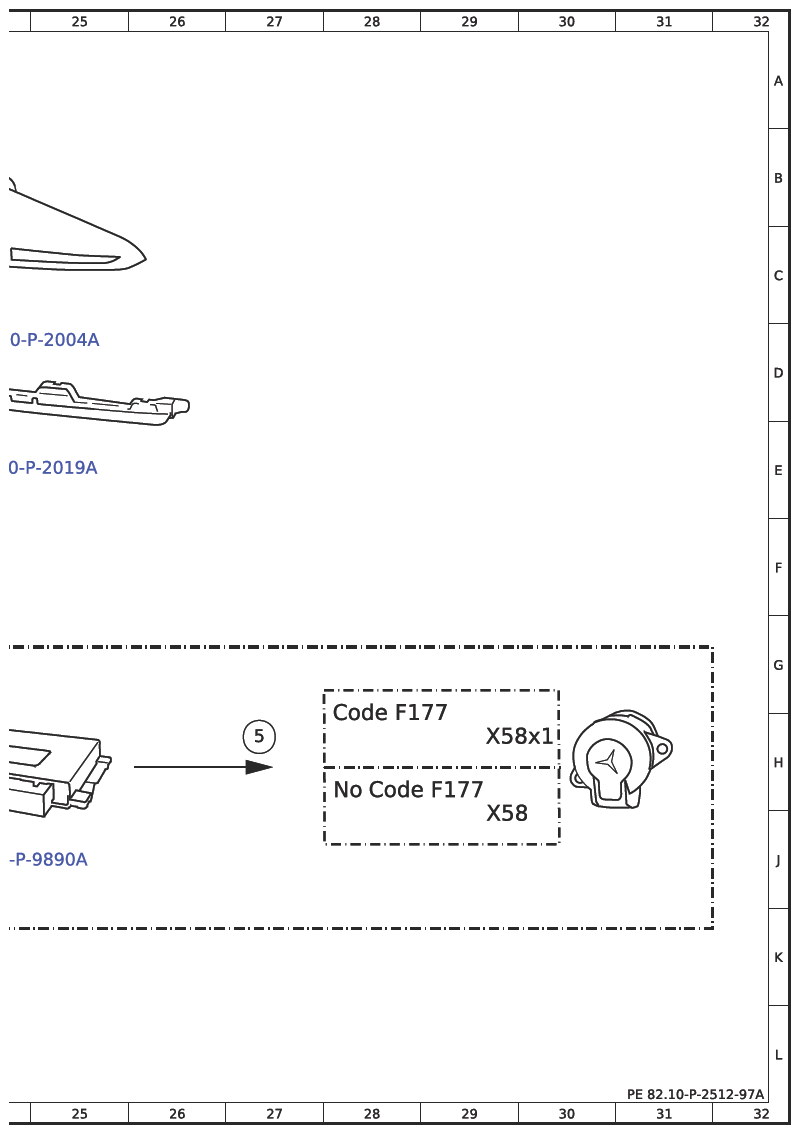

| X58 | Trailer hitch socket (13-pin) | 29J |
| X58x1 | Trailer socket | 29H |
