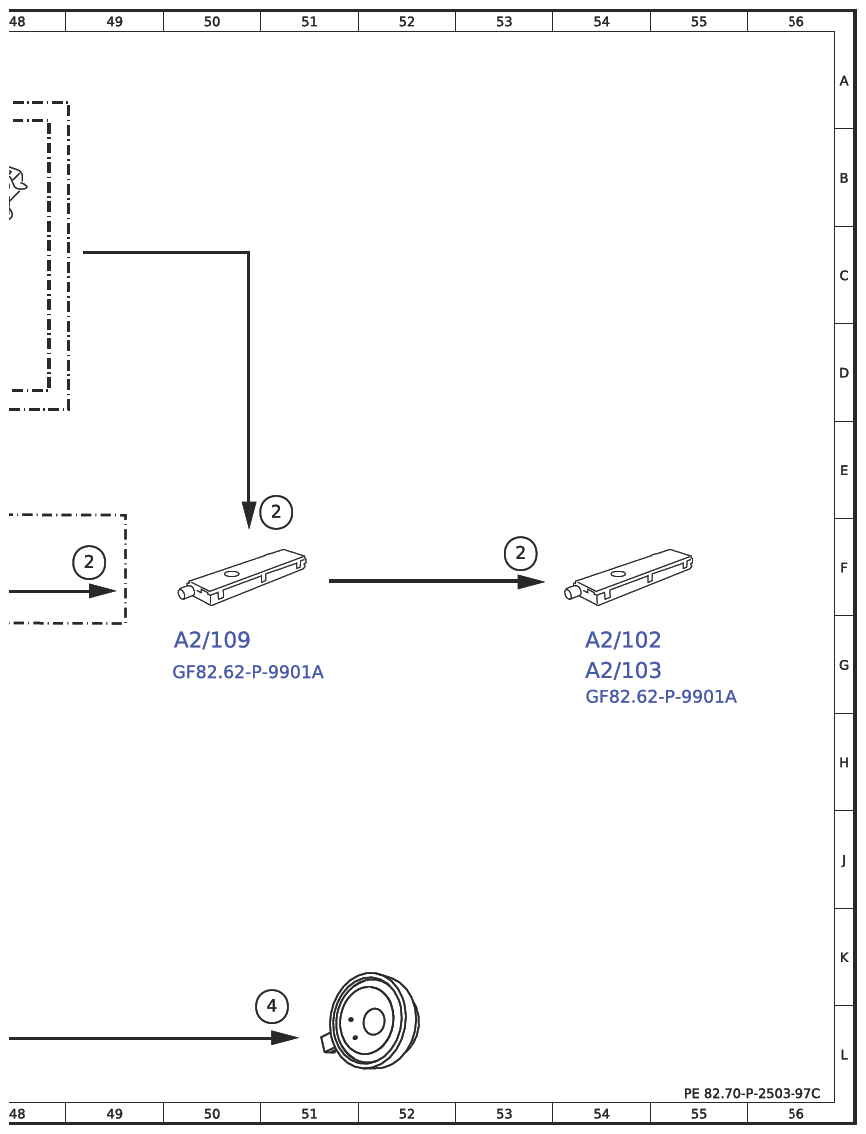

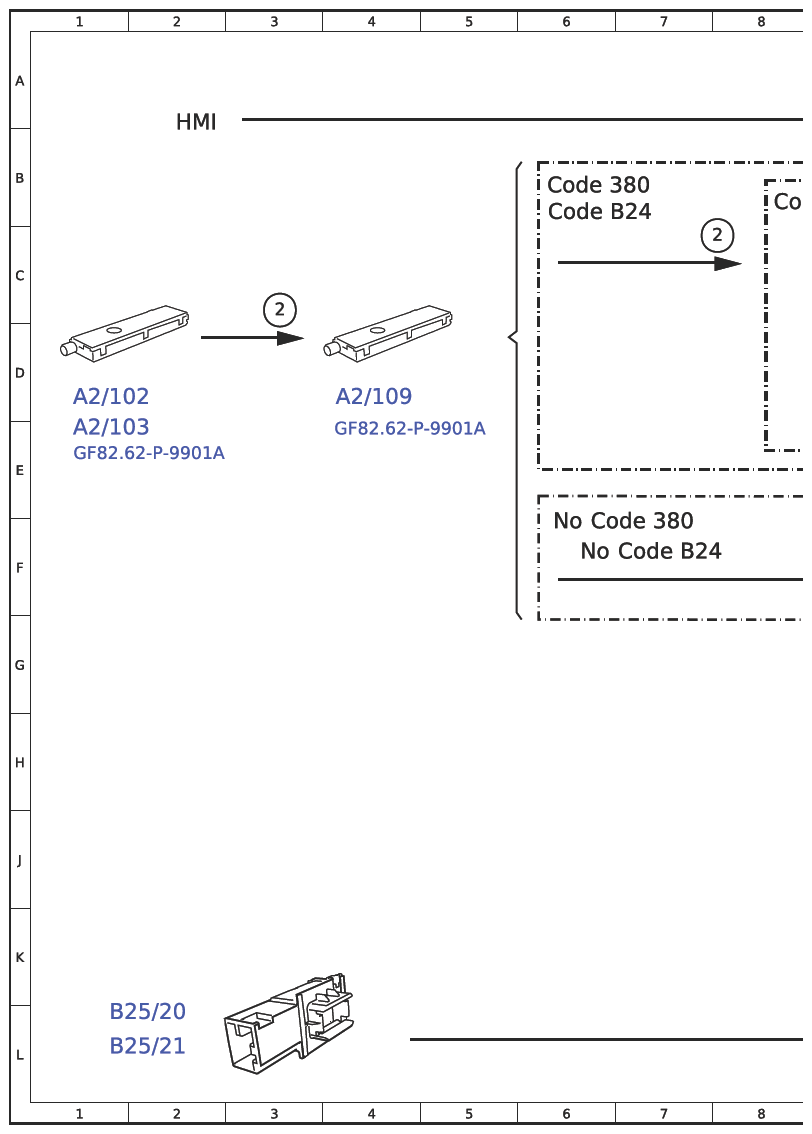

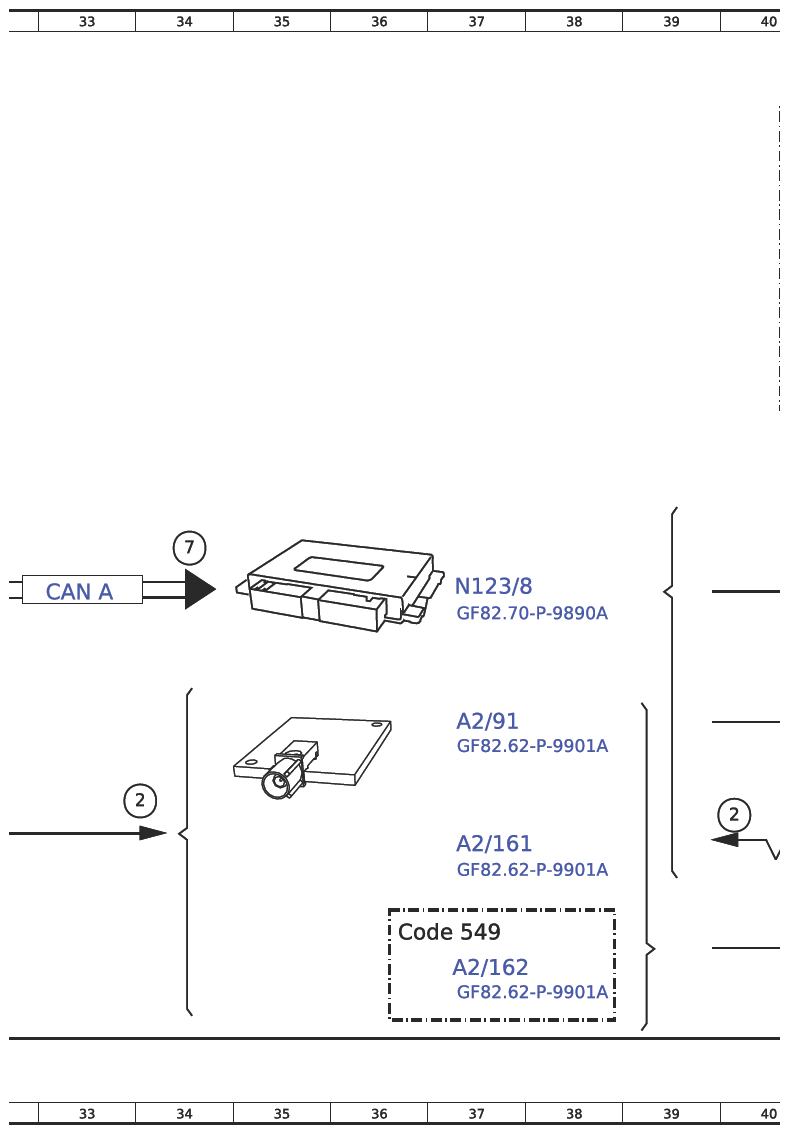

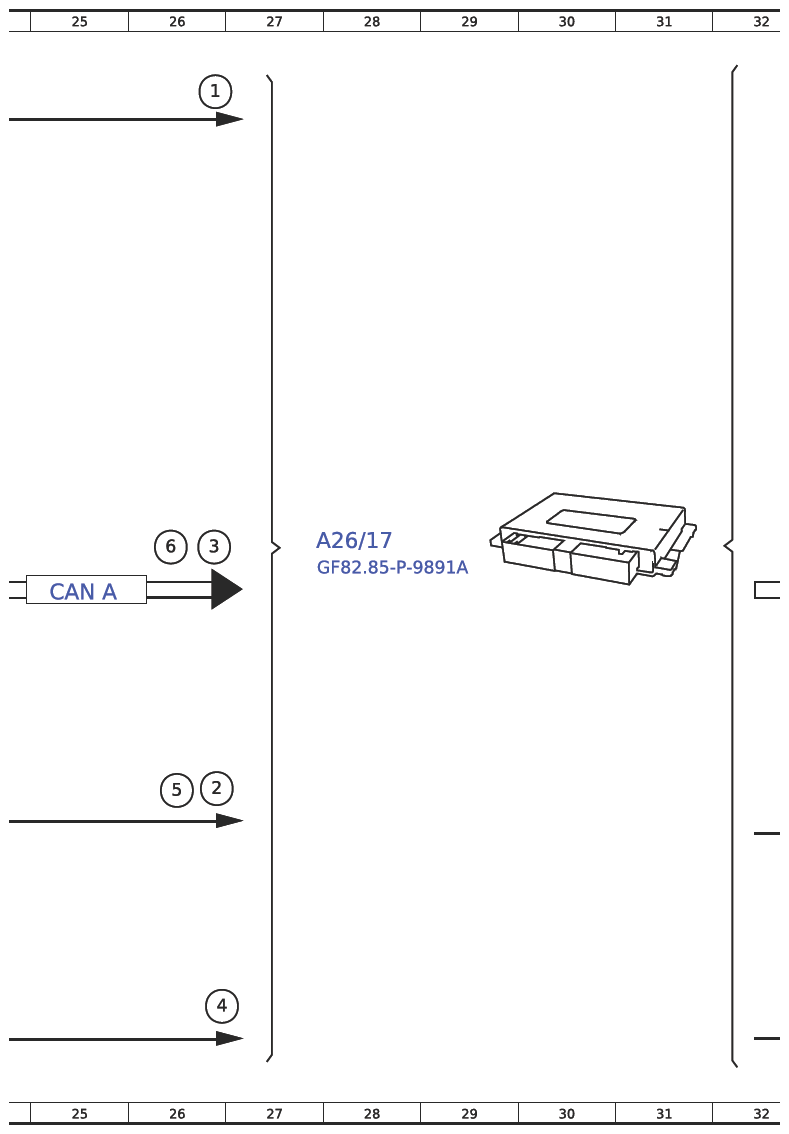

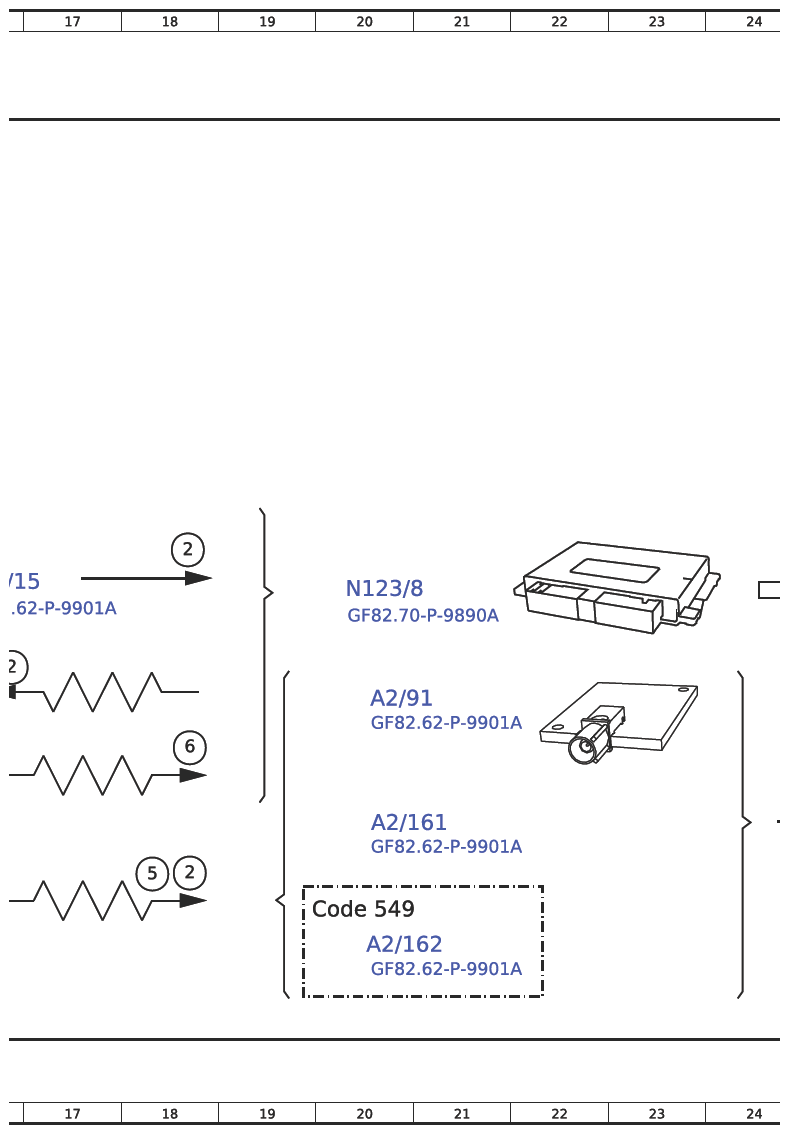

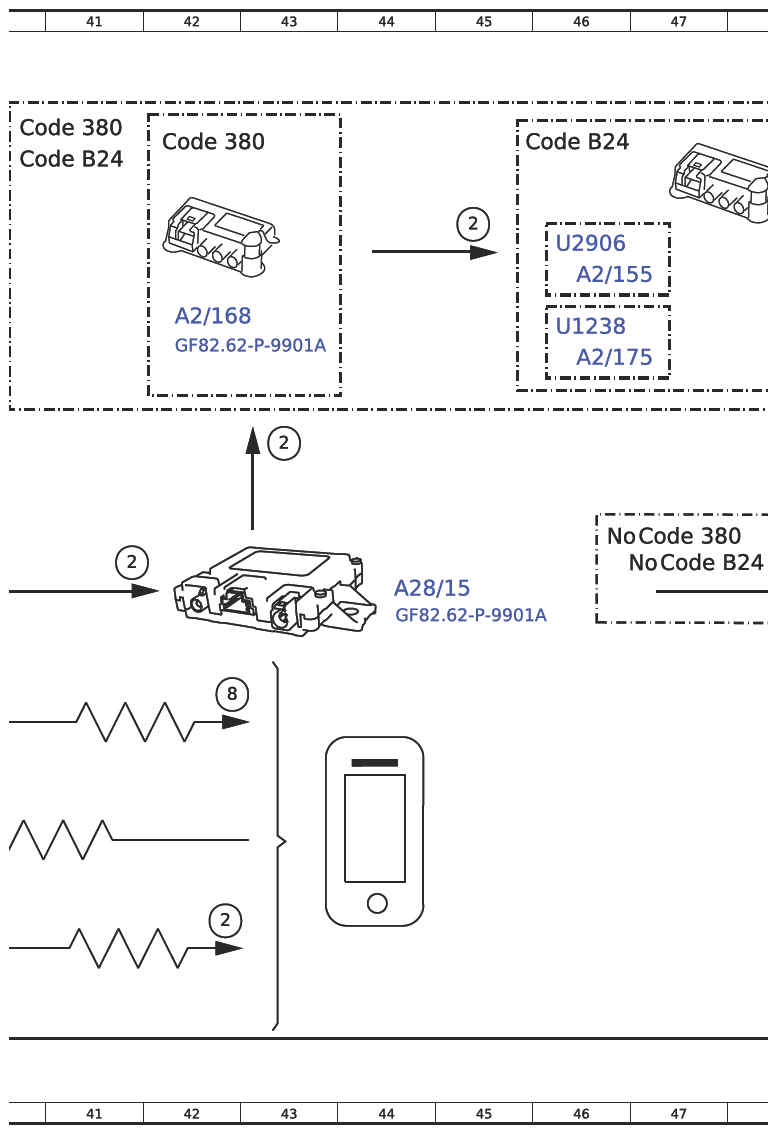

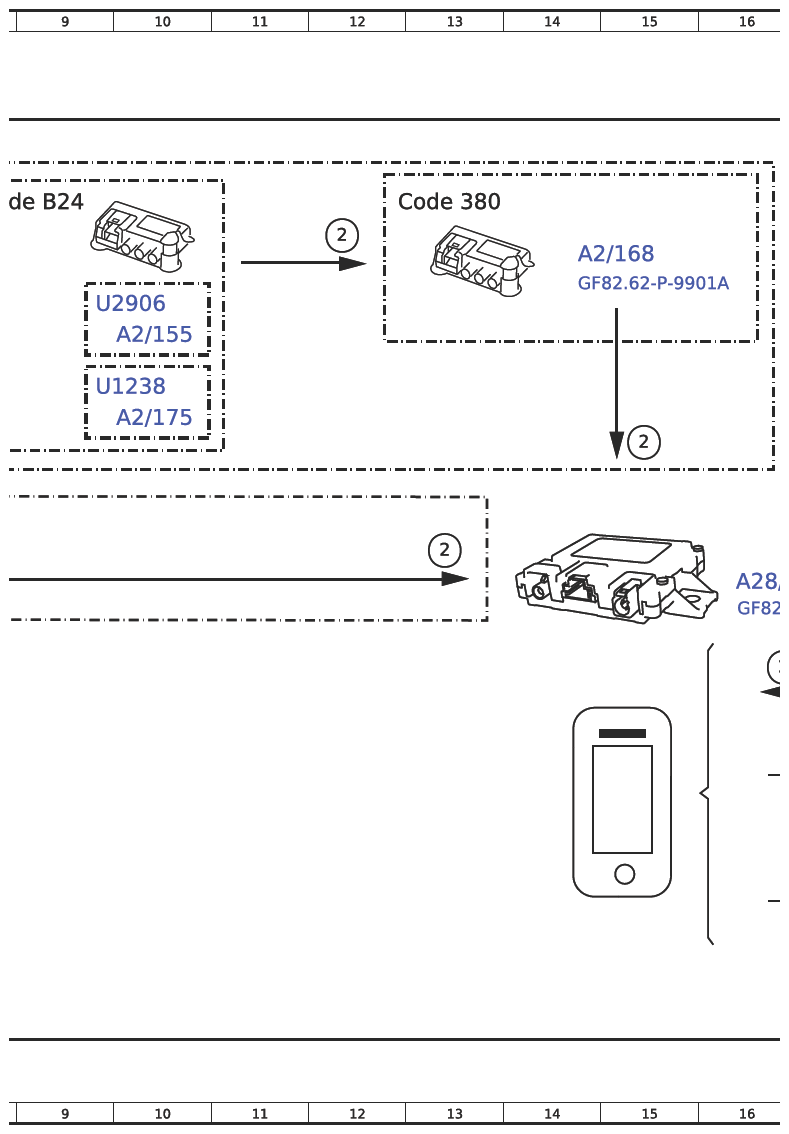

Function Schematic For Telephony With Mobile Phone Cradle - PE82.70-P-2503-97C
Model 238.4, 290 as of model year 2021 with code 899 (Front wireless telephone charging and antenna)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 26A |
| 2 | Telephone, signal | 18F |
| 2 | Telephone, signal | 12C |
| 2 | Telephone, signal | 13F |
| 2 | Telephone, signal | 15E |
| 2 | Telephone, signal | 41F |
| 2 | Telephone, signal | 8C |
| 2 | Telephone, signal | 3C |
| 2 | Telephone, signal | 49F |
| 2 | Telephone, signal | 53F |
| 2 | Telephone, signal | 45C |
| 2 | Telephone, signal | 51E |
| 2 | Telephone, signal | 43E |
| 2 | Telephone, signal | 16G |
| 2 | Telephone, signal | 18J |
| 2 | Telephone, signal | 26J |
| 2 | Telephone, signal | 34J |
| 2 | Telephone, signal | 42K |
| 2 | Telephone, signal | 40J |
| 3 | Cellular telephone system compensator, status | 26F |
| 4 | Audio, signal | 51L |
| 4 | Audio, signal | 27L |
| 5 | Address data, signal | 18J |
| 5 | Address data, signal | 26H |
| 6 | Charge level, status | 18H |
| 6 | Charge level, status | 26F |
| 7 | Charging voltage and charging current, request | 34F |
| 8 | Charging current, energy flow | 42G |
| A2/102 | Left telephone antenna | 1D |
| A2/102 | Left telephone antenna | 54G |
| A2/103 | Right telephone antenna | 1E |
| A2/103 | Right telephone antenna | 54G |
| A2/109 | Telephone antenna splitter | 4D |
| A2/109 | Telephone antenna splitter | 50G |
| A2/155 | Telephone and Active Parking Assist/stationary heater antenna changeover switch | 10D |
| A2/155 | Telephone and Active Parking Assist/stationary heater antenna changeover switch | 46C |
| A2/161 | WLAN antenna 1 | 20J |
| A2/161 | WLAN antenna 1 | 37J |
| A2/162 | Wi-Fi antenna 2 | 20K |
| A2/162 | Wi-Fi antenna 2 | 37K |
| A2/168 | Telephone antenna changeover switch | 14C |
| A2/168 | Telephone antenna changeover switch | 42C |
| A2/175 | Antenna changeover switch for telephony/stationary heater and Remote Parking Package | 10E |
| A2/175 | Antenna changeover switch for telephony/stationary heater and Remote Parking Package | 46D |
| A2/91 | Bluetooth® antenna | 20G |
| A2/91 | Bluetooth® antenna | 37H |
| A26/17 | Head unit | 28F |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 16F |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 44F |
| B25/20 | Driver hands-free system microphone | 1L |
| B25/21 | Front passenger hands-free system microphone | 1L |
| CAN A | Telematics CAN | 25F |
| CAN A | Telematics CAN | 33F |
| Code 380 | Car telephony package | 6F |
| Code 380 | Car telephony package | 47F |
| Code 380 | Car telephony package | 12B |
| Code 380 | Car telephony package | 6B |
| Code 380 | Car telephony package | 42B |
| Code 380 | Car telephony package | 40B |
| Code 549 | Connect 20 HIGH (NTG6) | 19K |
| Code 549 | Connect 20 HIGH (NTG6) | 36K |
| Code B24 | Remote control for stationary heater | 7F |
| Code B24 | Remote control for stationary heater | 8B |
| Code B24 | Remote control for stationary heater | 6B |
| Code B24 | Remote control for stationary heater | 47F |
| Code B24 | Remote control for stationary heater | 45B |
| Code B24 | Remote control for stationary heater | 40B |
| N123/8 | Front mobile phone cradle control unit | 20F |
| N123/8 | Front mobile phone cradle control unit | 37F |
| U1238 | Valid for model 238 | 9D |
| U1238 | Valid for model 238 | 46D |
| U2906 | Valid for model 290.6 | 9C |
| U2906 | Valid for model 290.6 | 46C |
