Function Schematic For Actuating Speakers - PE82.62-P-2501-97K
Model 290 with code ME10 (Hybrid vehicle (plug-in, PHEV)) except code 811 (High-End sound system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 14D |
| 2 | Vehicle speed, signal | 14F |
| 2 | Vehicle speed, signal | 7F |
| 3 | Engine running, signal | 26F |
| 4 | Engine speed, signal | 25F |
| 5 | Engine torque, signal | 25F |
| 6 | Mute function, signal | 26J |
| 7 | Audio, signal | 34E |
| 7 | Audio, signal | 26E |
| 8 | Microphone, signal | 26C |
| A26/17 | Head unit | 16F |

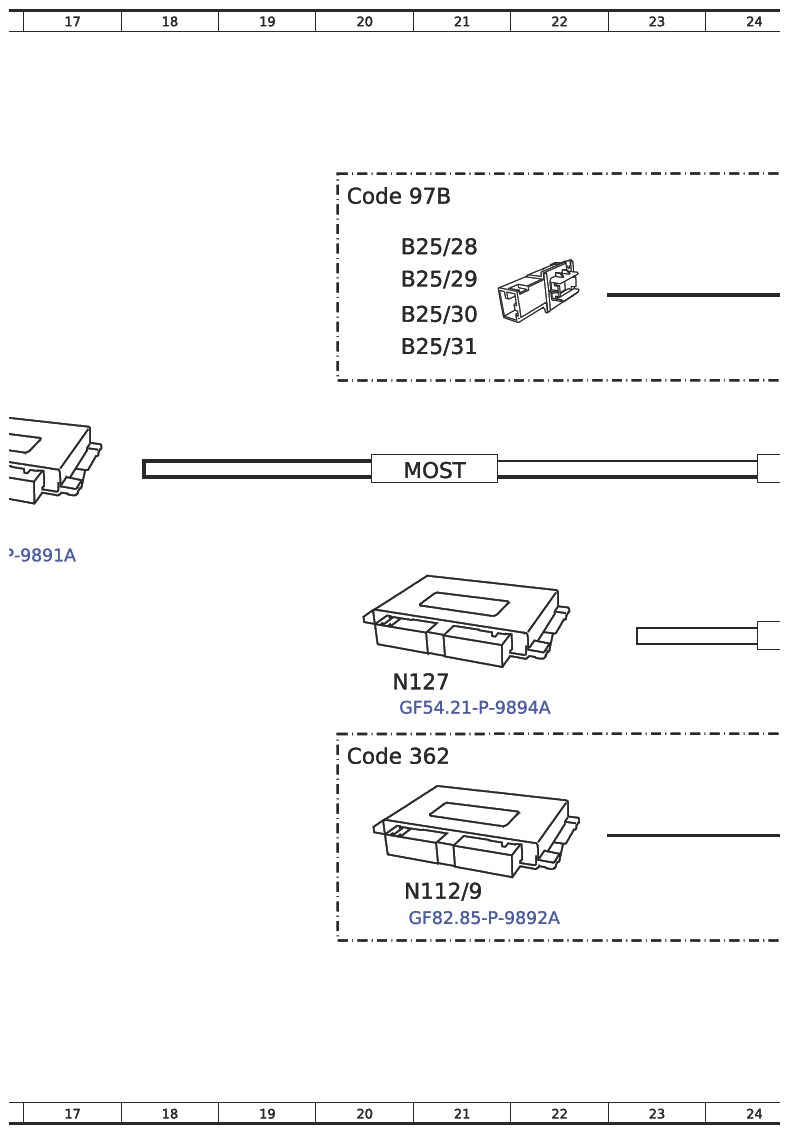

| B25/28 | Left front active engine noise compensation microphone | 20C |
| B25/29 | Right front active engine noise compensation microphone | 20C |
| B25/30 | Left rear active engine noise compensation microphone | 20C |
| B25/31 | Right rear active engine noise compensation microphone | 20D |
| CAN C1 | Drive train CAN | 25G |
| CAN HMI2 | User interface CAN 2 | 12F |
| Code 362 | HERMES LTE | 20H |
| Code 97B | Engine noise reduction via speaker | 20B |
| Flex E | Chassis FlexRay | 6F |

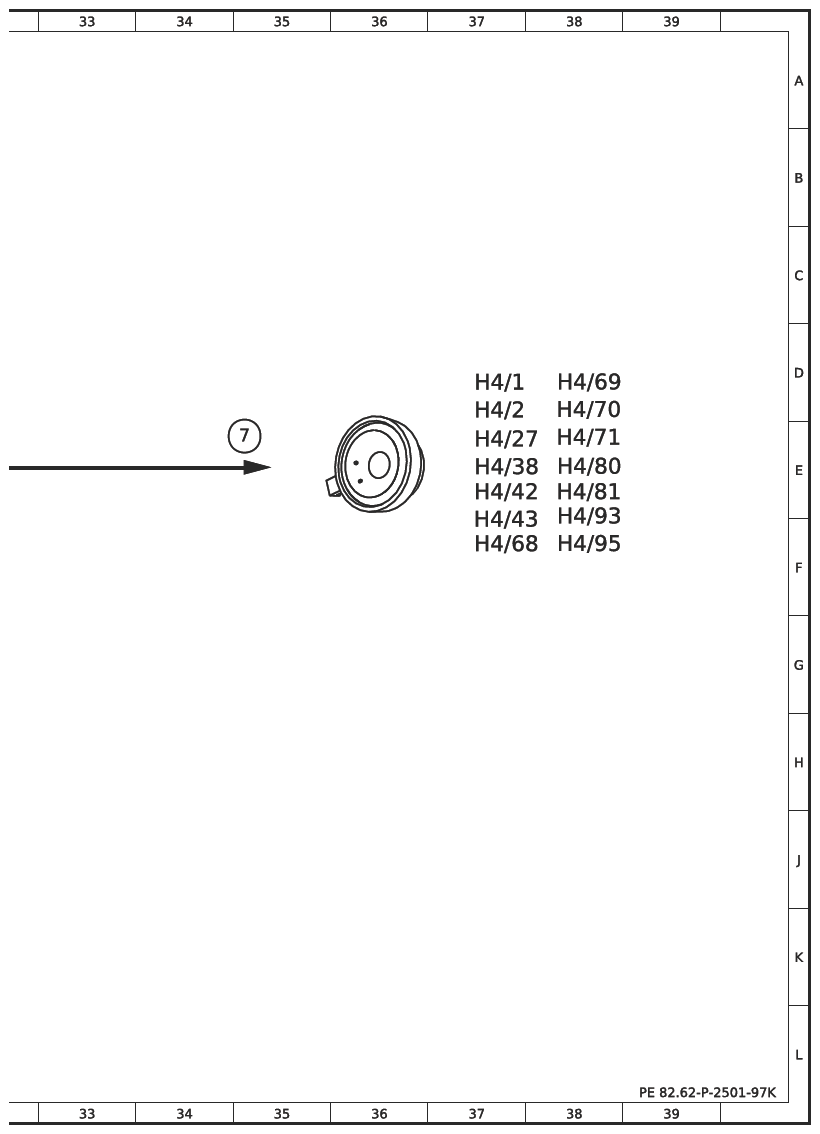

| H4/1 | Left front door midrange speaker | 37D |
| H4/2 | Right front door midrange speaker | 37D |
| H4/27 | Center instrument panel speaker | 37E |
| H4/38 | Rear woofer | 37E |
| H4/42 | Left front footwell woofer | 37E |
| H4/43 | Right front footwell woofer | 37F |
| H4/68 | Left front door sound system tweeter | 37F |
| H4/69 | Right front door sound system tweeter | 38D |
| H4/70 | Left rear door sound system tweeter | 38D |
| H4/71 | Right rear door sound system tweeter | 38E |
| H4/80 | Left rear door sound system midrange speaker | 38E |
| H4/81 | Right rear door sound system midrange speaker | 38E |
| H4/93 | Left rear surround sound system midrange speaker | 38F |
| H4/95 | Right rear surround sound system midrange speaker | 38F |
| MOST | Media Oriented System Transport | 25E |
| MOST | Media Oriented System Transport | 21E |
| N112/9 | HERMES control unit | 21J |
| N127 | Drivetrain control unit | 20G |

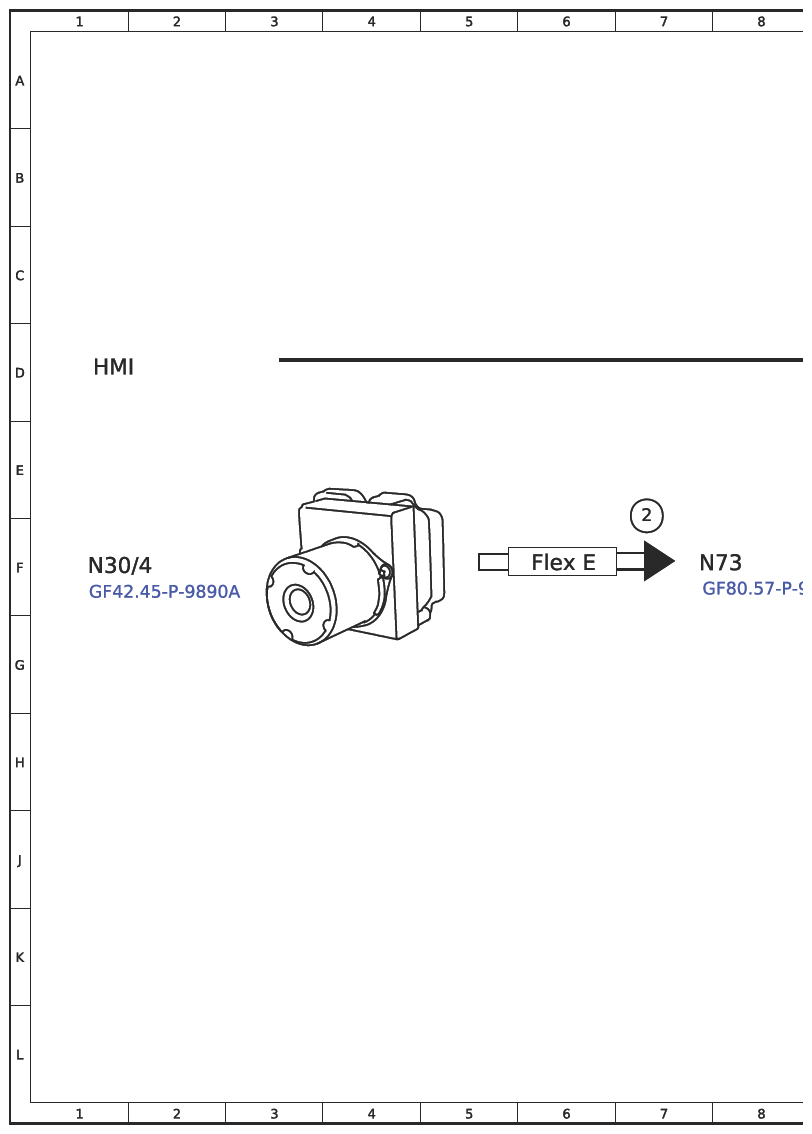

| N30/4 | Electronic Stability Program control unit | 1F |

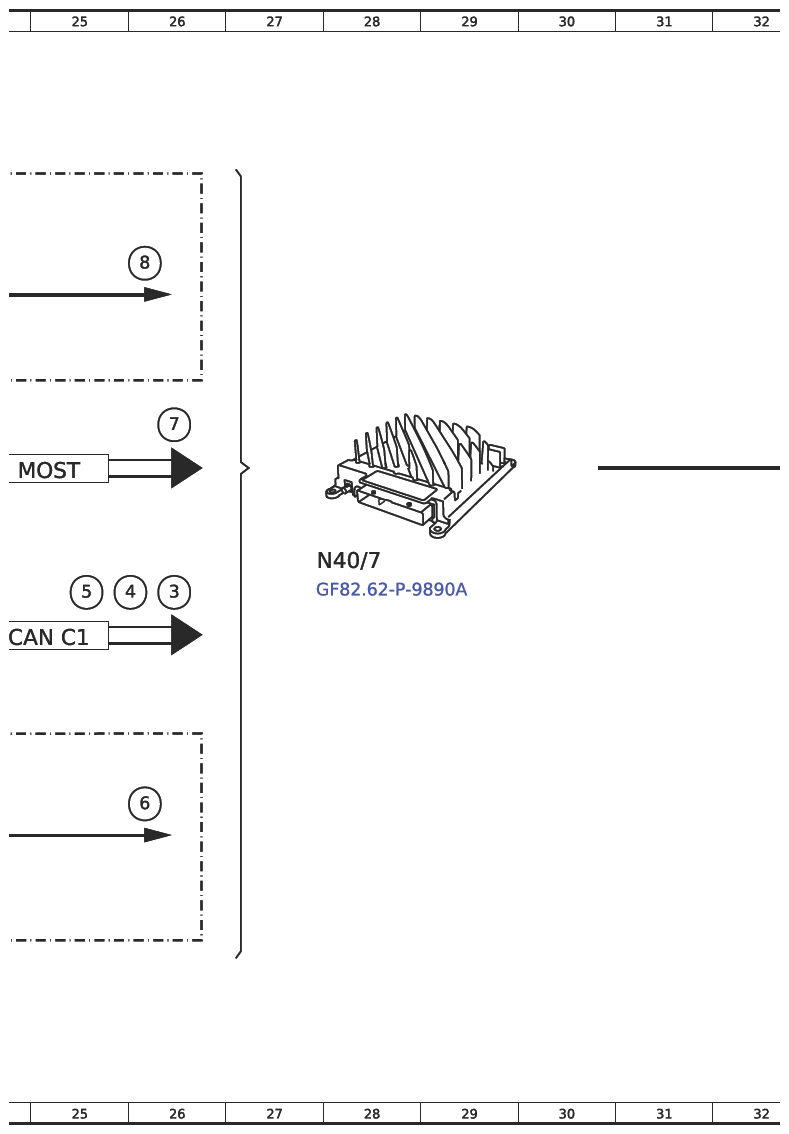

| N40/7 | Advanced sound system amplifier control unit | 27F |
| N73 | Electronic ignition switch control unit | 8F |
