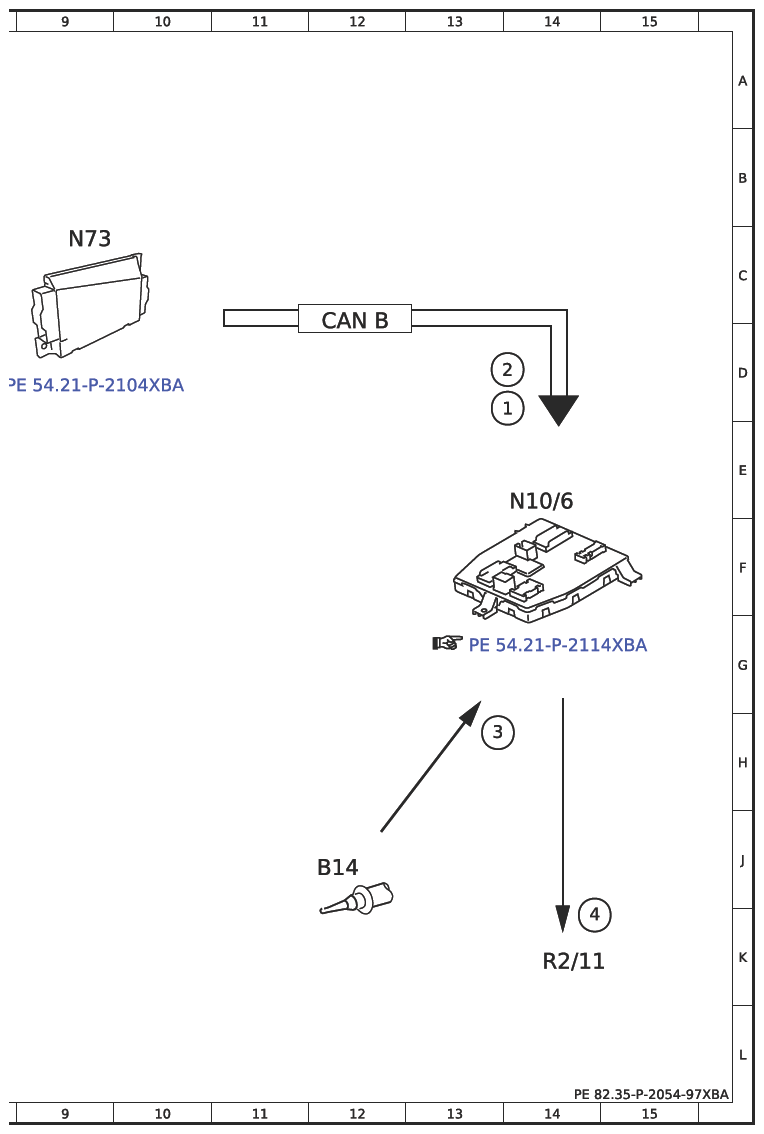

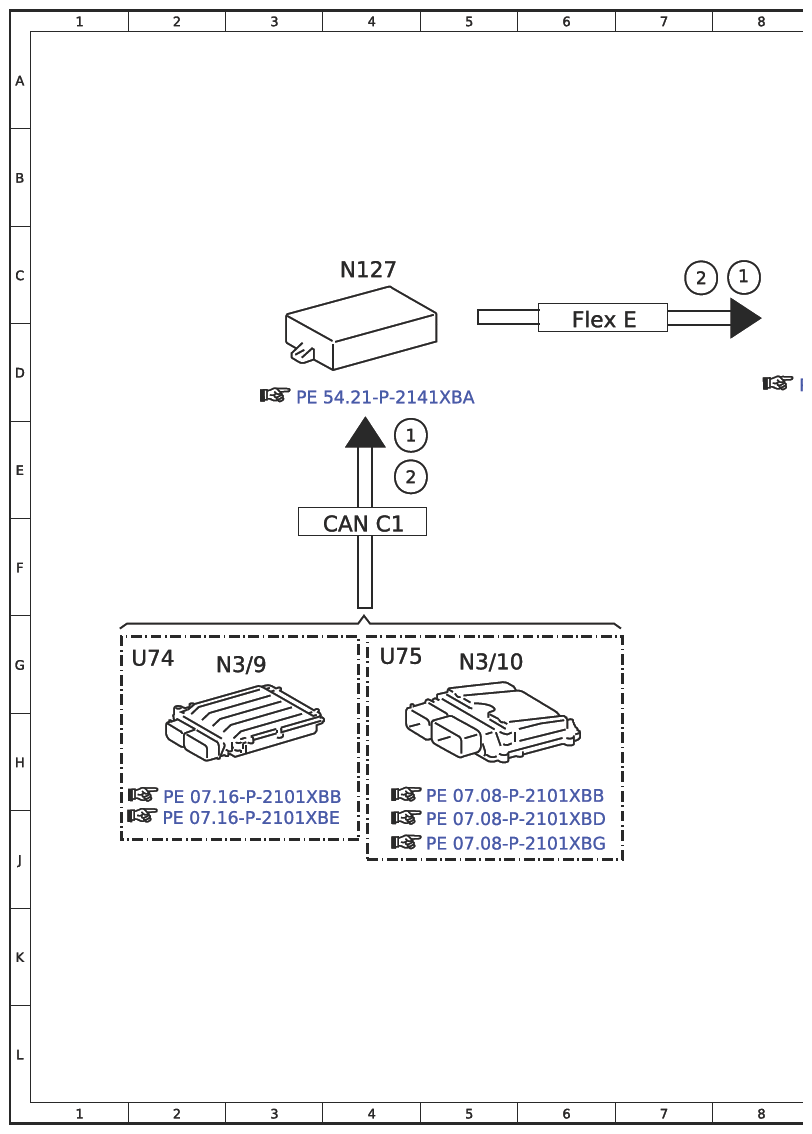

Electrical Function Schematic For Spray Nozzle Hose Heater - PE82.35-P-2054-97XBA
Model 257, 290 up to model year 2021 with code 875 (Heated windshield washer system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 4E |
| 1 | Engine running, signal | 14D |
| 1 | Engine running, signal | 8C |
| 2 | Drivetrain operational, signal | 7C |
| 2 | Drivetrain operational, signal | 4E |
| 2 | Drivetrain operational, signal | 14D |
| 3 | Outside temperature sensor, signal | 13H |
| 4 | Spray nozzle hose heater, actuation | 14K |
| B14 | Outside temperature sensor | 12J |
| CAN B | Interior CAN | 12D |
| CAN C1 | Drivetrain CAN | 4F |
| Flex E | Chassis FlexRay | 6D |
| N10/6 | Front SAM control unit | 14E |
| N127 | Drivetrain control unit | 4C |
| N3/10 | ME-SFI [ME] control unit | 5G |
| N3/9 | CDI control unit | 3G |
| N73 | Electronic ignition switch control unit | 9C |
| R2/11 | Spray nozzle hose heater | 14K |
| U74 | Valid for diesel engines | 2G |
| U75 | Valid for gasoline engines | 4G |
