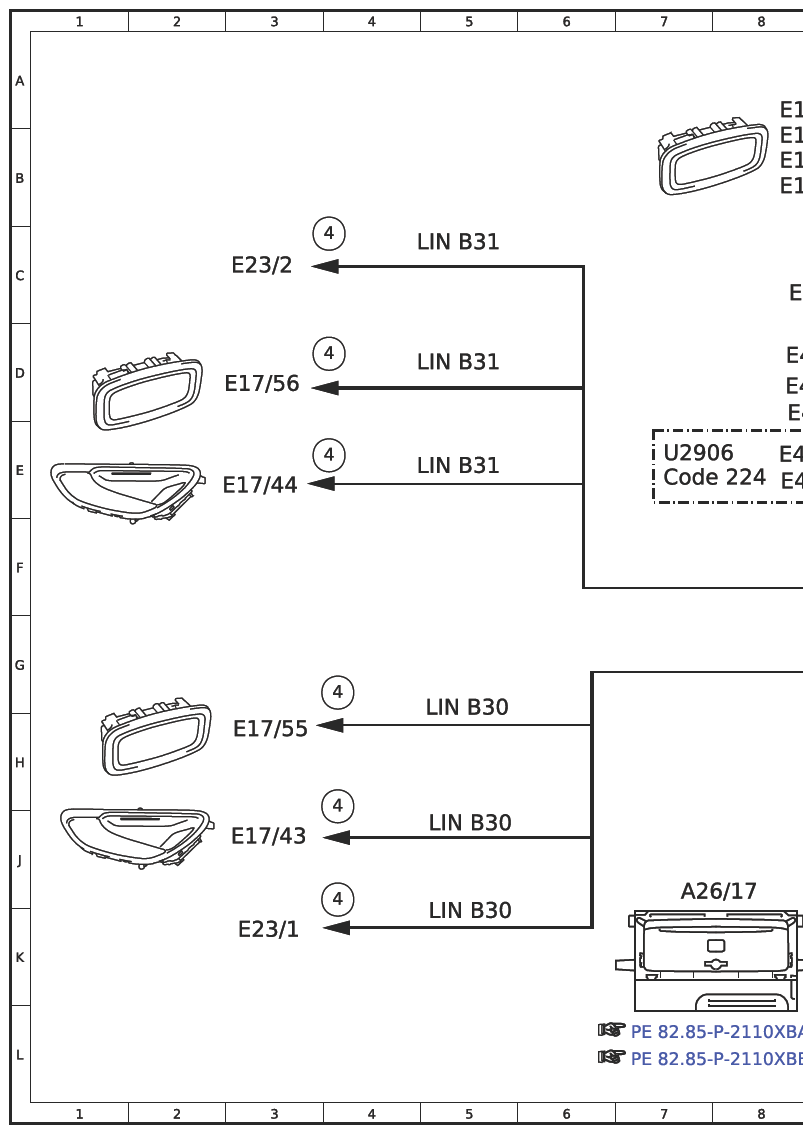

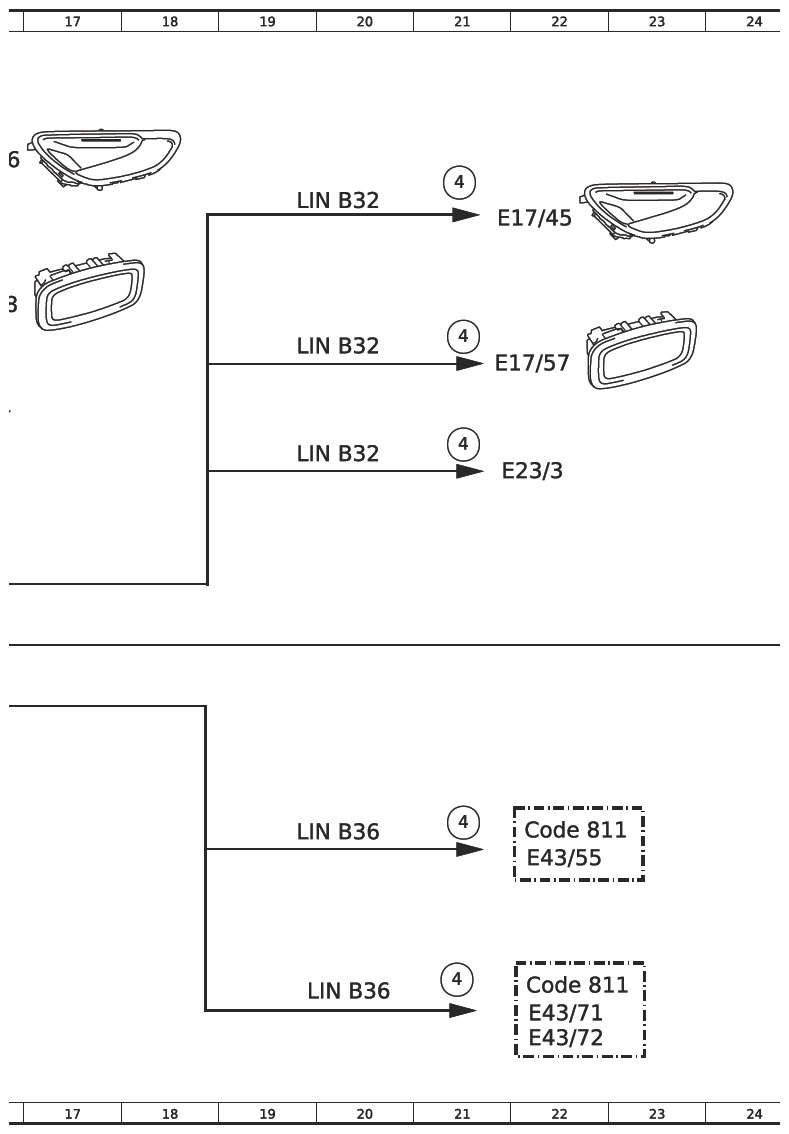

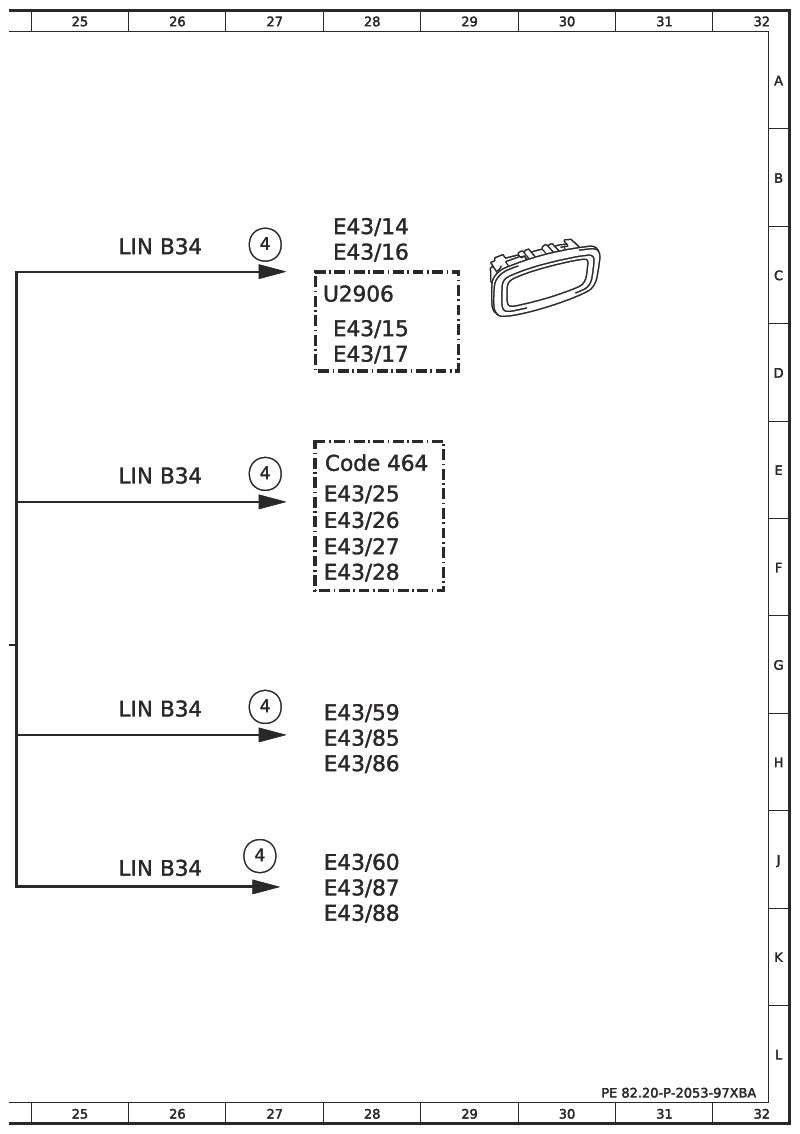

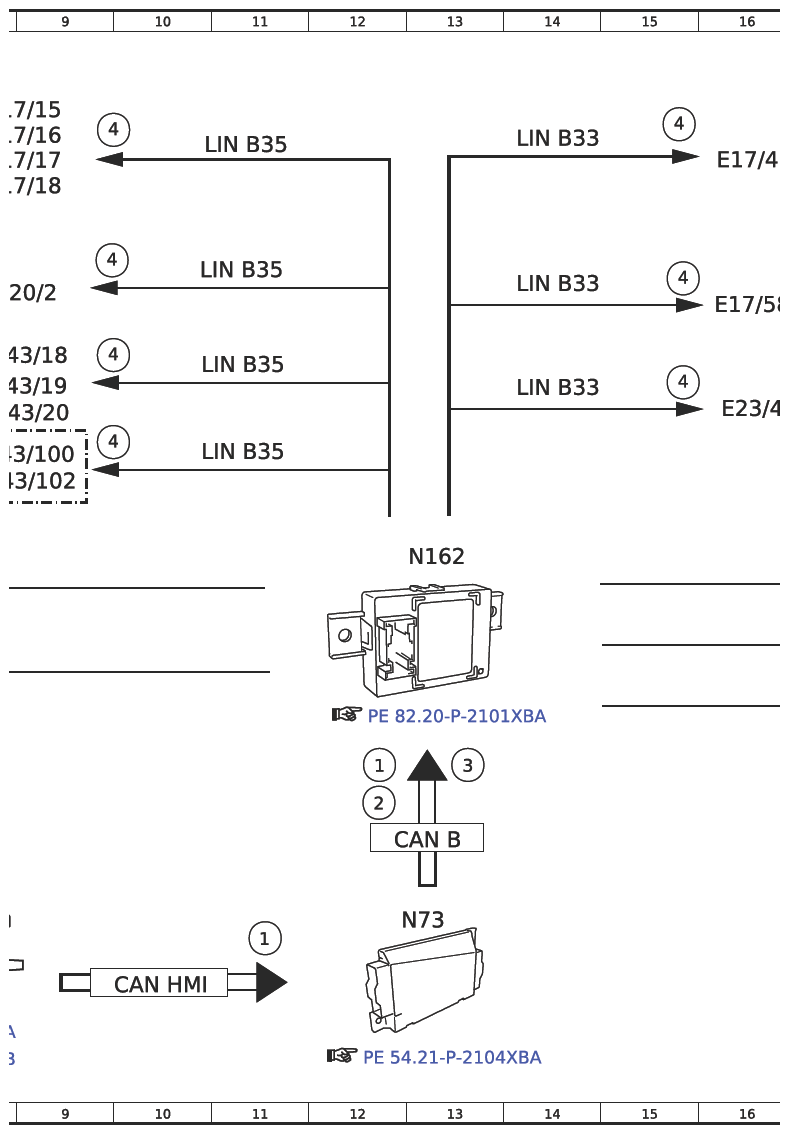

Electrical Function Schematic Ambiance Illumination - PE82.20-P-2053-97XBA
Model 257, 290 with code 891 (Premium ambiance illumination)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Ambiance illumination settings, status | 11K |
| 1 | Ambiance illumination settings, status | 12H |
| 2 | Circuit 15, status | 12H |
| 3 | Central locking (CL[ZV]), status | 13H |
| 4 | - | 4G |
| 4 | - | 4J |
| 4 | - | 21B |
| 4 | - | 21D |
| 4 | - | 4D |
| 4 | - | 4E |
| 4 | - | 9B |
| 4 | - | 9D |
| 4 | - | 9C |
| 4 | - | 15B |
| 4 | - | 15C |
| 4 | - | 27G |
| 4 | - | 27J |
| 4 | - | 21K |
| 4 | - | 9E |
| 4 | - | 4C |
| 4 | - | 4J |
| 4 | - | 15D |
| 4 | - | 21E |
| 4 | - | 21J |
| 4 | - | 27E |
| 4 | - | 27C |
| A26/17 | Head unit | 7J |
| CAN B | Interior CAN | 13J |
| CAN HMI | User interface CAN | 10K |
| Code 224 | Design rear individual seats | 7E |
| Code 464 | Digital instrument cluster full display | 28E |
| Code 811 | Advanced sound system | 22K |
| Code 811 | Advanced sound system | 22J |
| E17/15 | Right front footwell lamp | 8A |
| E17/16 | Left front footwell lamp | 8B |
| E17/17 | Left rear footwell lamp | 8B |
| E17/18 | Right rear footwell lamp | 8B |
| E17/43 | Left front door ambiance illumination | 3J |
| E17/44 | Right front door ambiance illumination | 3E |
| E17/45 | Left rear door ambiance illumination | 22B |
| E17/46 | Right rear door ambiance illumination | 16B |
| E17/55 | Left front door handle ambiance illumination | 3H |
| E17/56 | Right front door handle ambiance illumination | 3D |
| E17/57 | Left rear door handle ambiance illumination | 22D |
| E17/58 | Right rear door handle ambiance illumination | 16C |
| E20/2 | Front center console cup holder illumination | 8C |
| E23/1 | Left front door stowage compartment illumination | 3K |
| E23/2 | Right front door stowage compartment illumination | 3C |
| E23/3 | Left rear door stowage compartment illumination | 22E |
| E23/4 | Right rear door stowage compartment illumination | 16D |
| E43/100 | Left rear center console ambiance illumination | 8E |
| E43/102 | Right rear center console ambiance illumination | 8E |
| E43/14 | Left front center console ambiance illumination | 28C |
| E43/15 | Left rear center console ambiance illumination | 28D |
| E43/16 | Right front center console ambiance illumination | 28C |
| E43/17 | Right rear center console ambiance illumination | 28D |
| E43/18 | Driver-side ambiance illumination | 8D |
| E43/19 | Passenger-side interior ambiance illumination | 8D |
| E43/20 | Passenger-side exterior ambiance illumination | 8D |
| E43/25 | Inner upper digital instrument cluster full display ambient lighting | 28E |
| E43/26 | Outer upper digital instrument cluster full display ambient lighting | 28F |
| E43/27 | Inner lower digital instrument cluster full display ambient lighting | 28F |
| E43/28 | Outer lower digital instrument cluster full display ambient lighting | 28F |
| E43/55 | Roof center midrange speaker ambiance illumination | 22J |
| E43/59 | Driver side air vent ambiance illumination | 28H |
| E43/60 | Front passenger side air vent ambiance illumination | 28J |
| E43/71 | Left center headliner midrange speaker ambiance illumination | 22L |
| E43/72 | Right center headliner midrange speaker ambiance illumination | 22L |
| E43/85 | Driver outside center air vent ambiance illumination | 28H |
| E43/86 | Driver inside center air vent ambiance illumination | 28H |
| E43/87 | Front passenger outside center air vent ambiance illumination | 28J |
| E43/88 | Front passenger inside center air vent ambiance illumination | 28K |
| LIN B30 | Left front door ambiance illumination LIN | 5J |
| LIN B30 | Left front door ambiance illumination LIN | 5H |
| LIN B30 | Left front door ambiance illumination LIN | 5K |
| LIN B31 | Right front door ambiance illumination LIN | 5D |
| LIN B31 | Right front door ambiance illumination LIN | 5E |
| LIN B31 | Right front door ambiance illumination LIN | 5C |
| LIN B32 | Left rear door ambiance illumination LIN | 20B |
| LIN B32 | Left rear door ambiance illumination LIN | 20D |
| LIN B32 | Left rear door ambiance illumination LIN | 20E |
| LIN B33 | Right rear door ambiance illumination LIN | 14B |
| LIN B33 | Right rear door ambiance illumination LIN | 14C |
| LIN B33 | Right rear door ambiance illumination LIN | 14D |
| LIN B34 | Cockpit ambiance illumination LIN | 26H |
| LIN B34 | Cockpit ambiance illumination LIN | 26J |
| LIN B34 | Cockpit ambiance illumination LIN | 26E |
| LIN B34 | Cockpit ambiance illumination LIN | 26C |
| LIN B35 | Vehicle interior ambiance illumination LIN | 11B |
| LIN B35 | Vehicle interior ambiance illumination LIN | 11D |
| LIN B35 | Vehicle interior ambiance illumination LIN | 11C |
| LIN B35 | Vehicle interior ambiance illumination LIN | 11E |
| LIN B36 | Roof ambiance illumination LIN | 20K |
| LIN B36 | Roof ambiance illumination LIN | 20J |
| N162 | Ambiance illumination control unit | 13F |
| N73 | Electronic ignition switch control unit | 12K |
| U2906 | Valid for model 290.6 | 7E |
| U2906 | Valid for model 290.6 | 27C |
