Remove/Install Sideview Mirror Ambient Lamp - AR82.10-P-0001FR
Model 257, 290

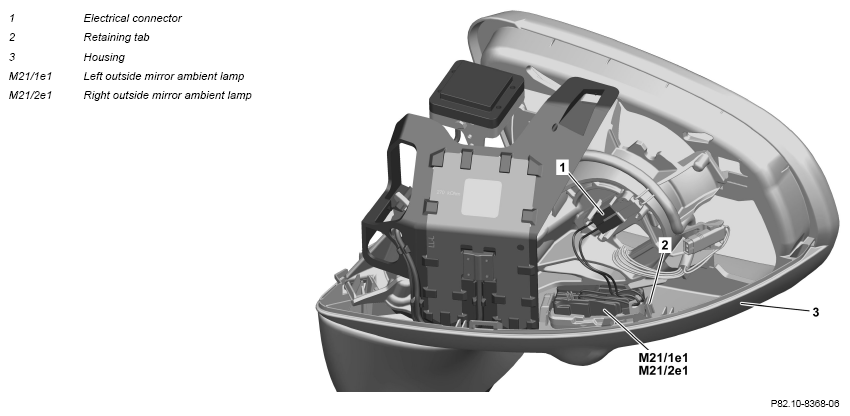

Shown with code 274 (Telephone antenna) and with code 270 (GPS antenna)
| Remove/install | |||
| 1 | Remove outside mirror trim. | AR88.70-P-9040FR | |
| 2 | Remove 360° Camera in outside mirror. | Model 257, 290 with code 501 (360° camera) |
AR54.65-P-3002FR |
| 3 | Disconnect electrical connector (1). | ||
| 4 | Release outside mirror ambient lamp (M21/1e1, M21/2e1) at retaining tab (2). | ||
| 5 | Press housing (3) downward slightly and extend outside mirror ambient lamp (M21/1e1, M21/2e1). | Push housing (3) downwards carefully, and not too far. Otherwise, the housing (3) may be damaged. |
|
| 6 | Install in the reverse order. |
