Remove/Install NFC Antenna - AR82.62-P-0004FRX
Model 290 with code 897 (Front wireless telephone charging)
Model 290 with code 899 (Multifunction telephony)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove center console cover. | AR68.20-P-0901FRX | |

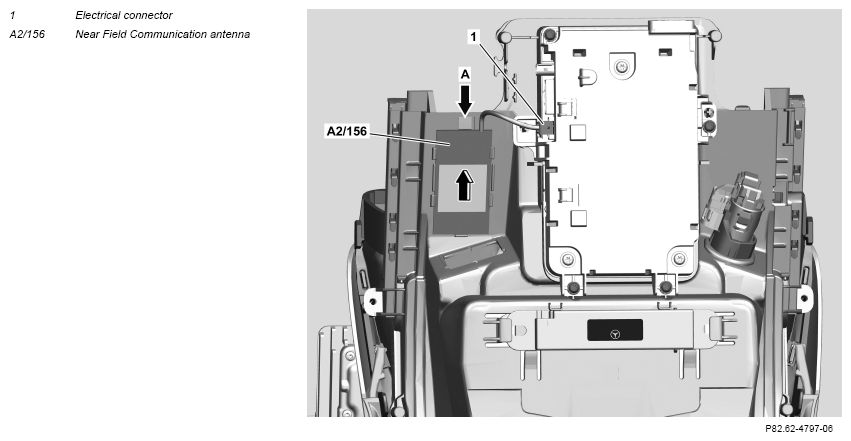

| 2 | Disconnect electrical connector (1). | ||
| 3 | Release catch hook (arrow A), slide near-field communication antenna (A2/156) in direction of arrow and remove. | ||
| 4 | Install in the reverse order. |
