Remove/Install License Plate Lamps - AR82.10-P-5161FR
Model 257
Model 290

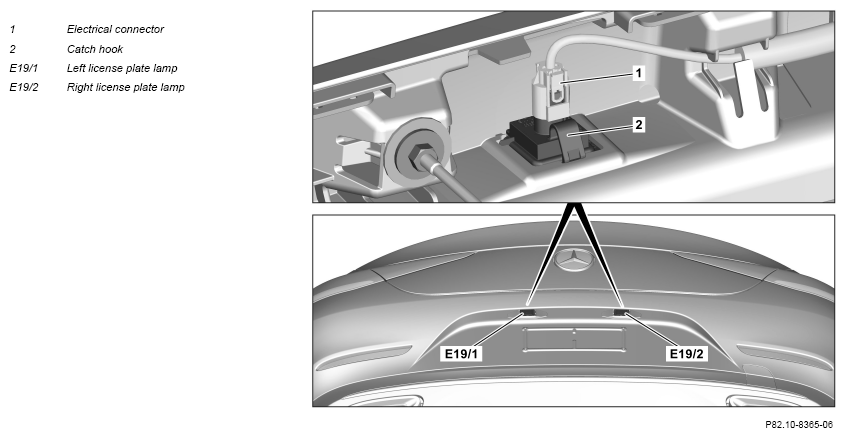

Shown on model 257
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Release catch hook (2) from below using suitable screwdriver and remove license plate lamp (E19/1, E19/2). | Carefully release and move out. Otherwise paint damage can occur. |
|
| 2 | Disconnect electrical connector (1) at license plate lamp (E19/1, E19/2). | ||
| 3 | Install in the reverse order. |
