Remove/Install DSRC Antenna - AR82.88-P-0004FRX
Model 290 as of model year 2023 with code 498 (Japanese version) with code 943 (Payment system for toll fees)
Model 290 as of model year 2023 with code 830 (China version) with code 943 (Payment system for toll fees)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

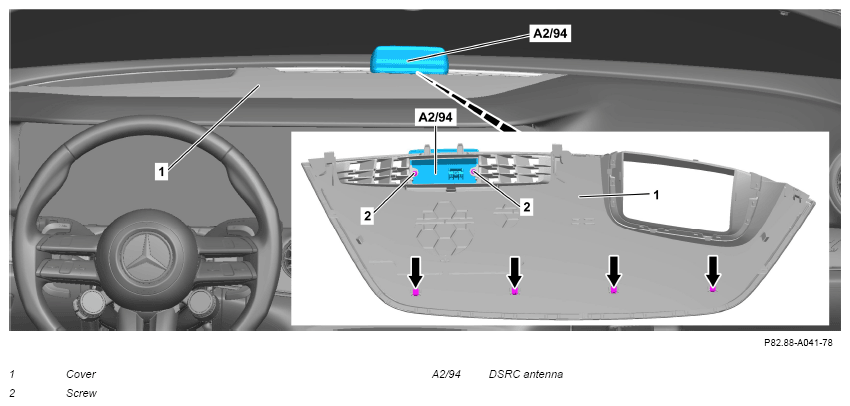

| 1 | Unclip cover (1) (arrows) and remove until electrical connector is accessible. | Fig 1 | |
| 2 | Release and disconnect electrical connector and remove cover (1). | ||
| 3 | Remove screws (2). | ||
| 4 | Remove DSRC antenna (A2/94). | ||
| 5 | Install in the reverse order. |
