Check Electrical Wiring Harness In Steering Wheel - AR82.90-P-0101-01FRB
Model 118, 247 as of model year 2023 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L5C (Supersport steering wheel - leather deep-embossed)
Model 167 as of model year 2022 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L2B (Leather luxury steering wheel) except code L2D (Luxury leather steering wheel with trim element) except code L5C (Supersport steering wheel - leather deep-embossed)
Model 177 as of model year 2022 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT))
Model 192, 232
Model 206, 236, 294, 295 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L5C (Supersport steering wheel - leather deep-embossed)
Model 223 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L2B (Leather luxury steering wheel) except code L2D (Luxury leather steering wheel with trim element) except code L5C (Supersport steering wheel - leather deep-embossed) except code L5D (Supersport steering wheel - leather with trim element)
Model 254 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L3E (Sport steering wheel - smooth split leather) except code L5C (Supersport steering wheel - leather deep-embossed)
Model 290 as of model year 2021 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT))
Model 465 with code U88 (AMG steering wheel buttons (AMG Drive Unit)) except code L2B (Steering wheel, sports) except code L2D (Luxury leather steering wheel with trim element) except code L5C (Supersport steering wheel - leather deep-embossed)
Line routing shown with code 266 (Distronic Plus cross-traffic support (DTR+Q))

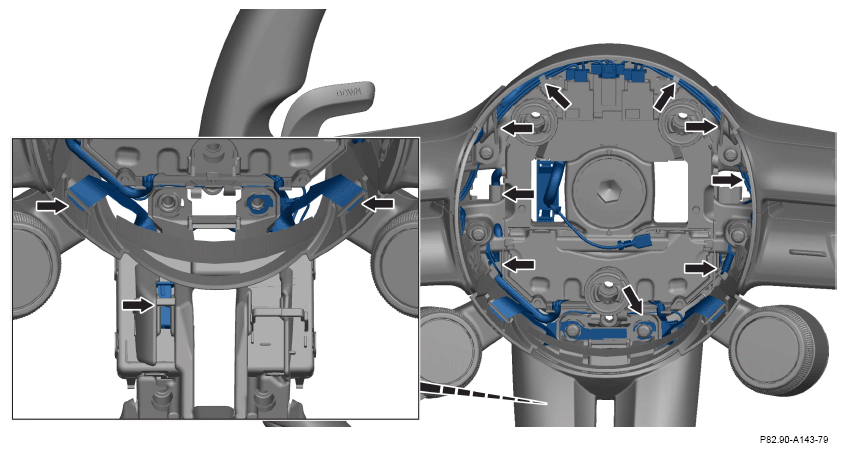

- Check for correct seating of electrical wiring harness (arrows) in steering wheel.
