Retrofit Wiring Harness For CD Drive - AZ82.64-P-0002-01RXJ
Model 290
with code 498 (Japanese version)
| Topical note | Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on retrofitting electrical/optical lines | AH82.00-P-0000-01A |
GROUND POINTS
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BA00.19-P-1021-02D | Left footwell ground point | W34 | Nm | 10 |

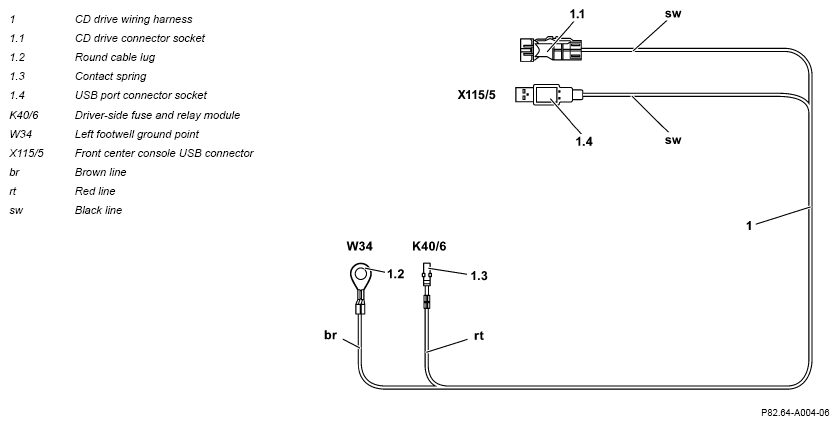

Connection scheme

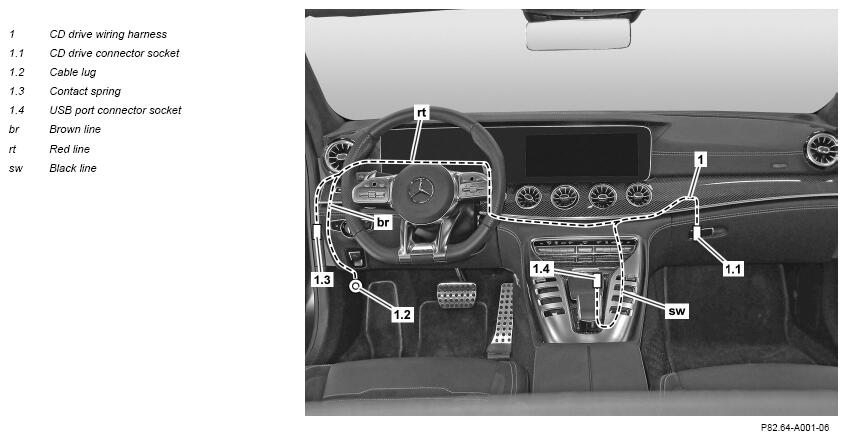

Routing diagram

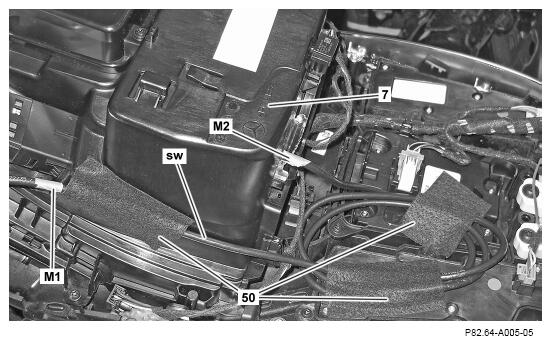

- Fix black line (BK) with marking (M1) in place on center console stowage compartment (7) using felt tape (50).
- Strap down excess line length of black line (BK), between markings (M1, M2), and fix in place using strips of felt tape (50).
- Route CD drive connector socket of CD drive wiring harness, starting at center console and working to right toward glove compartment housing.

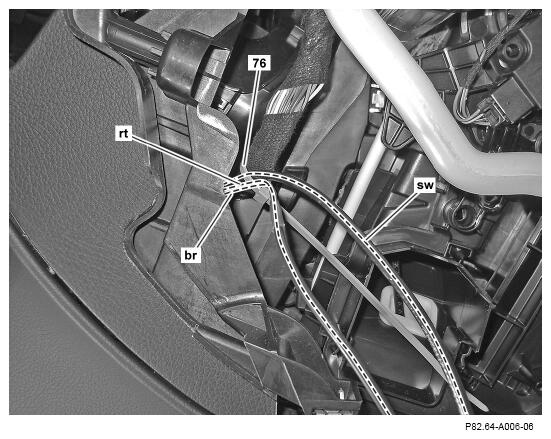

- Fix brown line (BN), red line (RD) and black line (BK) of CD drive wiring harness in place on vehicle wiring harness using a cable tie (76).
To be able to connect the CD drive at a later stage, an excess length of approx. 400 mm is required.
- Route brown line (BN) and red line (RD) of CD drive wiring harness along vehicle wiring harness behind instrument cluster to left A-pillar.
- Fix brown line (BN) and red line (RD) in place on vehicle wiring harness using cable ties.
- Open secondary fuse (42) of fuse holder (41) on driver's side fuse and relay module (K40/6).
- Install contact spring (1.3) of red line (RD) in contact cavity "S1-4" of slot for electrical fuse 207.
- Close secondary fuse (42) on fuse holder (41).
- Strap down excess line length and fix red line (RD) in place on vehicle wiring harness using cable ties.

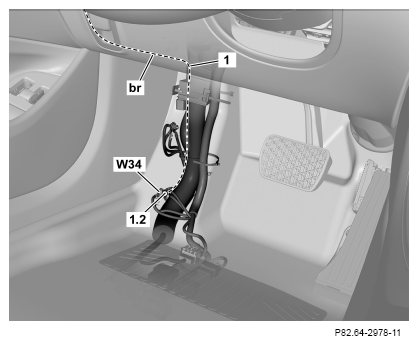

- Route brown line (br) of CD drive wiring harness (1) along vehicle wiring harness at left A-pillar to left footwell ground point (W34).
- Connect cable lug (1.2) of brown line (BN) of CD drive wiring harness (1) to left footwell ground point (W34)
.
- Fix brown line (BN) in place on vehicle wiring harness using cable ties.

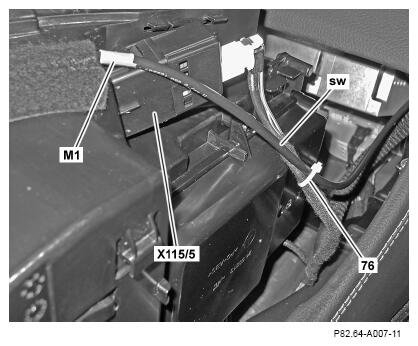

- Fix black line (BK) in place on line to front center console USB port (X115/5) using a cable tie (76).
