Retrofit Exit And Warning Lamp With Logo Projector - AZ82.20-P-0020MNI

Model 290

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Switch off entrance and exit illumination at overhead control panel.
2	Remove left front door exit and warning lamp (E17/3) and right front door exit and warning lamp (E17/4).	Long wedge	Fig 1
3	Remove black 2-pin connector socket from left front door exit and warning lamp (E17/3) and right front door exit and warning lamp (E17/4).	The left front door exit and warning lamp (E17/3) and right front door exit and warning lamp (E17/4) are no longer required.
	Install

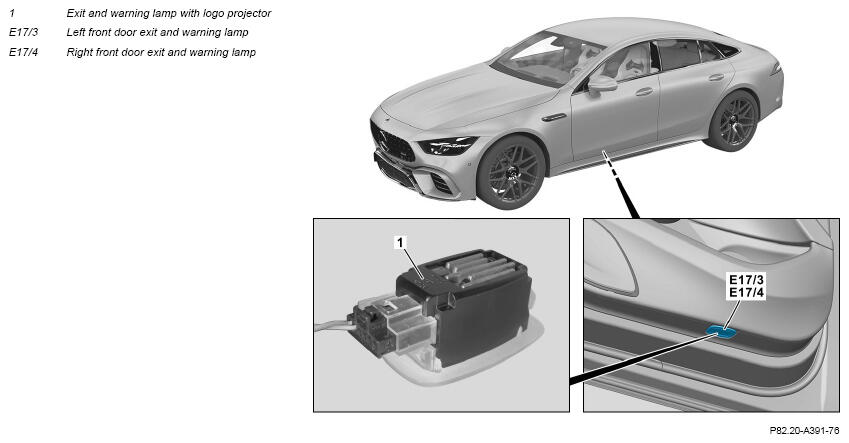

4	Install exit and warning lamp with logo projector (1) on right and left.		AZ82.20-P-0020-04C
		If the entrance and exit illumination on the overhead control panel control unit is switched on, the exit and warning lamp with logo projector (1) lights up as soon as it is connected to the vehicle wiring harness. The heat sink fitted to the exit and warning lamp with logo projector (1) gets very hot.
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
	Update Vehicle Documentation (VeDoc)
5	Attach note "Exit and warning lamp with logo projector retrofitted as per AZ82.20-P-0020MNI" under field organization texts to DG 72 and DG 82.
	Check
6	Perform function test.	The entry and exit illumination on overhead control panel control unit must be switched on.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see Xentry Portal Parts Information)	Parts kit for exit and warning lamps with logo projector	1
