Check Setting Of High Beam - AP82.10-P-8260-02J

Model 290

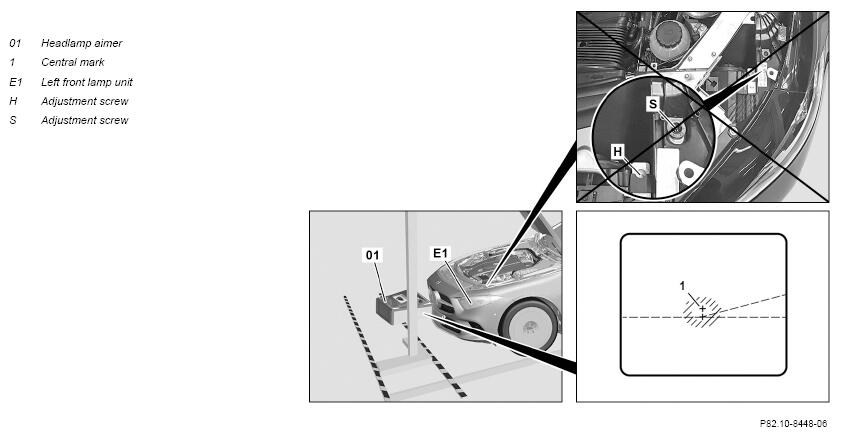

Shown on model 257 with ECE version of headlamp

Courtesy of MERCEDES-BENZ USA

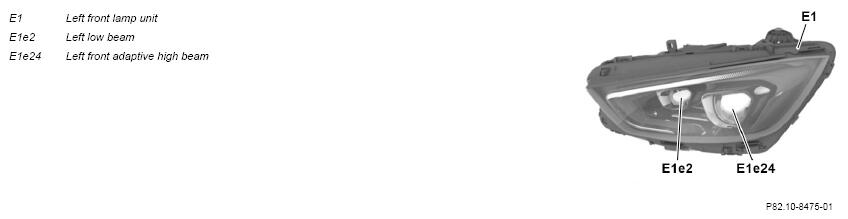

Dynamic LED headlamp, shown on model 290

Courtesy of MERCEDES-BENZ USA

1. Align headlamp adjuster (01) parallel to the vehicle level with the left high beam (E1e1) or the front left adaptive high beam (E1e24) in the front left lamp unit (E1).

   Make sure that the headlamp adjuster (01) is aligned in front of the left high beam (E1e1) or the front left adaptive high beam (E1e24) and not in front of the left low beam (E1e2). Otherwise it is possible that the high beam will not be correctly adjusted.

2. Check setting of high beam.

Do not perform any correction to headlamp adjustment screws (H, S).

Otherwise, the previously adjusted low beams will be misadjusted.

The center of the light beam must be positioned on the central mark (1) in the headlamp adjuster (01).

If high beam setting is not correct,

↓

rectify the problems.

After obtaining special order.
