Rear Mobile Phone Cradle Control Unit, Component Description - GF82.70-P-0202FR

Model 290 up to model year 2021 with code 898 (Wireless telephone charging in rear passenger compartment)

Shown on model 290.6

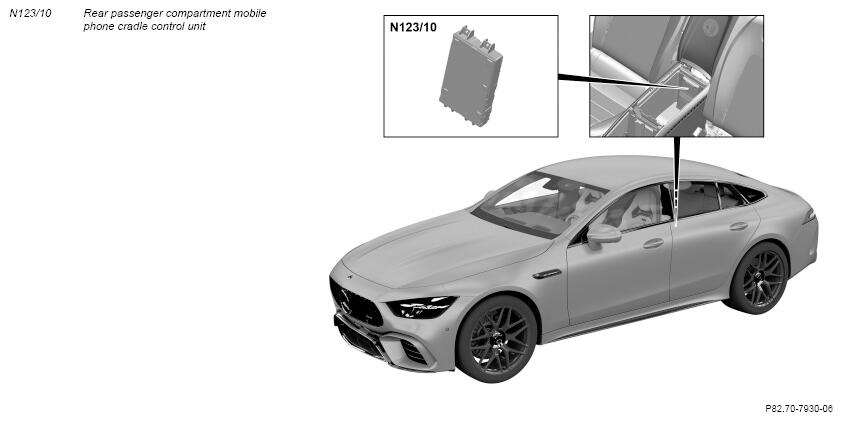

Fig 1: Rear Mobile Phone Cradle Control Unit Components Location - Model 290.6 Up To Model Year 2021 With Code 898

Courtesy of MERCEDES-BENZ USA

Location

The rear passenger compartment mobile phone cradle control unit is located in the stowage compartment under the rear armrest.

Tasks

The rear mobile phone cradle control unit is responsible for the following:

• Inductive charging of mobile phone (Qi standard)
• Reception of power supply over circuit 30t and circuit 31
• Communication with head unit (A26/17) via the telematics CAN (CAN A)
