Remove/Install Rear Door Lock - AR72.12-P-2511FR

Model 257, 290

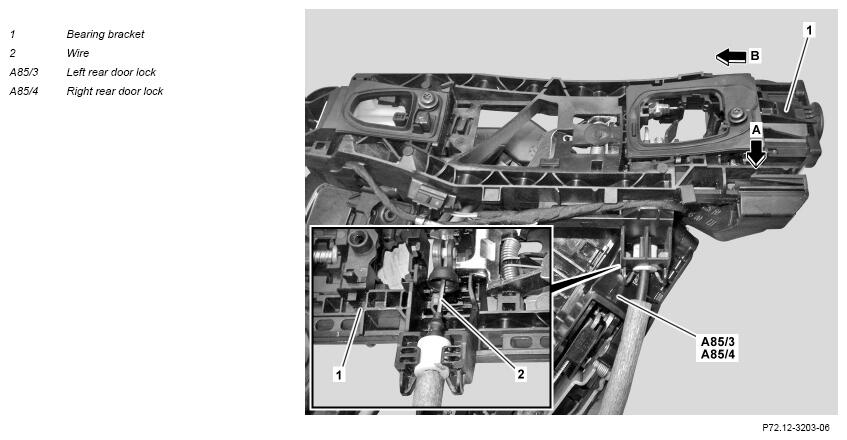

Shown on left rear door lock (A85/3)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

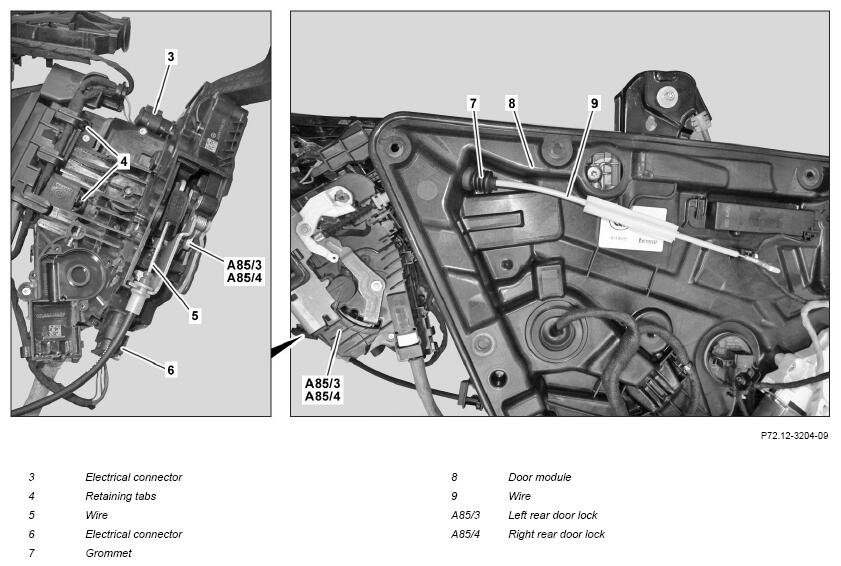

Shown on left rear door lock (A853) with code 883 (Power closing function)

	Remove/install
1	Remove door module (8).		AR72.12-P-0103FR
2	Release retaining tab (arrow A) and push down bearing bracket (1) of rear door lock (A853, A85/4) (arrow B).
3	Unhook wire (2) at bearing bracket (1).
4	Unhook wire (5) at rear door lock (A853, A85/4).	Model 257, 290 with code 883 (Power closing)
5	Disconnect electrical connectors (3, 6).
6	Press grommet (7) out of door module (8).
7	Release retaining tabs (4).
8	Remove rear door lock (A853, A85/4) and pull wire (9) out of door module (8).
9	Install in the reverse order.
