Remove/Install Front Door Lock - AR72.10-P-4011FR

Model 257, 290

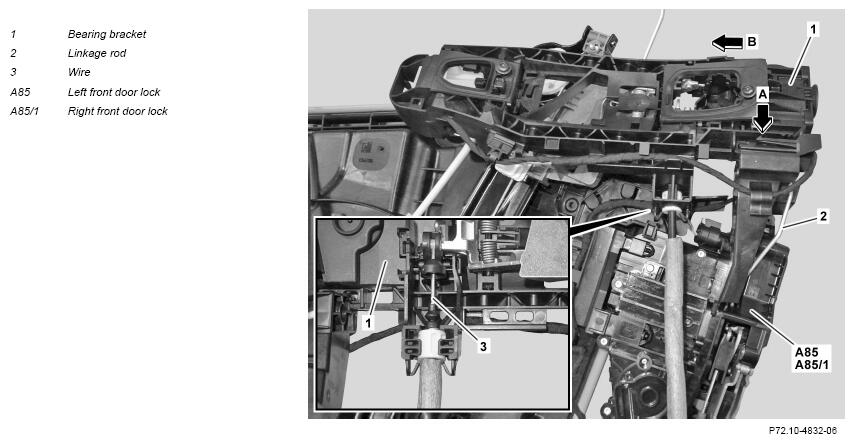

Shown on left front door lock (A85)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

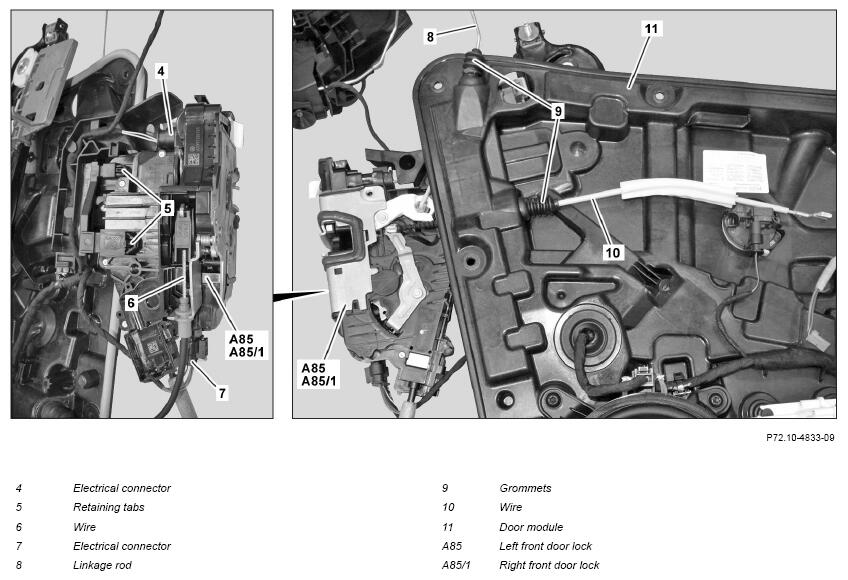

Shown on left front door lock (A85) with code 883 (Power closing function)

	Remove/install
1	Remove door module (11).		AR72.10-P-0900FR
2	Release retaining tab (arrow A) and push down bearing bracket (1) of front door lock (A85, A85/1) (arrow B).
3	Unhook linkage (2) at front door lock (A85, A85/1).
4	Unhook wire (3) at bearing bracket (1).
5	Unhook wire (6) at front door lock (A85, A85/1).	Model 257, 290 with code 883 (Power closing)
6	Disconnect electrical connectors (4, 7).
7	Press grommets (9) out of door module (11).
8	Release retaining tabs (5).
9	Remove front door lock (A85, A85/1) and pull linkage (8) and wire (10) out of door module (11).
10	Install in the reverse order.
