Remove/Install Seat Occupancy Recognition Sensor - AR91.60-P-0720FR
Model 257, 290
with code U10 (Front passenger seat with weight sensor)
MODIFICATION NOTES
| 16.01.2024 | A repair can only be carried out through complete installation of a service kit (consisting of seat cushion cover, seat cushion padding and sensor mat (1)). | Operation step 1 |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove the seat cushion padding from the front passenger seat. | Model 290 with code 555 (AMG-Performance Seat) with code U10 (Front passenger seat with weight sensor) |
AR91.10-P-5040FRX |
| Model 257 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code U10 (Front passenger seat with weight sensor) Model 290 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code U10 (Front passenger seat with weight sensor) except code 555 (AMG-Performance Seat) |
AR91.10-P-5040FRA | ||
| Model 257 with code U10 (Front passenger seat with weight sensor) except code 275 (Memory Package (driver's seat, steering column and mirror)) Model 290 with code U10 (Front passenger seat with weight sensor) except code 275 (Memory Package (driver's seat, steering column and mirror)) except code 555 (AMG-Performance Seat) |
AR91.10-P-5040FR | ||
with code U10 (Front passenger seat with weight sensor) except code 555 (AMG-Performance Seat) |
|||
It is not permissible to replace the following components of the front passenger seat individually:
A repair can only be carried out through complete installation of a service kit (consisting of seat cushion cover, seat cushion padding and sensor mat (1)). This is a closed safety system that has been calibrated in advance. |
|||

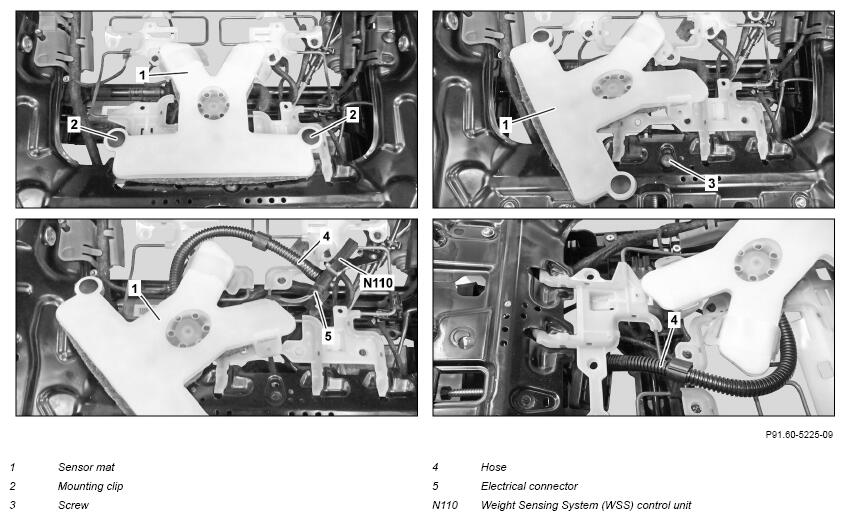

| 2 | Remove retaining clips (2). | ||
| 3 | Place sensor mat (1) to one side. | ||
| 4 | Remove bolt (3). | ||
| 5 | Unclip hose (4) from seat frame base. | ||
| 6 | Guide sensor mat (1) with Weight Sensing System (WSS) control unit (N110) through the seat frame base. | Note routing of hose (4) between sensor mat (1) and the Weight Sensing System (WSS) control unit (N110). Malfunctions can occur otherwise. |
|
| 7 | Disconnect electrical connector (5). | ||
| 8 | Remove sensor mat (1) with Weight Sensing System (WSS) control unit (N110). | ||
| 9 | Install in the reverse order. | ||
| Initial startup | |||
| 10 | Carry out commissioning of Weight Sensing System (WSS). | ||
| AD00.00-P-2000-06FR | |||
| Fig 1 |
