Remove/Install Rear Side Airbag - AR91.60-P-0694FR
Model 257, 290
with code 293 (Side airbag in rear left and right)

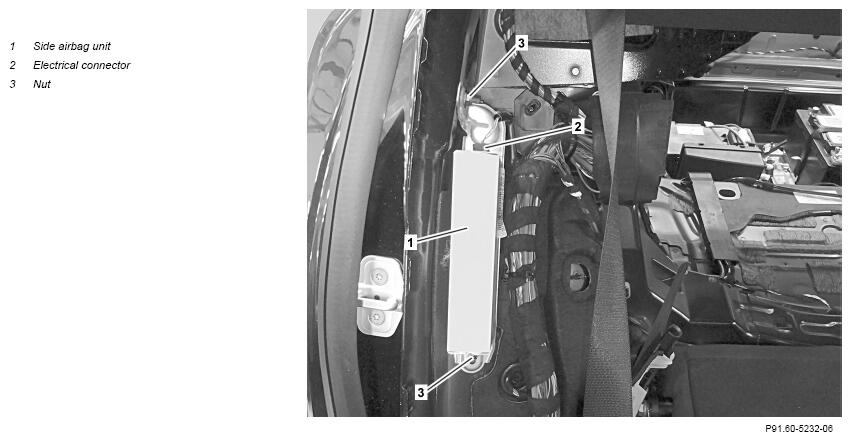

Shown on model 257 on the right side of the vehicle
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove rear passenger compartment side trim. | AR68.30-P-4780FR | |
| 2 | Detach ground line of on-board electrical system battery. | AR54.10-P-0003FR | |
| 3 | Release and disconnect electrical connector (2) at side airbag unit (1). | ||
| Fig 2 | |||
| 4 | Unscrew nuts (3). | *BA91.60-P-1005-01O | |
| 5 | Remove side airbag unit (1). | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | When replacing the side airbag unit (1). | |
| AD00.00-P-2000-06FR |
AIRBAG
| Number | Designation | Model 257 | Model 290 | |
|---|---|---|---|---|
| BA91.60-P-1005-01O | Nut/screw, rear side airbag unit to body | Nm | 6 | 6 |
